Description

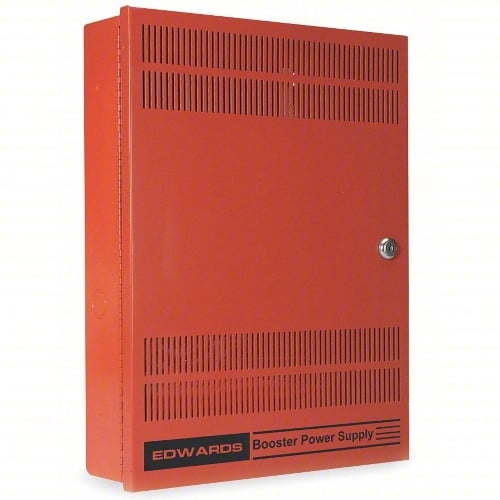

The Edwards BPS6A Remote Booster Power Supply is a self-contained 24 VDC, 6.5 A power extender for fire alarm, emergency communication, security, and access control systems. It expands NAC capacity and auxiliary power with supervised Class A/B outputs and an integral battery charger. Designed for dependable notification and accessory loads, the BPS6A simplifies distributed power in new builds and retrofits.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Edwards (EST) |
| Category |
Fire Safety |
| Part Number |
BPS6A |
| Subcategory |
Remote Booster Power Supplies |
| Output Rating |
6.5 A total @ 24 VDC (special application circuits) |
| Output Circuits |
4 × NAC/AUX circuits: Class B or Class A (field-selectable) |
| Per-Circuit Limit |
3.0 A max per NAC/AUX circuit (PF 0.35) |
| Voltage Range (NAC) |
~19.1 to 26.4 VDC (regulated/filtered) |
| Voltage Range (AUX) |
~19.0 to 26.48 VDC (regulated/filtered) |
| Sense (Trigger) Inputs |
6 to 45 VDC (FWR or unfiltered DC); 12/24 VDC compatible |
| Sync Capability |
Pass or generate Genesis strobe synchronization |
| Trouble Relay |
Form C, 1 A @ 30 VDC (configurable common trouble / AC fail) |
| Battery Charger |
Dual rates: ~1.2 A (jumper cut) or ~2.1 A (jumper intact) |
| Battery Capacity |
6.5–24 Ah supported (10 Ah max inside enclosure; larger via BC-1/BC-2) |
| Wiring |
18–12 AWG (0.75–2.5 mm²); UL NAC EOL 15 kΩ (EOL-15) |
| Indicators |
AC, NAC1–4, BAT, GND fault LEDs; per-circuit supervision |
| Operating Temperature |
32–120°F (0–49°C); 0–93% RH, non-condensing |
| AC Line Options |
120 VAC / 230 VAC, 50/60 Hz (model dependent) |
| Enclosure Size |
~17 × 8 × 5 in (surface or semiflush mount) |
| Applications |
NAC expansion, auxiliary/regulation power, access control, security |
| Materials/Build |
Keyed lockable steel cabinet; optional tamper switch |
| Weight |
6 lbs |
Information About BPS6A
The BPS6A is a 6.5-amp model in Edwards’ BPS series of booster power supplies engineered for life safety and ECS/MNS applications. It provides four independently supervised NAC/AUX circuits (Class B or Class A) and two sense inputs for activation from an FACP or option modules. Built-in features include strobe synchronization for Genesis appliances, ground-fault monitoring, and configurable trouble relay behavior. A locking steel enclosure houses electronics and batteries, supporting on-board charging and straightforward field configuration via jumpers and DIP switches.
Key Features:
- 6.5 A Output Capacity: Delivers high current for notification appliances and system peripherals.
- Four Supervised Circuits: Configure as four Class B or two Class A NACs (field-selectable).
- Strobe Sync Support: Passes or generates synchronization for Genesis series strobes.
- Flexible Activation: Trigger from 12/24 VDC sense inputs or Edwards option modules.
- Integrated Battery Charging: Dual charging rates with on-board supervision and fault reporting.
- Comprehensive Diagnostics: Per-circuit trouble LEDs plus common trouble relay.
- Robust Enclosure: Keyed, lockable steel cabinet; supports internal or external batteries.
The BPS6A delivers the reliability and precision required for expanding NAC power, synchronized notification, and regulated 24 VDC distribution in life-safety systems.
