Description

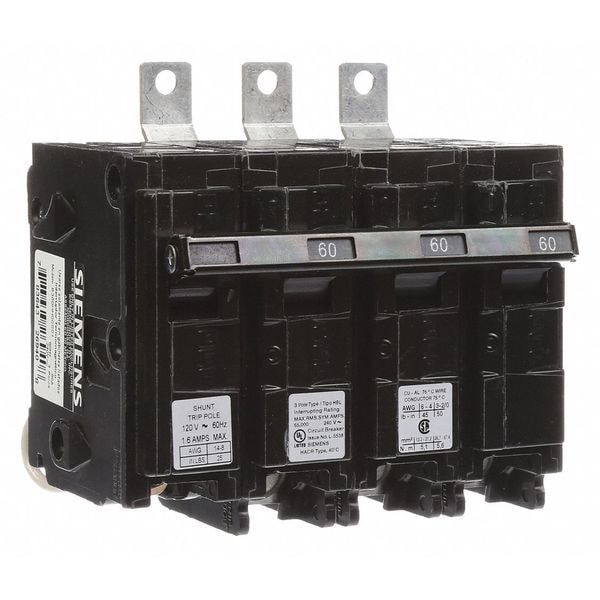

The Siemens B360HH00S01 is a three-pole molded case circuit breaker engineered for dependable circuit protection in commercial and industrial electrical systems. Rated at 60 amps and 240 volts, this BL Series HBL-type breaker offers a high interrupting capacity of 65kA @ 240V, ensuring safety and reliability under high fault conditions. Designed with a bolt-on connection and thermal magnetic trip protection, it combines durability and performance for demanding power distribution environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Siemens |
| Category |
Circuit Protection |
| Part Number |
B360HH00S01 |
| Subcategory |
Molded Case Circuit Breaker |
| Series |
BL Series |
| Type |
HBL |
| Voltage Rating |
240V AC |
| Amperage Rating |
60A |
| Poles |
3 |
| Phase |
3-Phase |
| Interrupting Capacity (AIC) |
65kA @ 240V |
| Trip Type |
Thermal Magnetic |
| Protection Functions |
LI – Long-Time and Instantaneous |
| Connection Type |
Bolt-On |
| Frame Size |
125A / HBL |
| Terminal Connection |
Lug |
| Wire Range |
8 AWG–4 AWG (Al), 6 AWG (Cu) |
| Breaker Type |
Shunt Trip (120V) |
| Panel Compatibility |
P1 Panelboards |
| Certifications |
UL Listed, CSA Certified, HACR Rated |
| Dimensions |
4 in x 3 in x 3 in |
| Manufacturer |
Siemens Industry, Inc. |
| Weight |
1.41 lbs |
Information About B360HH00S01

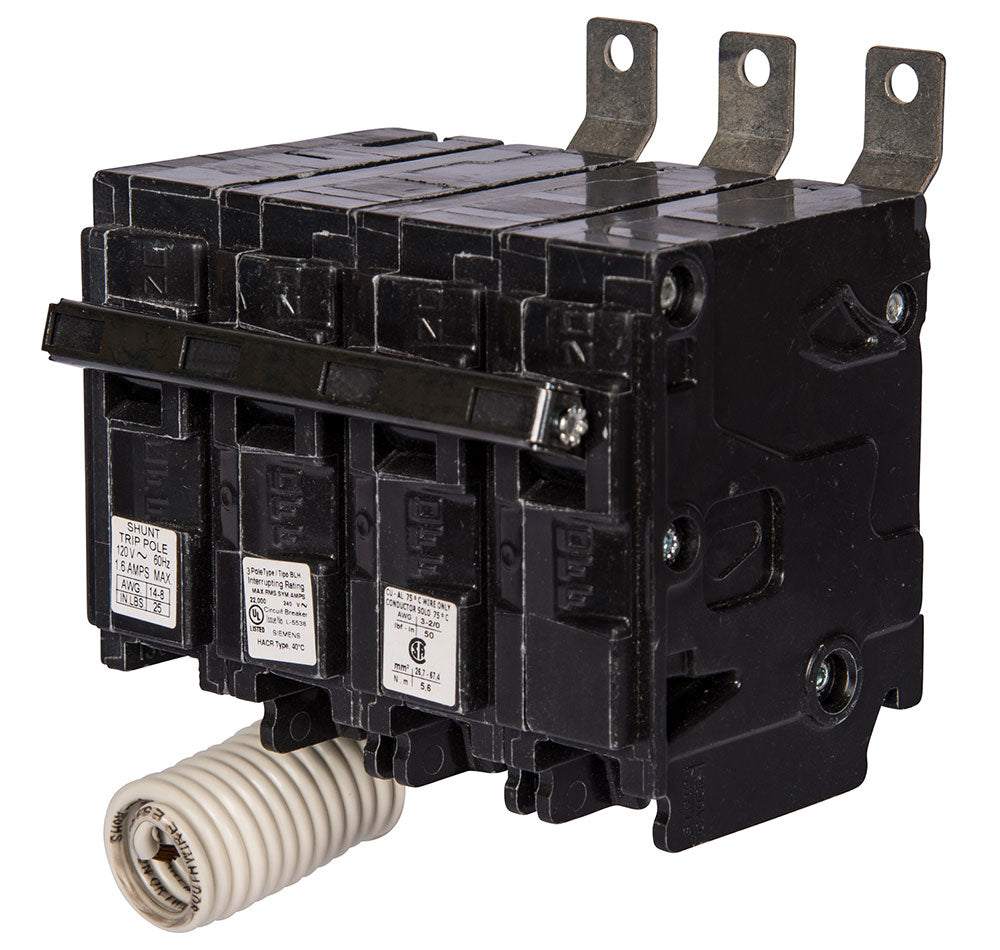

The B360HH00S01 is a member of Siemens’ BL Series molded case circuit breakers, built for compatibility with P1 panelboards and similar systems. It provides long-time and instantaneous (LI) protection, supporting both overload and short-circuit conditions. The breaker includes a 120V shunt trip, enabling remote tripping capability for enhanced system control and safety. Constructed with a 125A HBL frame size and bolt-on terminals, the unit ensures secure installation and long-term operational stability across a wide range of electrical applications.
Key Features:
- High Interrupting Capacity: Rated at 65kA @ 240V for superior fault protection.
- Thermal Magnetic Trip: Combines overload (thermal) and short-circuit (magnetic) protection for reliable operation.
- 3-Pole Configuration: Supports three-phase power distribution systems.
- Shunt Trip Feature: Includes a 120V shunt trip for remote control and emergency shutdown.
- Durable Bolt-On Connection: Ensures a secure and vibration-resistant connection to panelboards.
- Compact Design: Fits standard Siemens P1 panelboards for easy integration.
- Certified Quality: UL Listed, CSA Certified, and HACR rated for safety compliance.
- Wide Wire Range: Supports 8 AWG–4 AWG (Al) and 6 AWG (Cu) conductors.
The B360HH00S01 delivers the reliability and precision required for modern electrical protection in industrial and commercial power distribution systems.
