Description

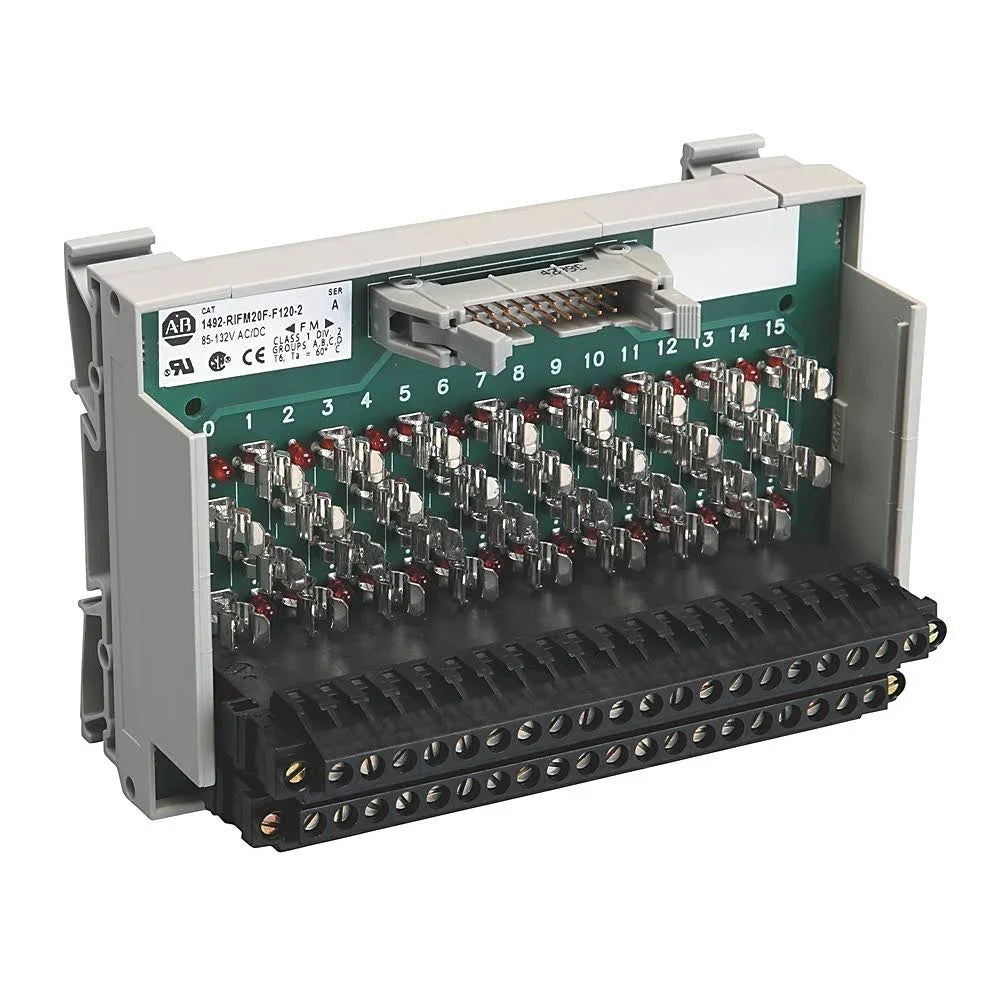

The Allen-Bradley 1492-IFM20F-F120A-2 is a 20-point fusible digital interface module designed to simplify wiring between control systems and I/O devices. It features built-in fuse protection, input indicators, and a fixed terminal block for secure and organized signal connections.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley
|
| Category |
|
| Part Number |
1492-IFM20F-F120A-2 |
| Subcatecory |
Circuit Breaker Accessory
|
| Total Channels |
20 |
| Per-Circuit Current |
2 A |
| Module Current Limit |
12 A |
| Voltage Range |
85–132 VAC/VDC |
| Fuse Type |
5 x 20 mm |
| Indicators |
Blown Fuse Indicators (per channel) |
| Connection Type |
20-Pin Fixed Terminal Block |
| Extra Terminals |
Yes (per input) |
| Operating Temperature |
0°C to 60°C |
| Certifications |
UL, CE, CCC, NRTL, CUL |
| Weight |
0.8100 lb |
Information About 1492-IFM20F-F120A-2
The 1492-IFM20F-F120A-2 provides 20 digital input channels, each fused individually at 2 A with a total module capacity of 12 A. Designed to operate at 85–132 VAC/VDC, the module supports 5 x 20 mm fuse clips and includes blown fuse indicators for quick diagnostics. It connects via a 20-pin fixed terminal block and offers additional terminals per input channel to ease wiring. Certified to CE, UL, CUL, NRTL, and CCC standards, it operates reliably in temperatures from 0°C to 60°C.
Key Features:
- 20 Fused Channels: supports 2 A per circuit and 12 A total module capacity for safe digital input distribution.
- Voltage Range: operates across 85–132 VAC or VDC, suitable for both AC and DC control systems.
- Blown Fuse Indicators: provides per-channel visual alerts for fast troubleshooting of open fuses.
- Fixed Terminal Block: includes 20-pin screw-type connections for reliable wiring and maintenance.
- Extra Input Terminals: allows flexible wiring with additional input terminals per channel.
- Certified Performance: meets UL, CE, CCC, NRTL, and CUL requirements for industrial applications.
The 1492-IFM20F-F120A-2 delivers compact, fuse-protected signal interfacing with diagnostic capability and reliable terminal wiring for digital control systems.
