Description

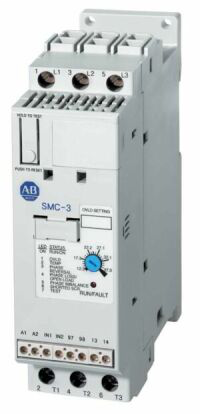

The Allen-Bradley 150-C16NBD is a Smart Motor Controller (SMC) designed to provide smooth motor starting and stopping while minimizing mechanical stress and electrical disturbances.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley
|
| Category |
|
| Part Number |
150-C16NBD |
| Subcatecory |
|
| Control Voltage |
100-240 VAC |
| Ampere Ratings |
16 AMP |
| Input line Voltage |
200-460 VAC |
| Phase |
3 Phase |
| Frequency |
50/60 Hz |
| Enclosure Type |
Open Enclosure |
| Weight |
2.01 lbs |
Information About 150-C16NBD
The 150-C16NBD is a solid-state soft starter from the Allen-Bradley SMC-3 series, designed to provide smooth motor starting and stopping while reducing mechanical stress and electrical peak currents in industrial automation systems.
Key Features:
- Type: Solid-State Soft Starter
- Rated Current: 16 A
- Motor Power: Up to 7.5 kW (10 HP) at 460V AC
- Line Voltage: 200–480V AC, 3-phase, 50/60 Hz
- Control Voltage: 100–240V AC
- Enclosure Type: Open type
- Starting Duty: 350% of full load current
- Start/Stop Modes: Soft start, current limit, kickstart, coast-to-rest, soft stop
- Motor Protection: Integrated motor overload protection, single-phase detection, SCR bypass contactor, and fault diagnostics
- Control Interface: DIP switches for configuration and LED indicators for status monitoring
- Installation: Compact design for easy panel integration
- Operating Temperature: Typically -20°C to +60°C
- Applications: Suitable for pumps, conveyors, fans, compressors, chillers, and HVAC systems
- Compliance: Meets applicable industrial safety and performance standards
The 150-C16NBD offers reliable and efficient motor control, enhancing equipment lifespan and reducing maintenance needs in demanding industrial environments.
