Description

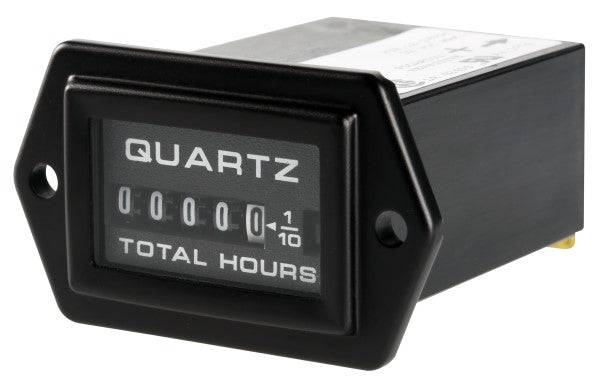

The Honeywell 85024-11 is an electromechanical hour meter designed to record operating time in industrial and electrical systems. This device counts elapsed hours using a mechanical decade wheel display and operates across a wide DC voltage range. It is commonly used for maintenance tracking and equipment runtime monitoring.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
Test Equipment |
| Part Number |
85024-11 |
| Subcategory |
Time/Count Totalizer |
| Product Type |
Hour Meter |
| Series |
85000 |
| Display Type |
Mechanical decade wheel |
| Number of Digits |
5 |
| Time Format |
9999.9 hours |
| Operating Mode |
Up-count |
| Supply Voltage |
5–110 VDC |
| Mounting Type |
Panel mount |
| Termination Style |
Quick connect 0.250 in (6.3 mm) |
| Ingress Protection |
IP66 |
| Country of Manufacture |
Mexico |
| Weight |
2 oz |
Information About 85024-11
The 85024-11 is a Honeywell hour meter from the 85000 series, engineered for reliable time accumulation in control panels and machinery. It features a mechanical decade wheel mechanism that advances continuously during powered operation. The unit is designed for panel mounting and supports quick-connect terminals for straightforward electrical integration. Its sealed construction provides protection against dust and water exposure in industrial environments.
Key Features:
-
Hour meter function: Records cumulative operating time of equipment
-
Mechanical decade wheel display: Provides clear and permanent time indication
-
Wide DC supply range: Supports operation from 5 to 110 VDC
-
Panel mount design: Enables integration into control panels and enclosures
-
Quick-connect terminals: Allows fast and secure electrical connections
-
IP66 enclosure rating: Protects against dust ingress and water exposure
-
Continuous count operation: Tracks runtime without reset functionality
The 85024-11 delivers the reliability and accuracy required for industrial runtime tracking and maintenance scheduling.
