Description

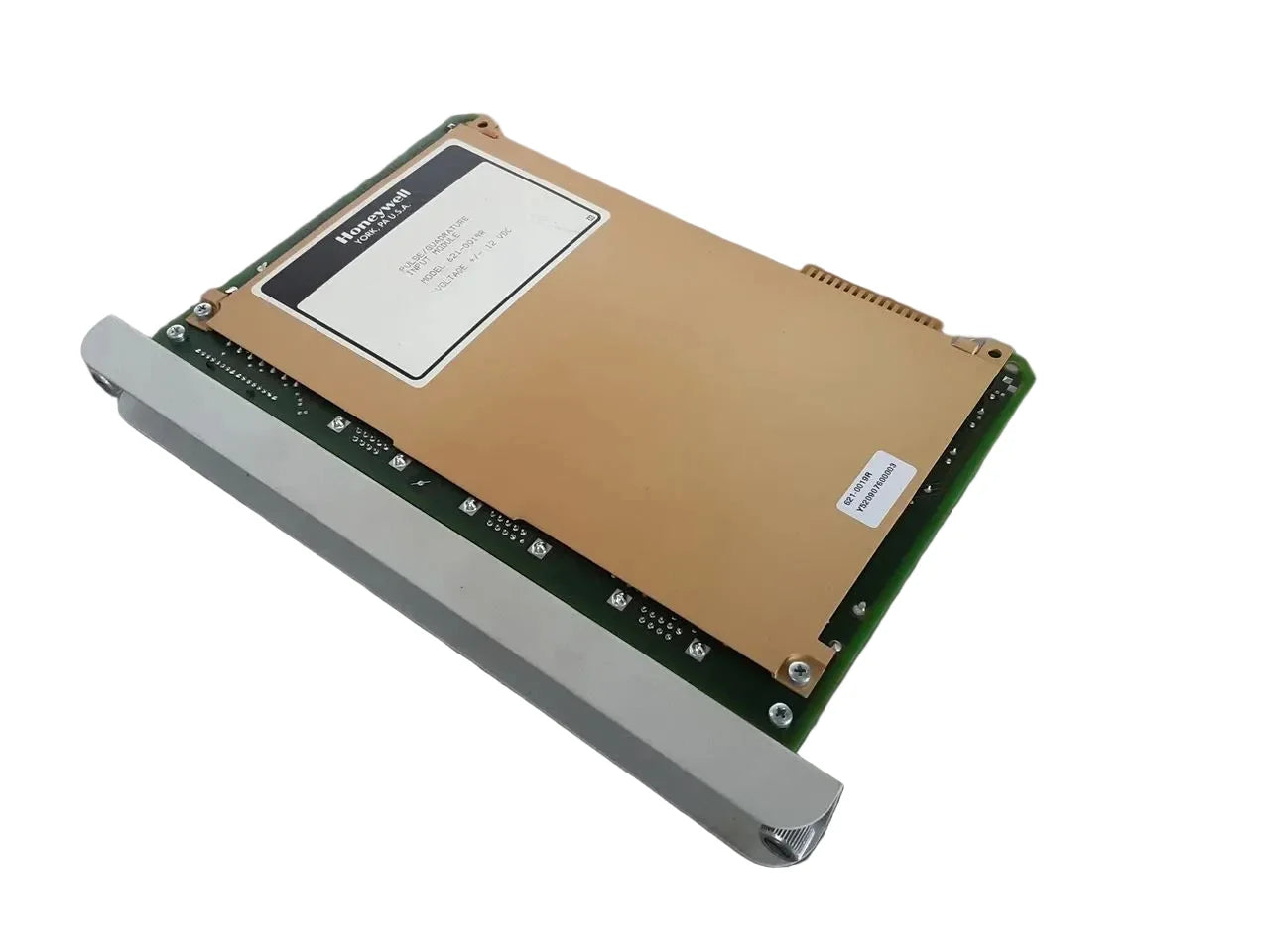

The Honeywell 621-0019R is a pulse/quadrature input module designed for industrial PLC and automation systems. It processes encoder and pulse signals using a ±12 VDC interface across three dedicated channels. This module is applied in motion monitoring and position feedback applications requiring accurate high-speed signal interpretation.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
PLCs and Accessories |
| Part Number |
621-0019R |
| Subcategory |
PLC Expansion Modules |
| Product Type |
Pulse/Quadrature Input Module (P/QIM) |
| Number of Channels |
3 Channels |
| Input Signal Type |
Pulse / Quadrature |
| Input Voltage |
±12 VDC |
| Application |
Motion & Position Feedback |
| Installation Type |
Rack-Mounted PLC Module |
| Manufacturer Status |
Discontinued by Manufacturer |
| Top Category |
PLCs & HMIs |
| Warranty Note |
Factory warranty may not apply |
| Weight |
0.63 kg |
Information About 621-0019R
The 621-0019R is a Honeywell PLC expansion module engineered for pulse and quadrature input processing in industrial control environments. Identified as a P/QIM (Pulse/Quadrature Input Module), it is designed to interface with encoders and similar feedback devices operating on ±12 VDC signals. The module supports three independent input channels for monitoring rotational direction, speed, and positional data within automated systems. As a discontinued manufacturer component, it is typically used for servicing and maintaining installed Honeywell PLC-based motion control systems.
Key Features:
- Pulse/Quadrature Input Capability: Processes encoder signals for motion and position tracking.
- Three-Channel Design: Supports monitoring of up to three independent input channels.
- ±12 VDC Signal Interface: Compatible with standard encoder voltage levels.
- P/QIM Module Classification: Identified as a dedicated Pulse/Quadrature Input Module.
- PLC Expansion Integration: Installs within Honeywell PLC racks as an add-on module.
- Motion Control Support: Suitable for speed, direction, and positional feedback systems.
- Industrial Automation Application: Designed for manufacturing and process control environments.
- Discontinued OEM Component: Available for lifecycle support of legacy PLC systems.
The 621-0019R delivers the reliability and precision required for pulse and quadrature signal acquisition in industrial motion control systems.
