Description

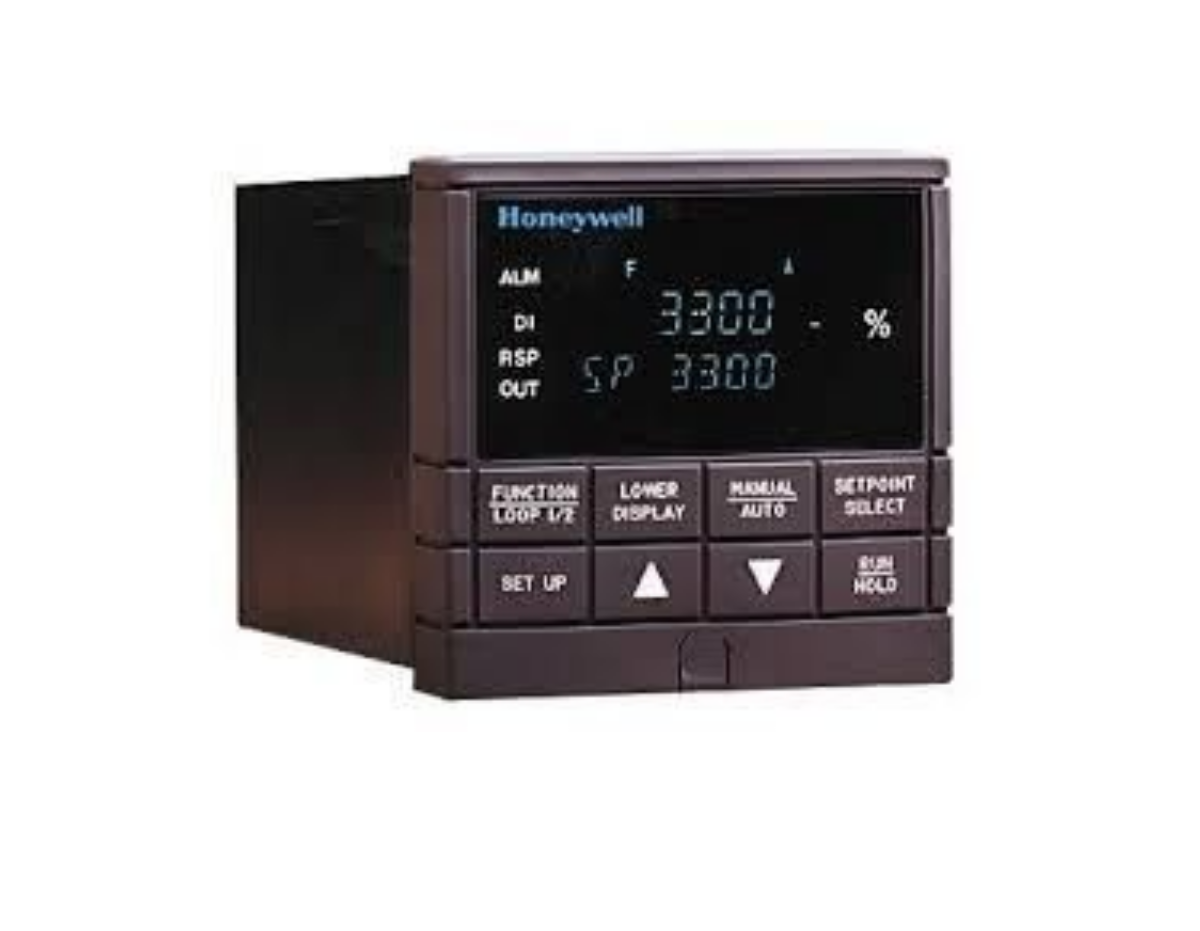

The Honeywell DC200H-2-000-100000-0 is a high-limit temperature controller that ensures precise thermal regulation with dependable protection features. It supports thermocouple and RTD inputs, and includes dual alarm relays for enhanced safety and control feedback.

Technical Specifications

Information About Dc200H-2-000-100000-0

The DC200H-2-000-100000-0 is part of Honeywell’s DC200H series of digital temperature controllers, specifically configured for high-limit protection. The unit operates on 120 VAC at 60 Hz with a power consumption of 6 VA, making it well-suited for various industrial and laboratory heating applications. Supporting both thermocouple (T/C) and resistance temperature detector (RTD) inputs, it provides versatile input compatibility and robust over-temperature protection. With two alarm relays built in, the controller offers configurable alarm logic to alert or activate safety responses under preset thermal conditions.

Key Features:

• High-Limit Control: Designed to act as an over-temperature limiter, ensuring safety by interrupting operation if temperature exceeds defined limits.
• Thermocouple and RTD Input Compatibility: Supports a wide range of industrial sensors for flexible application.
• Dual Alarm Relays: Provides two independent relays for configurable over/under-temperature alarm outputs.
• Standard Power Configuration: Operates on 120 VAC, 60 Hz, drawing 6 VA—suitable for typical industrial environments.
• Compact Design: Offers space-efficient panel mounting and simple wiring.
• Reliable Safety Operation: Complies with industrial safety standards for thermal protection.
• Easy Configuration: Front-panel interface allows for quick setup and adjustment of high-limit and alarm parameters.
• Industrial Durability: Built for rugged operation in continuous-use thermal control environments.

The DC200H-2-000-100000-0 combines safety, versatility, and ease of use in a compact high-limit temperature controller.
