Description

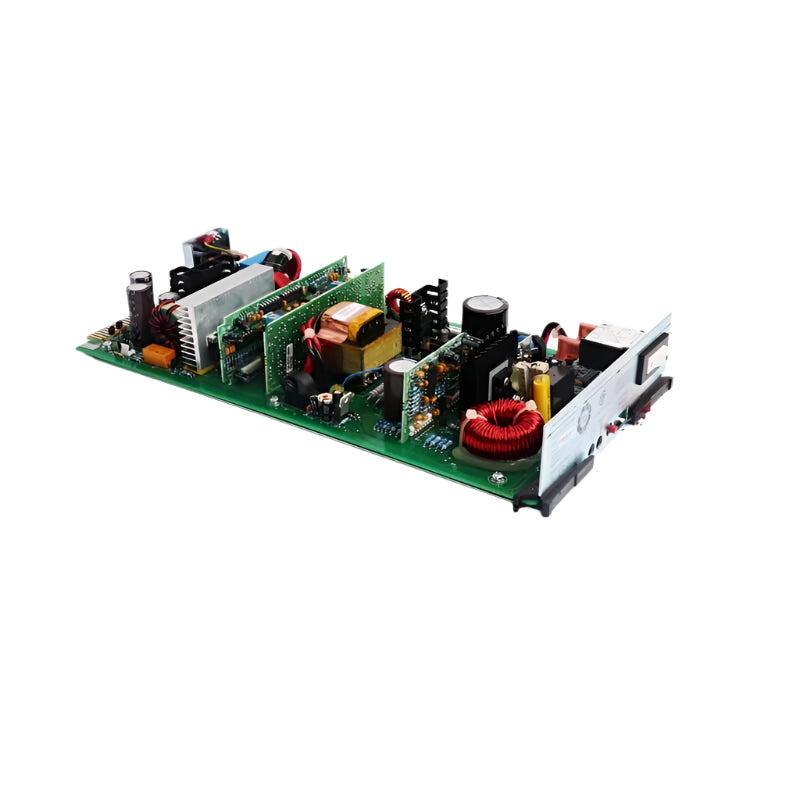

The 51196655-100 is a high-performance power supply module designed to deliver reliable and flexible voltage outputs for dual-node industrial control systems. It supports a wide input range and multiple DC output voltages to power various system components with consistent efficiency.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
|
| Part Number |
51196655-100 |
| Subcategory |
Power Supply |
| Input Voltage |
120–240 VAC |
| Input Frequency |
50/60 Hz |
| Input Current |
4 A
|
Output Voltages
|
5 VDC, 12 VDC, 27 VDC |
| Output Current |
20 A (5V), 3 A (12V), 1 A + 0.6 A (27V) |
| Total Output Power |
165 W |
| Node Support |
Dual Node |
| Module Type |
ACX633 |
| Weight |
4.25 lbs |
Information About 51196655-100
The 51196655-100 is a Honeywell ACX633 power supply module configured for dual-node applications, delivering precise voltage outputs of 5, 12, and 27 VDC. Designed with versatility in mind, it accepts input voltages from 120 to 240 VAC at 50/60 Hz with a maximum current draw of 4 amps. Its total power rating is 165 watts, enabling support for multiple load demands across different industrial equipment. With output current ratings of 20 amps at 5 VDC, 3 amps at 12 VDC, and up to 1 amp at 27 VDC, the unit ensures safe and continuous operation of critical systems.
Key Features:
- Dual-Node Architecture: Optimized to supply power to two independent nodes in a control environment, enhancing system reliability.
- Wide Input Voltage Range: Operates with both 120 and 240 VAC input sources at 50/60 Hz, ensuring compatibility with global electrical standards.
- Multiple Voltage Outputs: Supplies 5 VDC at 20 A, 12 VDC at 3 A, and 27 VDC at 1 A (plus an additional 0.6 A tap), supporting diverse component requirements.
- High Power Capacity: Rated at 165 watts total output power, enabling robust support for demanding loads in industrial systems.
- Compact & Industrial Grade: Built for long-term performance in automation panels, DCS racks, or mission-critical environments.
The 51196655-100 delivers consistent multi-voltage power distribution, making it an essential module for dual-node industrial applications.
