Description

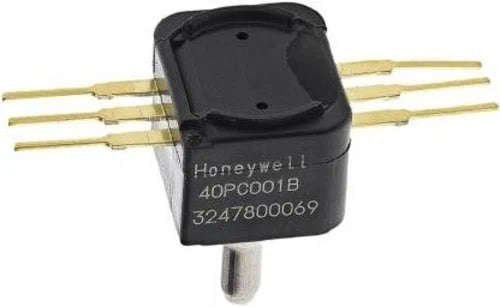

The Honeywell 40PC001B1A is a board-mount compound pressure sensor designed for low-pressure measurement in precision electronic systems. It provides an amplified analog voltage output proportional to pressure changes within a ±0.97 psi range. This sensor is engineered for integration into PCB-based assemblies requiring accurate and stable pressure monitoring.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
Sensors & Switches |
| Part Number |
40PC001B1A |
| Subcategory |
Pressure Sensor/Transducer |
| Series |
40PC |
| Pressure Type |
Compound |
| Operating Pressure |
±0.97 psi (±6.69 kPa) |
| Maximum Pressure |
±3.29 psi (±22.68 kPa) |
| Output Type |
Analog Voltage (Amplified) |
| Output Range |
2.5 V ~ 6.5 V |
| Supply Voltage |
4.75 V ~ 5.25 VDC |
| Operating Supply Current |
10 mA |
| Accuracy |
±0.8% |
| Mounting Type |
Through Hole |
| Package / Case |
6-DIP Module |
| Port Style |
Single Axial Barbless |
| Operating Temperature |
-45°C to +125°C |
| Weight |
0.21 lbs |
Information About 40PC001B1A
The 40PC001B1A is part of Honeywell’s 40PC Series, a line of amplified silicon pressure sensors intended for board-level applications. It features a compound pressure configuration capable of measuring both positive and negative pressures relative to atmospheric pressure. The device is housed in a 6-DIP module package with through-hole PC pin termination for secure PCB mounting. Designed for operation from a regulated 5 VDC supply, the sensor incorporates internal amplification to provide a conditioned analog voltage output suitable for direct interface with control or data acquisition systems.
Key Features:
-
Compound Pressure Measurement: Measures both positive and negative pressures up to ±0.97 psi (±6.69 kPa).
-
Amplified Analog Output: Provides a conditioned voltage output for simplified signal processing.
-
High Accuracy Design: Delivers precise pressure sensing suitable for instrumentation applications.
-
Wide Operating Temperature Range: Operates reliably from -45°C to +125°C.
-
Through-Hole Mounting: 6-DIP package with PC pins for secure PCB installation.
-
5 VDC Supply Operation: Designed for use with regulated 4.75 V to 5.25 V supply.
-
Barbless Axial Port: Single axial pressure port compatible with tubing connections.
The 40PC001B1A delivers the reliability and precision required for low-pressure monitoring in electronic control and instrumentation systems.
