Description

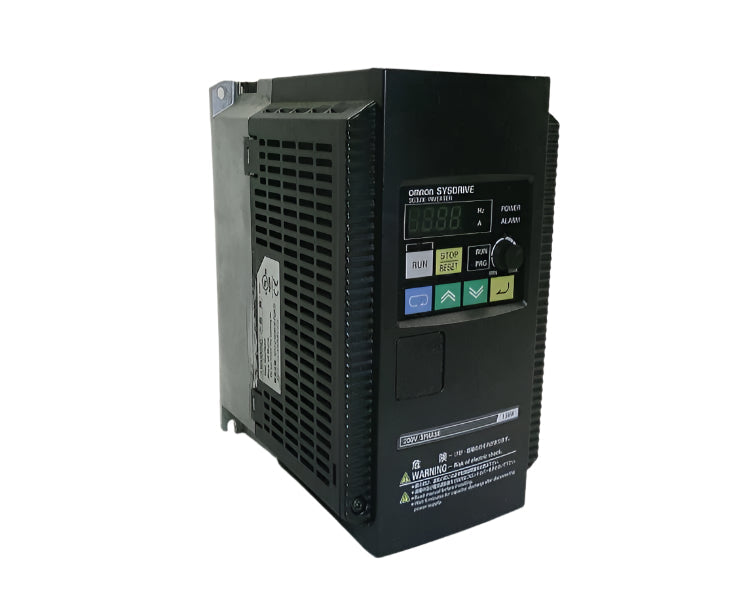

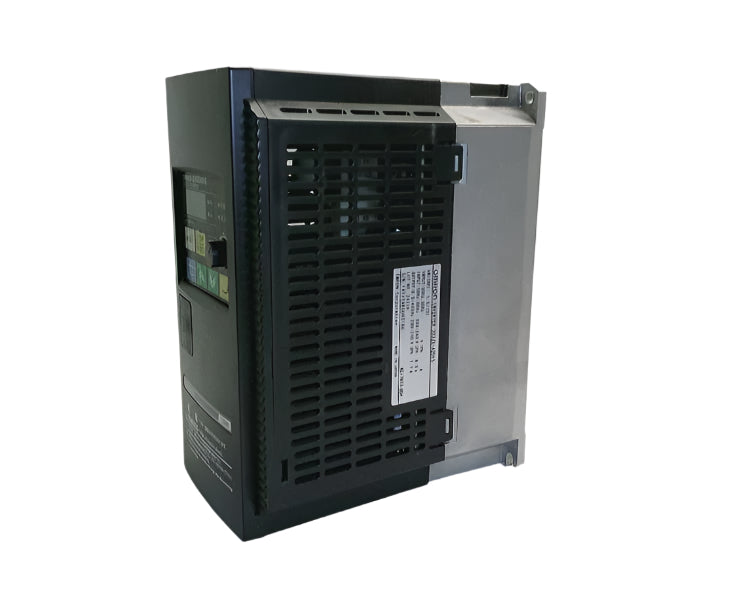

The 3G3JX‑A2015 is a compact variable frequency drive (VFD) from Omron’s JX series (Sysdrive), designed for controlling AC induction motors with reliable performance in general-purpose industrial applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
|
| Part Number |
3G3JX-A2015 |
| Subcategory |
Drives |
| Series |
JX Frequency Inverters |
| Input Supply Voltage |
200 ~ 240 VAC (3-phase) |
| Output Voltage |
240 V AC |
| Output Current |
7.1 A |
| Power Rating |
1.5 kW |
| Horsepower (HP) |
2 HP |
| Motor Phases Supported |
3-phase |
| Frequency Output Range |
0.5 – 400 Hz |
| Control Method |
V/f Control |
Overload Capacity
|
150% of rated output for 60 seconds |
Protection Functions
|
Overcurrent, Overvoltage, Short-circuit, Overheat, Undervoltage |
| Communications Interface |
RS-485 Modbus RTU |
| Enclosure Rating |
IP20 |
| Mounting Type |
Chassis Mount |
| Integrated Display/Keypad |
Yes |
| Weight |
4.48 lbs |
Information About 3G3JX-A2015
The 3G3JX-A2015 is a compact variable frequency drive (VFD) from Omron’s Sysdrive JX series, designed for controlling 3-phase induction motors in general-purpose industrial applications. Providing reliable speed control and motor protection, it supports flexible installation in a variety of machinery setups. With simple V/f control, built-in safety features, and easy network integration, the 3G3JX-A2015 is ideal for conveyor systems, pumps, fans, and automated equipment requiring stable motor operation.
Key Features:
- Variable Frequency Drive (VFD): Provides precise speed control for 3-phase AC induction motors using voltage/frequency (V/f) control.
- 1.5 kW (2 HP) Motor Support: Delivers consistent power output for motors rated up to 1.5 kW or 2 HP.
- 200–240 V 3-Phase Supply: Operates on standard 3-phase 200–240 VAC industrial power input.
- 7.1 A Output Current: Supports motor operation with maximum output current of 7.1 A at 240 V.
- Frequency Output Range 0.5–400 Hz: Allows wide-ranging speed control from low to high RPM operation.
- Built-in Modbus RTU Communication: RS-485 interface provides simple integration with industrial networks and control systems.
- IP20-Rated Chassis Mount: Compact, space-saving design with chassis mount and integrated keypad for direct parameter programming.
- Protection Functions: Equipped with overcurrent, overvoltage, undervoltage, short-circuit, overheat, and brown-out protections for safe operation.
- Integrated Digital Keypad: Allows easy on-site parameter setup and adjustment without external tools.
- Discontinued but Supported: Though production has ended, the drive remains widely supported for maintenance and replacement in existing systems.
The 3G3JX-A2015 delivers reliable, efficient control of small-to-medium 3-phase motors in industrial settings. Its compact design, safety features, and straightforward operation make it a dependable choice for a variety of automation and machine control applications.
