Description

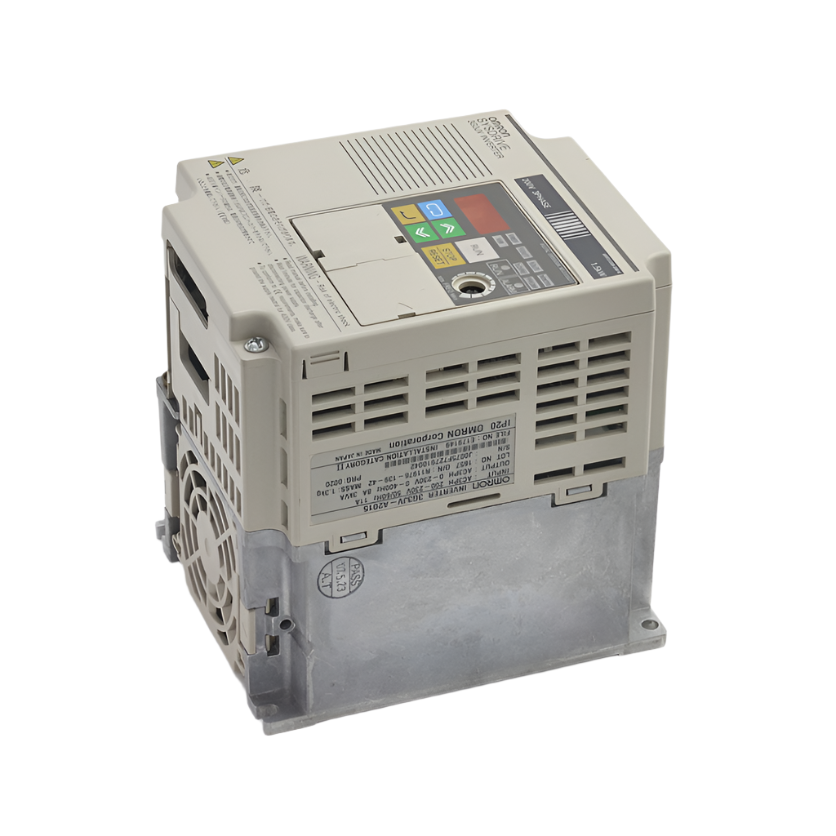

The Omron 3G3JV-A2015 is a compact inverter drive designed for three-phase motor control applications with a 2 HP output and 8 A rated current. Operating at 200–240 VAC, it delivers variable frequency output (0.1–400 Hz) for precise speed regulation and efficient drive performance.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Motor & Drive Control |
| Part Number |
3G3JV-A2015 |
| Subcategory |
Inverter Drives |
| Series |
3G3JV |
| Rated Output Current |
7.5 A |
| Rated Power |
2 HP |
| Input Voltage |
200–240 VAC, single-phase |
| Output Voltage |
0–240 VAC |
| Output Frequency Range |
0.1–400 Hz |
| Overload Capacity |
150% for 1 minute |
| Braking Torque |
20% (standard), 125% (with braking resistor) |
| Control Method |
Sinusoidal PWM |
| Accel/Decel Time |
0.1 to 999 seconds |
| Frequency Setting Resolution |
0.1 Hz |
| Safety Features |
Overcurrent, overvoltage, undervoltage, overload, ground fault |
| Cooling Method |
Forced air cooling |
| IP Rating |
IP20 |
| Operating Temperature |
-10°C to 50°C |
| Operating Humidity |
≤90% RH (non-condensing) |
| Dimensions (H × W × D) |
130 × 140 × 150 mm |
| Weight |
2.5 kg |
Information About 3G3JV-A2015
The 3G3JV-A2015 is a variable frequency drive (VFD) from Omron’s 3G3JV series, built for reliable control of three-phase motors in compact and mid-sized machinery. It supports 200–240 VAC single-phase input and generates 0–240 VAC output with a maximum frequency of 400 Hz, suitable for a wide range of industrial motor applications. The unit offers 7.5 A rated output current and can deliver up to 150% overload for one minute. It includes advanced protections like overcurrent, overvoltage, and ground fault detection, and operates effectively in ambient temperatures up to 50°C.
Key Features:
-
7.5 A Rated Output: Delivers reliable current for motors up to 2 HP under typical industrial loads.
-
Wide Frequency Output Range: Provides output from 0.1 to 400 Hz for precise speed control across applications.
-
Single-Phase 200–240 VAC Input: Compatible with standard power supplies while delivering three-phase output.
-
High Braking Torque: Offers 20% dynamic braking by default, expandable to 125% with optional resistor.
-
Robust Protection Suite: Equipped with overcurrent, over/undervoltage, overload, and ground fault protection.
-
Flexible Acceleration/Deceleration: Adjustable from 0.1 to 999 seconds to match process requirements.
-
Compact Size and IP20 Rated Housing: Measures just 130×140×150 mm with forced air cooling for reliable thermal management.
-
Durable in Harsh Conditions: Operates in up to 90% humidity and from -10°C to 50°C ambient temperatures.
The 3G3JV-A2015 delivers the reliability and precision required for variable-speed motor control in compact industrial systems and machinery.
