Description

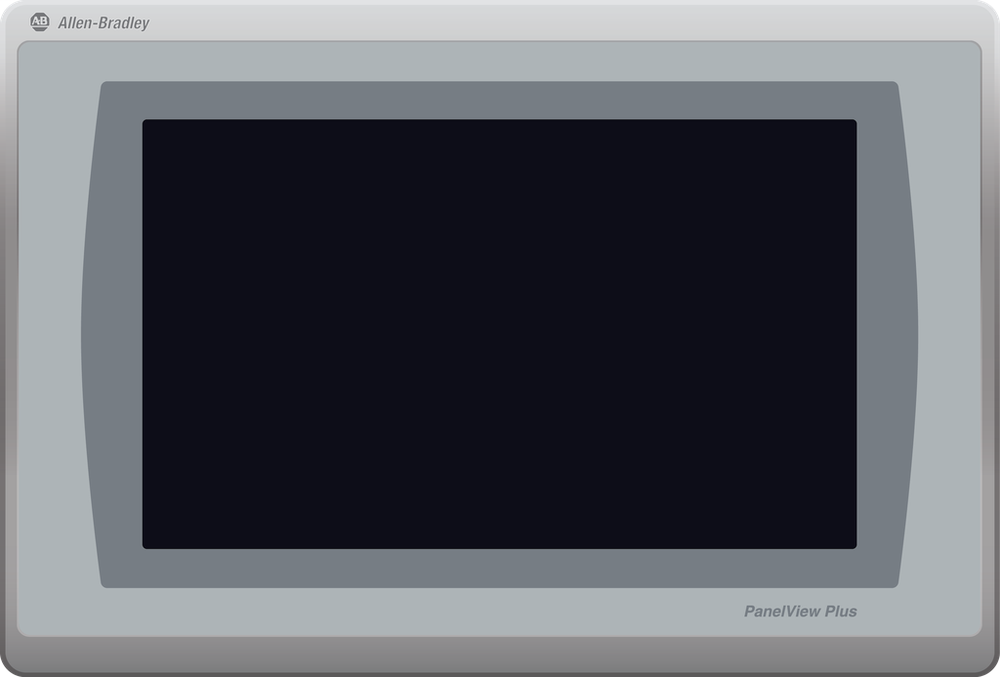

The Allen-Bradley 2711P-T9W22A9P is a PanelView Plus 7 Performance graphic terminal featuring a 9-inch widescreen color touchscreen. It supports Ethernet and USB communication, operates on 100–240V AC power, and runs FactoryTalk View ME for advanced HMI functionality.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Allen-Bradley |
|
Category
|
HMI (Human Machine Interfaces)
|
|
Part Number
|
2711P-T9W22A9P
|
| Subcatecory |
|
| Display Type |
Wide Aspect Ratio Color |
| Power Consumption |
105VA |
| Standard |
C-TICK,CCC,CE,CUL,KC,UL |
| Type |
Graphic, Two Ethernet Port Supporting DLR, Brandless, Widescreen |
| Input Voltage |
100-240 V |
| Power Rating |
105 VA |
| Temperature Rating |
0 - 55°C |
| Resolution |
196 x 118 mm (7.7 x 4.6 in.)
|
| System Memory |
1 GB RAM, 512 MB nonvolatile memory (approx. 80 MB free user memory) |
| Display Area |
196 x 118 mm (7.7 x 4.6 in.) |
| Weight |
2.43 kgs |
Information About 2711P-T9W22A9P
The Allen-Bradley 2711P-T9W22A9P is part of the PanelView Plus 7 Performance series, offering high-end HMI capabilities for advanced industrial automation systems. It is designed for demanding applications requiring reliable operator interaction, high-speed data handling, and modern touchscreen interfaces.
Key Features:
Display and Input:
-
Screen Size: 9-inch widescreen (16:9 aspect ratio)
-
Display Type: Color TFT
-
Resolution: 800 x 480 pixels (WVGA)
-
Input Method: Touchscreen (no keypad)
Performance and Power:
-
Series: PanelView Plus 7 Performance
-
Operating System: Windows CE 6.0
-
Software: FactoryTalk View Machine Edition (ME) pre-installed
-
Power Input: 100–240V AC
Communication and Connectivity:
-
Dual Ethernet ports for network redundancy or segmentation
-
Two USB host ports for peripherals (mouse, keyboard, USB drives)
-
High-speed communication with multiple controllers (up to 200 screens and 500 alarms)
Design and Mounting:
-
Panel-mounted
-
Sleek, compact form factor
-
Designed for harsh industrial environments
-
No moving parts (fanless design) for high durability
The 2711P-T9W22A9P combines modern touchscreen functionality with high-speed processing and advanced communication capabilities, making it an ideal choice for sophisticated HMI applications in smart manufacturing environments.
