Description

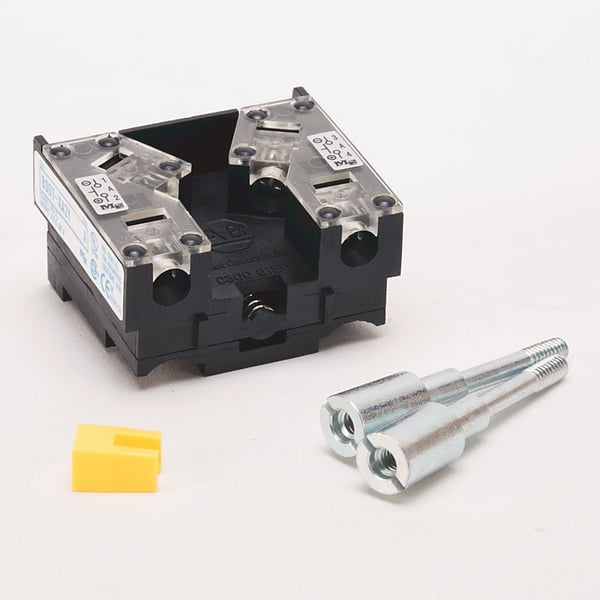

The Allen-Bradley 800T-XA4Y is a 30 mm heavy-duty contact block designed for industrial operator devices requiring a normally closed contact configuration. This part number provides reliable medium-current switching in control circuits and is built for demanding industrial environments. The 800T-XA4Y is commonly used with Allen-Bradley 800T series push buttons, selector switches, and pilot devices.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley |
| Category |
Industrial Control |
| Part Number |
800T-XA4Y |
| Subcategory |
Contact Blocks |
| Operator Size |
30 mm |
| Contact Configuration |
2 N.C. |
| Contact Type |
Mechanical |
| Current Rating |
Medium Current |
| Mounting Style |
Rear-mounted, stackable |
| Terminal Type |
Screw terminals |
| Number of Terminals |
4 |
| Wire Size |
14–18 AWG |
| Environmental Protection |
Sealed construction |
| Series |
800T |
| Weight |
Approx. 0.15 lb |
Information About 800T-XA4Y
The 800T-XA4Y is part of the Allen-Bradley 800T 30 mm operator family, known for its heavy-duty construction and long mechanical life. It is a sealed, stackable contact block intended for use in harsh industrial control panels where protection against dust and contaminants is required. The contact block features a 2 N.C. contact configuration and supports medium-current applications using screw terminals for secure wiring. Designed for compatibility with standard 800T operators, it supports modular assembly and reliable performance in control and signaling circuits.
Key Features:
- Normally Closed Contacts: Provides two N.C. contacts for fail-safe and control logic applications.
- 30 mm Operator Compatibility: Designed specifically for Allen-Bradley 800T series operators.
- Sealed Construction: Helps protect internal contacts from dust and environmental contaminants.
- Stackable Design: Allows multiple contact blocks to be mounted on a single operator.
- Medium Current Rating: Suitable for standard industrial control circuit loads.
- Screw Terminal Connections: Four screw terminals support secure and stable wiring.
- Wide Wire Range Support: Accepts 14–18 AWG conductors for flexible installation.
The 800T-XA4Y delivers the reliability and precision required for industrial control and operator interface applications.
