Description

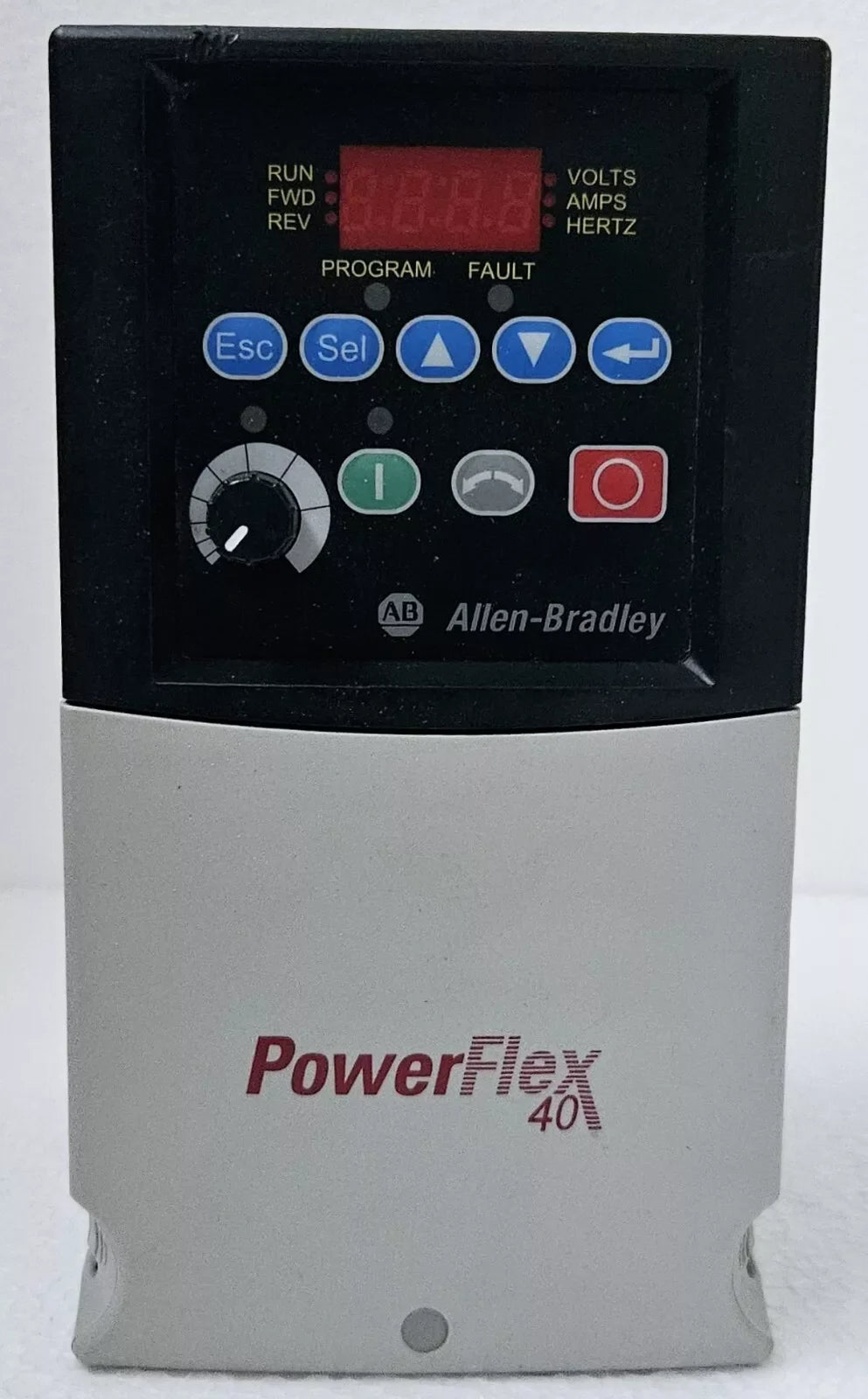

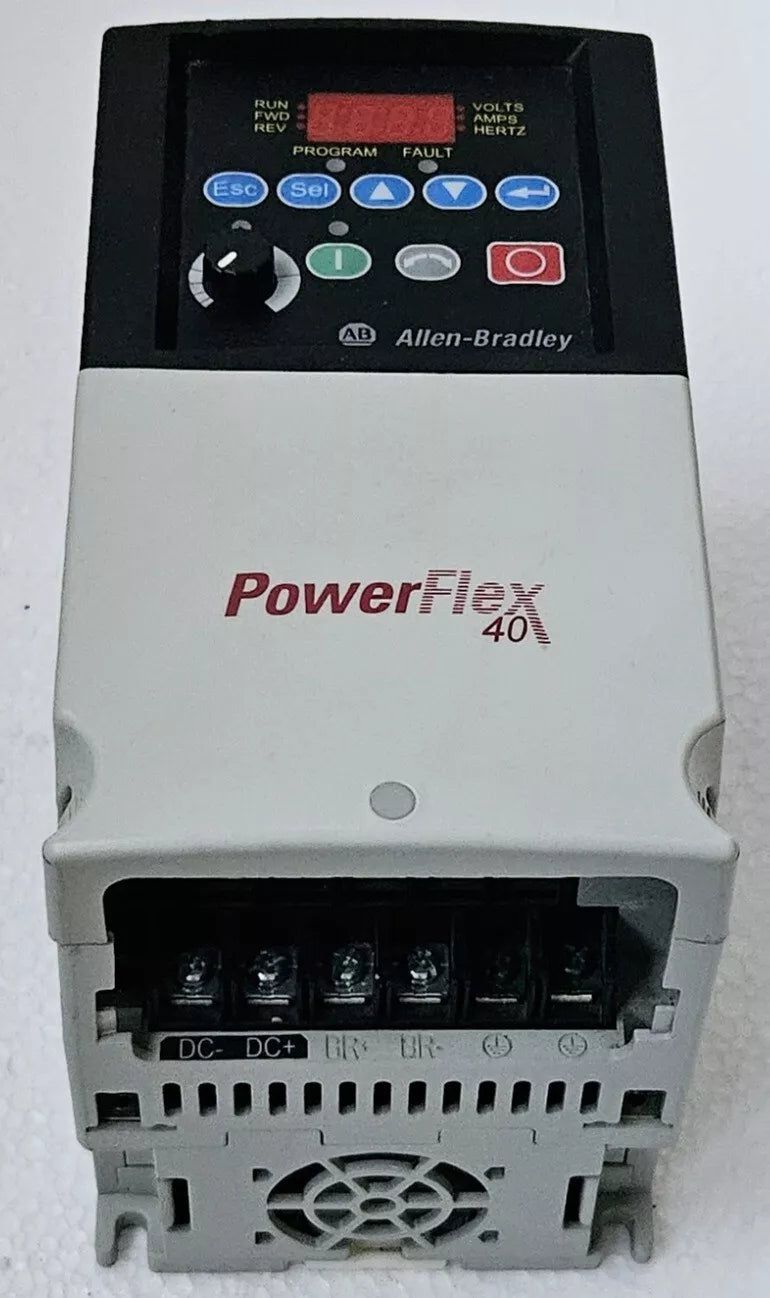

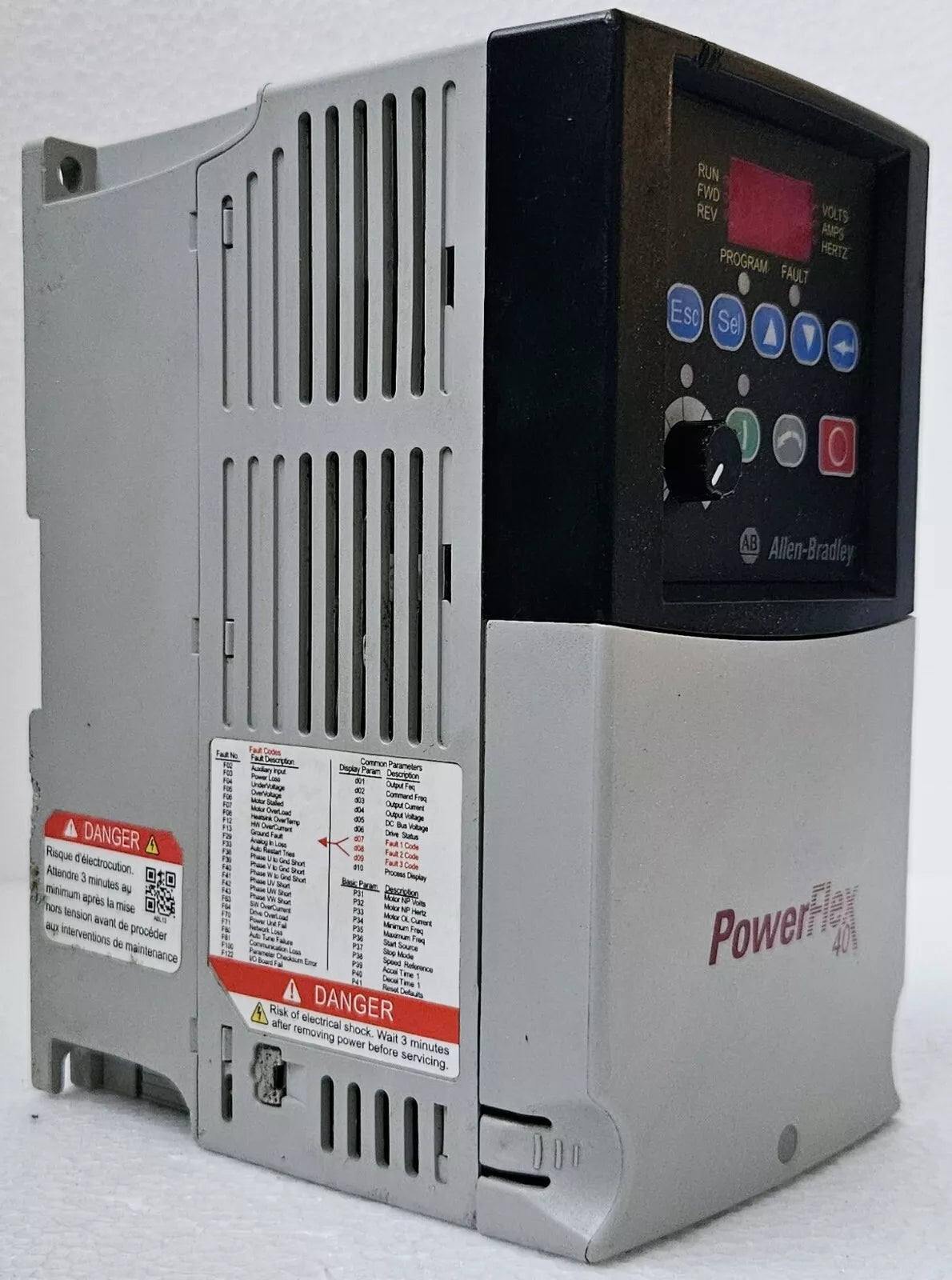

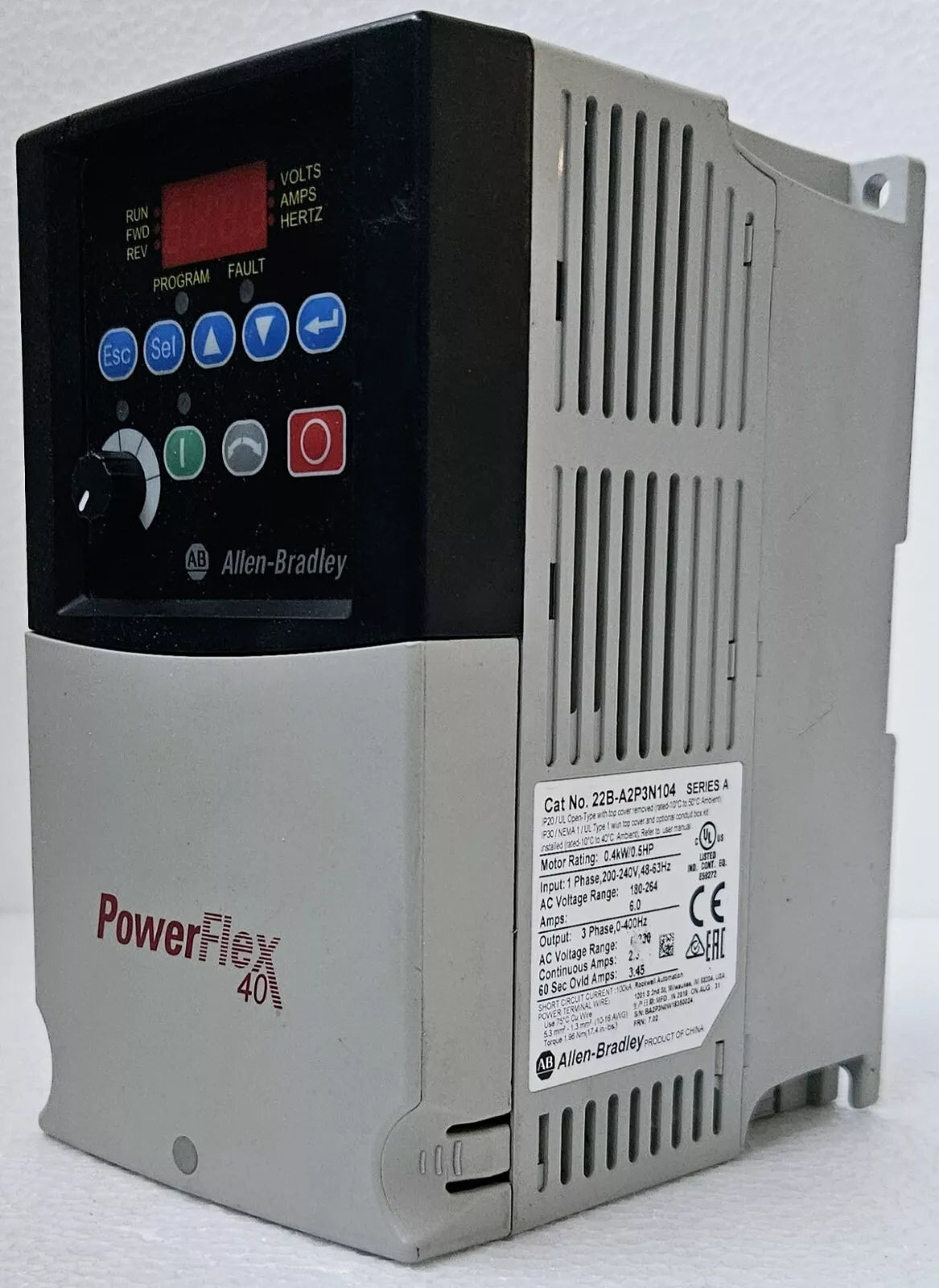

The Allen-Bradley 22B-A2P3N104 provides reliable motor speed control for single-phase applications within compact automation systems. This adjustable frequency drive from the PowerFlex 40 series operates at 240V AC and delivers up to 0.5 HP of output power.





Technical Specifications

Condition	New/Never Used Surplus
Brand	Allen-Bradley
Category	Drives
Part Number	22B-A2P3N104
Subcatecory	Motor Drives
Product Line	Powerflex 40
Voltage	240AC Volts
Enclosure	Panel Mount - IP20, NEMA/UL Type Open
HP	0.5 Horsepower
Amperage	2.3 A
Phase	1 Phase
Filter	No CE Compliant Filter
Communication	RS-485
Input Type	Keypad
Weight	1.49 kgs





Information About 22B-A2P3N104

The 22B-A2P3N104 is a single-phase input variable frequency drive (VFD) from the Allen-Bradley PowerFlex 40 series. It operates at 240V AC with a frequency range of 50–60 Hz and provides a maximum output of 2.3 A. This drive supports motor loads up to 0.5 HP (0.4 kW) and features an open IP20-rated enclosure for panel-mounted indoor use. The unit includes a built-in keypad and RS-485 communication but does not include a CE-compliant EMC filter.

Key Features:

• 0.5 HP Output Power: Suitable for small motor control applications requiring compact drive performance.

• 240V Single-Phase Input: Operates on standard AC supply voltage, ideal for standalone machines or light-duty systems.

• 2.3 A Output Current: Supports low-to-medium load requirements with consistent drive performance.

• Open IP20 Enclosure: Designed for panel mounting in protected environments; offers NEMA/UL Type Open rating.

• Integrated Keypad Interface: Local control via a simple keypad for quick setup and manual operation.

• RS-485 Communication: Enables basic networking or remote control within automation systems.

• No Internal EMC Filter: CE-compliant filtering must be added externally if required for specific regulatory needs.

The 22B-A2P3N104 is a straightforward and efficient solution for controlling small motors in panel-mounted applications.
