Description

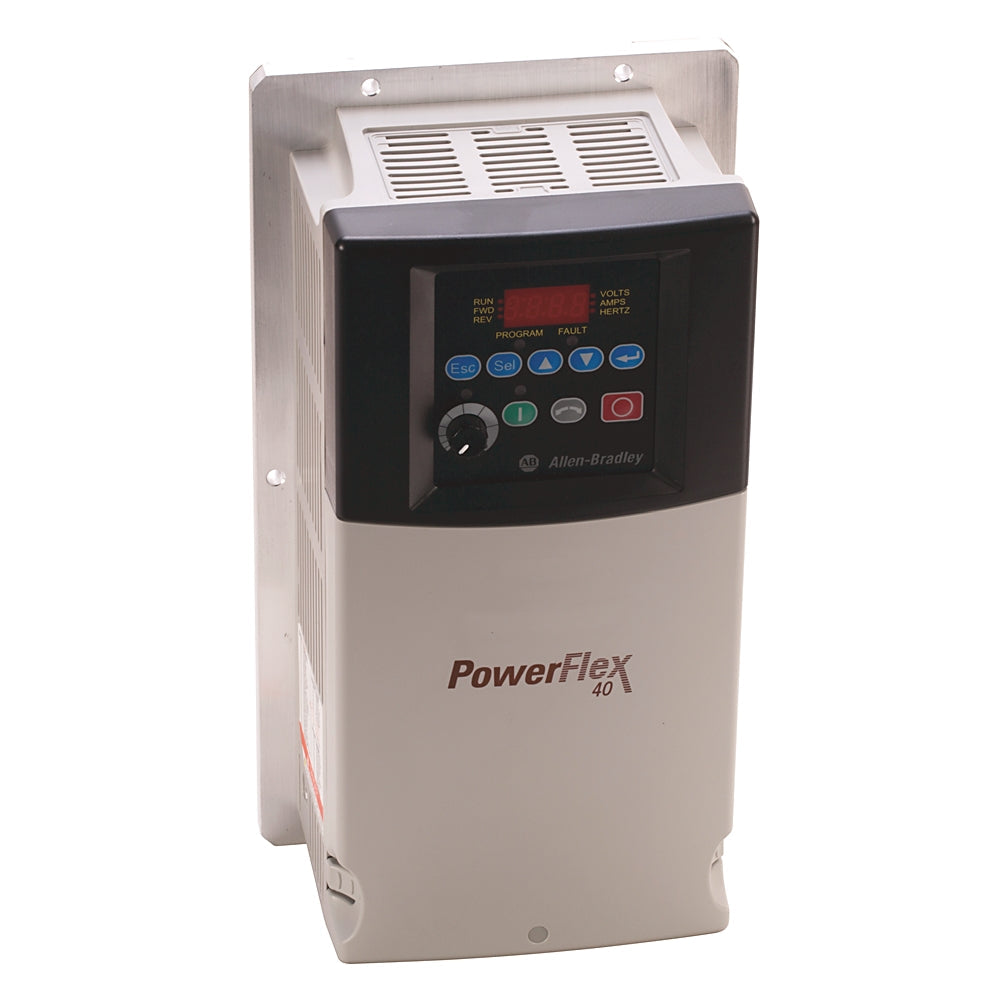

The Allen-Bradley 22B-A012N104 is an adjustable frequency drive designed for reliable motor control in compact industrial systems. With a single-phase 240V AC input and 12 A output, it delivers up to 3 HP (2.2 kW) of power.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Allen-Bradley
|
|
Category
|
|
|
Part Number
|
22B-A012N104
|
| Subcatecory |
|
| Product Line |
Powerflex 40 |
| Voltage |
240AC Volts |
| Enclosure |
Panel Mount - IP20, NEMA/UL Type Open |
| HP |
3 Horsepower |
| Amperage |
12.0 A |
| Phase |
1 Phase |
| Filter |
No CE Compliant Filter |
| Communication |
RS-485 |
| Input Type |
Keypad |
Information About 22B-A012N104
The 22B-A012N104 is part of the Allen-Bradley PowerFlex 40 series of variable frequency drives (VFDs). It supports 240V AC single-phase input and outputs up to 12 A for driving motors rated up to 3 HP. The unit includes a built-in keypad for manual control and RS-485 communication capabilities for integration into basic networked systems. Housed in a panel-mount IP20 enclosure (NEMA/UL Type Open), it is suited for indoor use in protected control cabinets. This model does not include a CE-compliant EMC filter, requiring external filtering if needed for regulated environments.
Key Features:
-
3 HP / 2.2 kW Power Output: Delivers reliable performance for light- to medium-duty motor applications.
-
240V Single-Phase Input: Operates on standard industrial power sources for flexible installation.
-
12 A Output Current: Supports higher current loads with consistent drive functionality.
-
Panel Mount IP20 Enclosure: Compact open-style housing for control cabinet integration in indoor settings.
-
Integrated Keypad Interface: Provides on-drive manual setup and monitoring functionality.
-
RS-485 Communication: Enables basic connectivity for serial communication with external systems.
-
No Internal EMC Filter: CE-compliant filtering must be added externally where required.
The 22B-A012N104 offers efficient motor control and streamlined configuration in a compact form factor for industrial applications.
