Description

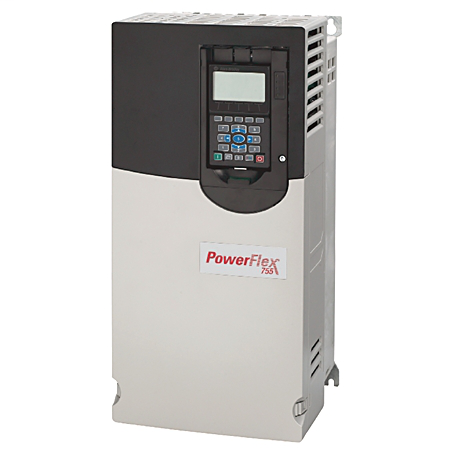

The 20G11ND5P0JA0NNNNN is a PowerFlex 755 air-cooled AC drive from Allen-Bradley, designed for high-performance motor control in demanding industrial applications.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Allen-Bradley |
|
Category
|
|
|
Part Number
|
20G11ND5P0JA0NNNNN
|
| Subcatecory |
|
| Series |
PowerFlex 755 |
| Frames |
1..5, 8...10 |
| Enclosure Type |
Open Type |
| Output Current |
5 Amps, (Fr1 3HP ND, 2HP HD/Fr2 3HP ND, 3HP HD) |
| Voltage Class |
480 VAC, 3 PH |
| Mounting Type |
Wall |
| Weight |
7.20 kgs |
Information About 20G11ND5P0JA0NNNNN
The 20G11ND5P0JA0NNNNN is a PowerFlex 755 air-cooled AC drive from Allen-Bradley, designed to provide advanced motor control and integration flexibility for various industrial applications.
Key Features:
-
Voltage and Phase: 480V AC, three-phase
-
Output Current: 5 Amps
-
Horsepower Rating:
-
Normal Duty: 3 HP
-
Heavy Duty: 2 HP
-
Frame Size: Frame 2
-
Enclosure Type: Open Type
-
Input Configuration: AC Input with DC Terminals
-
EMC Filtering: Filtered, with CM jumper installed
-
Dynamic Braking: Equipped with a dynamic braking transistor
-
Human Interface Module (HIM): Not included (Blank)
-
Communication: Embedded Ethernet/IP for seamless integration into industrial networks
The PowerFlex 755 AC drive is suitable for applications requiring precise motor control and advanced connectivity, such as conveyors, pumps, and fans.
