Description

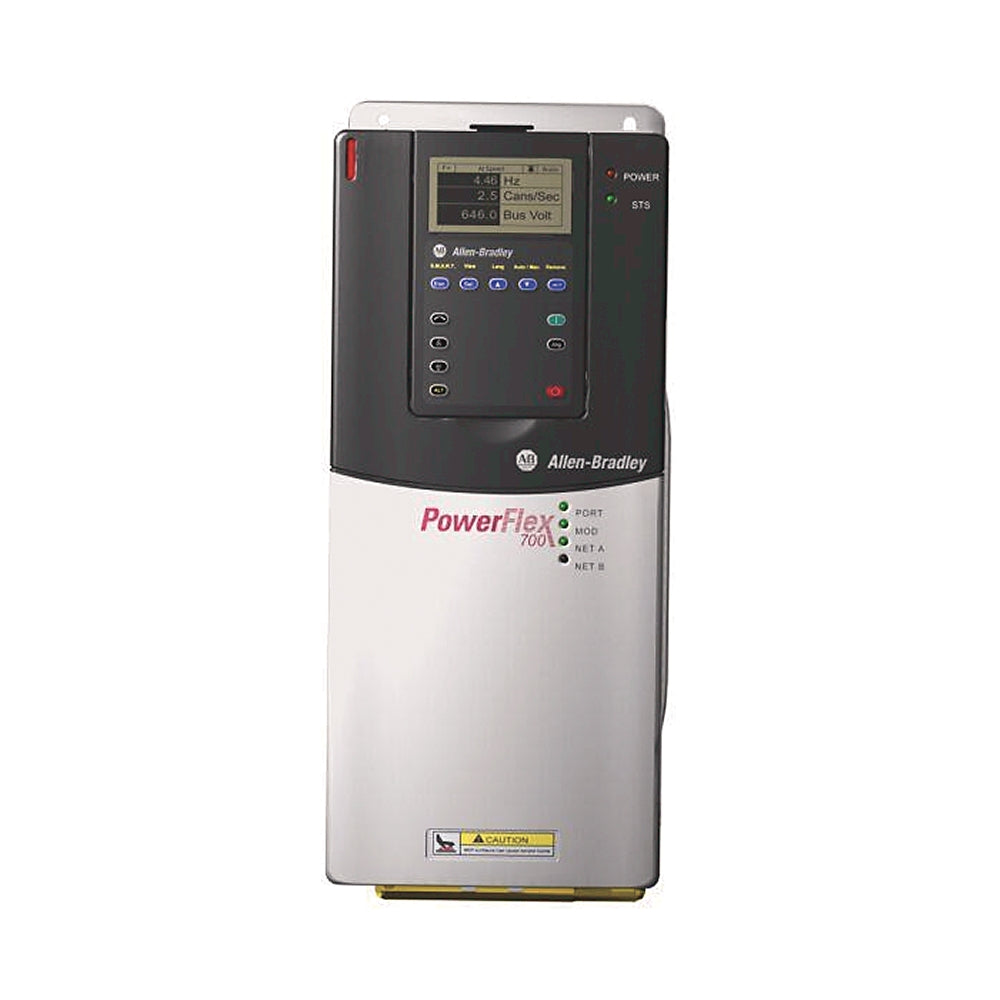

The Allen-Bradley 20BD065A3AYNAND0 is a high-performance AC drive from the PowerFlex 700 series, designed for vector control of industrial motors. Rated for 50 HP and 65 A output at 480V AC, this variable frequency drive supports precise speed and torque regulation.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Allen-Bradley
|
|
Category
|
|
|
Part Number
|
20BD065A3AYNAND0
|
| Subcatecory |
|
| Voltage |
480V AC |
| Phases |
3 |
| Amps |
65 |
| HP |
50 |
| Frame |
3 |
| Enclosure |
IP20, NEMA/UL Type 1 |
| Operator Interface |
LCD Display, Full Numberic Keypad |
| Documentation Type |
Manual |
| w/Brake |
Yes |
| w/Resistor |
No |
| CE Filter |
Yes |
| CM Choke |
Yes |
| Network Type |
None |
| Control |
Vector |
| I/O Volts |
115V AC |
Information About 20BD065A3AYNAND0
The 20BD065A3AYNAND0 is a 3-phase, 480V AC variable frequency drive (VFD) with a 65 A output current and a 50 HP power rating. It belongs to frame size 3 and features an integrated vector control cassette for advanced motor regulation. The enclosure is rated IP20 and NEMA/UL Type 1, making it suitable for protected indoor environments. It includes a built-in LCD operator interface with a full numeric keypad for manual control and parameter configuration.
Key Features:
-
50 HP / 65 A Output: Supports mid-to-large industrial motor loads with consistent torque delivery.
-
480V AC, 3-Phase Operation: Designed for standard high-voltage industrial power systems.
-
Integrated Vector Control: Offers advanced speed and torque control, suitable for demanding motion profiles.
-
LCD Keypad Interface: Full numeric keypad and display for easy monitoring, programming, and diagnostics.
-
IP20 / NEMA 1 Enclosure: Panel-mountable for indoor environments requiring basic protection.
-
Common-Mode Choke & CE Filter: Reduces electrical noise and meets EMC compliance requirements.
-
115V AC I/O: Compatible with standard industrial input/output voltages.
The 20BD065A3AYNAND0 offers a powerful combination of torque control, usability, and built-in safety features, making it a reliable choice for automated motor systems.
