Description

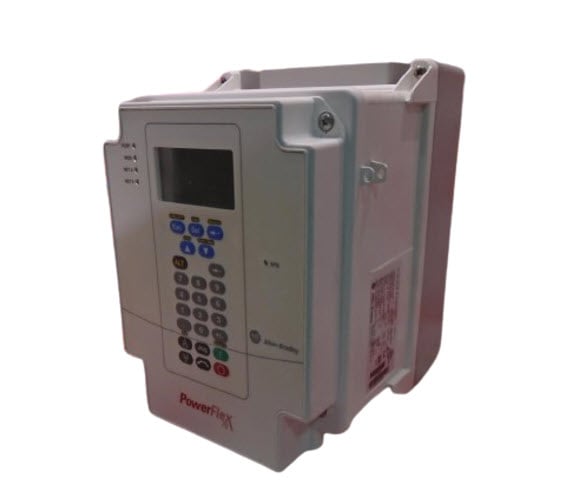

The Allen-Bradley 20AD2P1C3AYNNNC0 is a PowerFlex 70 AC drive designed for precise motor control in industrial applications. With a 0.75 kW (1 HP) output rating and 2.1 A current capacity, this compact frame size A variable frequency drive supports enhanced functionality through its full numeric LCD interface and enhanced control board.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Allen-Bradley
|
|
Category
|
|
|
Part Number
|
20AD2P1C3AYNNNC0
|
| Subcatecory |
|
| Voltage |
480V AC |
| Ph |
3 |
| Amps |
2.1 |
| kW(Hp) |
0.75 (1.0) |
| Frame |
A |
| Enclosure |
Wall/Machine Mount = IP66, NEMA/UL Type 4X/12 for indoor use only |
| Interface Module |
Full Numeric LCD |
| Type |
Manual |
| w/Brake |
Yes |
| w/Resistor |
No |
| Rating |
Not Filtered A & B Frames (Optional) C, D & E Frames |
| Network Type |
None |
| Control |
Enhanced |
Information About 20AD2P1C3AYNNNC0
The 20AD2P1C3AYNNNC0 is part of the PowerFlex 70 series from Allen-Bradley/Rockwell Automation, offering a robust and flexible motor control solution for both general-purpose and demanding applications. It operates on a three-phase 480V AC input and delivers high-performance vector or V/Hz control.
The drive comes in an IP66/NEMA 4X/12 wall- or machine-mountable enclosure, suitable for indoor use only. This protection rating ensures resistance to dust, water, and oil, making it ideal for environments where reliability is essential.
Key Features:
-
0.75 kW / 1 HP Output: Ideal for light-duty motor control tasks.
-
Full Numeric LCD Interface: Built-in display for drive configuration and monitoring.
-
IP66 / NEMA 4X/12 Enclosure: Wall/machine mountable and protected against dust and splashing water.
-
Enhanced Control Board: Supports advanced vector and sensorless vector control options.
-
Includes Brake, No Resistor: Supports braking functionality without integrated resistor.
-
Unfiltered Frame A: Compatible with optional filters if required.
The 20AD2P1C3AYNNNC0 is a compact, intelligent motor control solution suitable for a variety of demanding environments where space and ruggedness are critical.
