Description

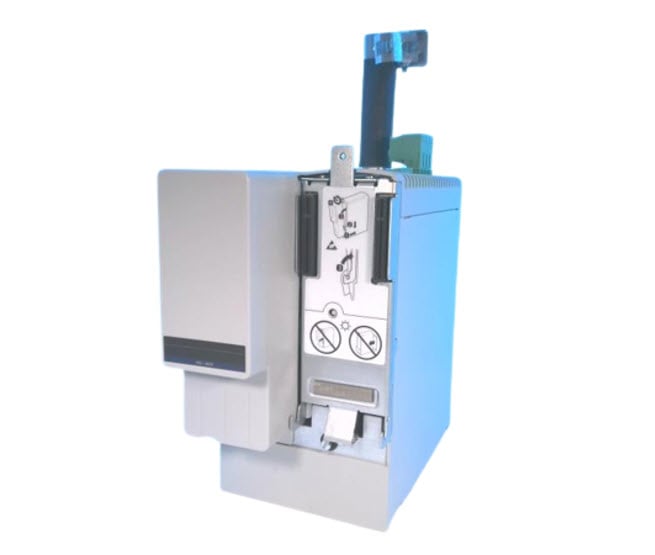

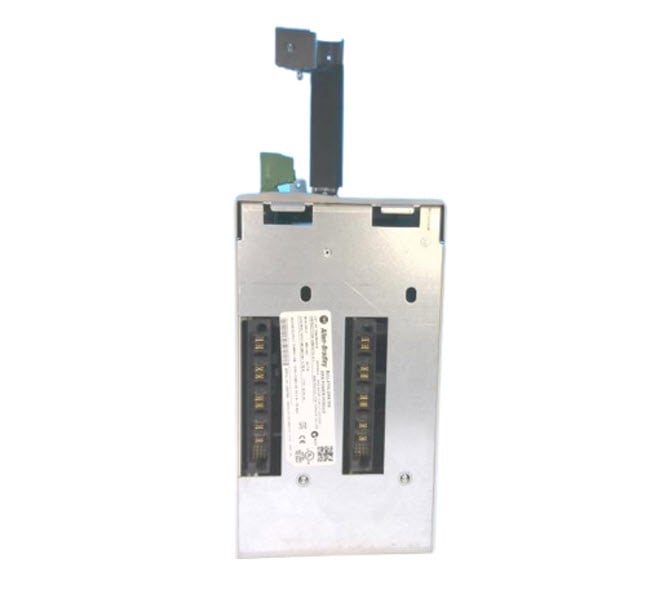

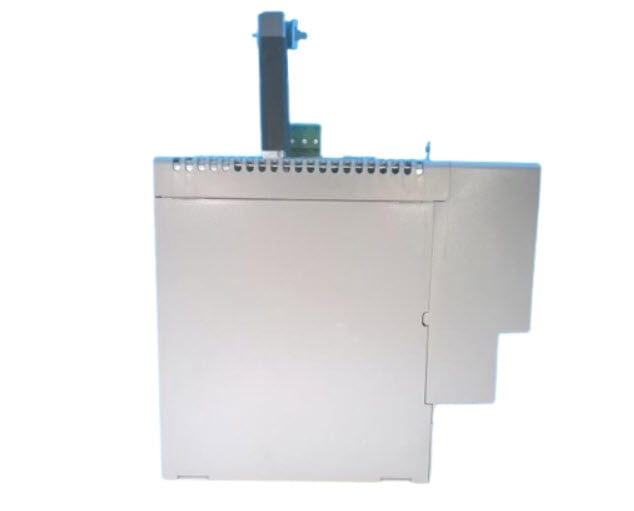

The 2094-BM03-M is a Kinetix 6000 series power module from Allen-Bradley, designed for multi-axis servo drive systems. It supports up to 3 kW continuous output power and operates on a 460V AC input.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Allen-Bradley |
|
Category
|
|
|
Part Number
|
2094-BM03-M
|
| Subcatecory |
|
| Control Type |
SERCOS Interface |
| Output |
30A (460V Input Voltage) |
| Output Voltage |
460 VAC
|
| Standard |
C-TICK,CE,CUL,KC,UL |
| Type |
Servo Drive |
| Wattage |
13 kW |
| Input Voltage |
650 VDC |
| Output Current |
30 A Continuous, 75 A Peak |
| Temperature Rating |
0 - 50°C |
| Power Module |
Axis Module |
| Weight |
4.54 kgs |
Information About 2094-BM03-M
The Allen-Bradley 2094-BM03-M is a Kinetix 6200/6500 series axis power module designed for multi-axis servo drive systems. Operating at 460V AC, it delivers a continuous output power of 13.5 kW with a continuous current rating of 21.2 A and a peak current of 53.0 A. The module boasts an efficiency of 98% and features an internal shunt with a continuous power rating of 200W and a peak power of 22.5 kW. Its compact design facilitates seamless integration into industrial automation setups, providing reliable performance for demanding motion control applications.
Key Features:
-
Voltage Class: 400V
-
Continuous Output Power: 13.5 kW
-
Continuous Current Output: 21.2 A
-
Peak Current Output: 53.0 A
-
Efficiency: 98%
-
Internal Shunt Continuous Power: 200W
-
Internal Shunt Peak Power: 22.5 kW
-
Short-Circuit Current Rating: 200,000 A (rms) symmetrical
