Description

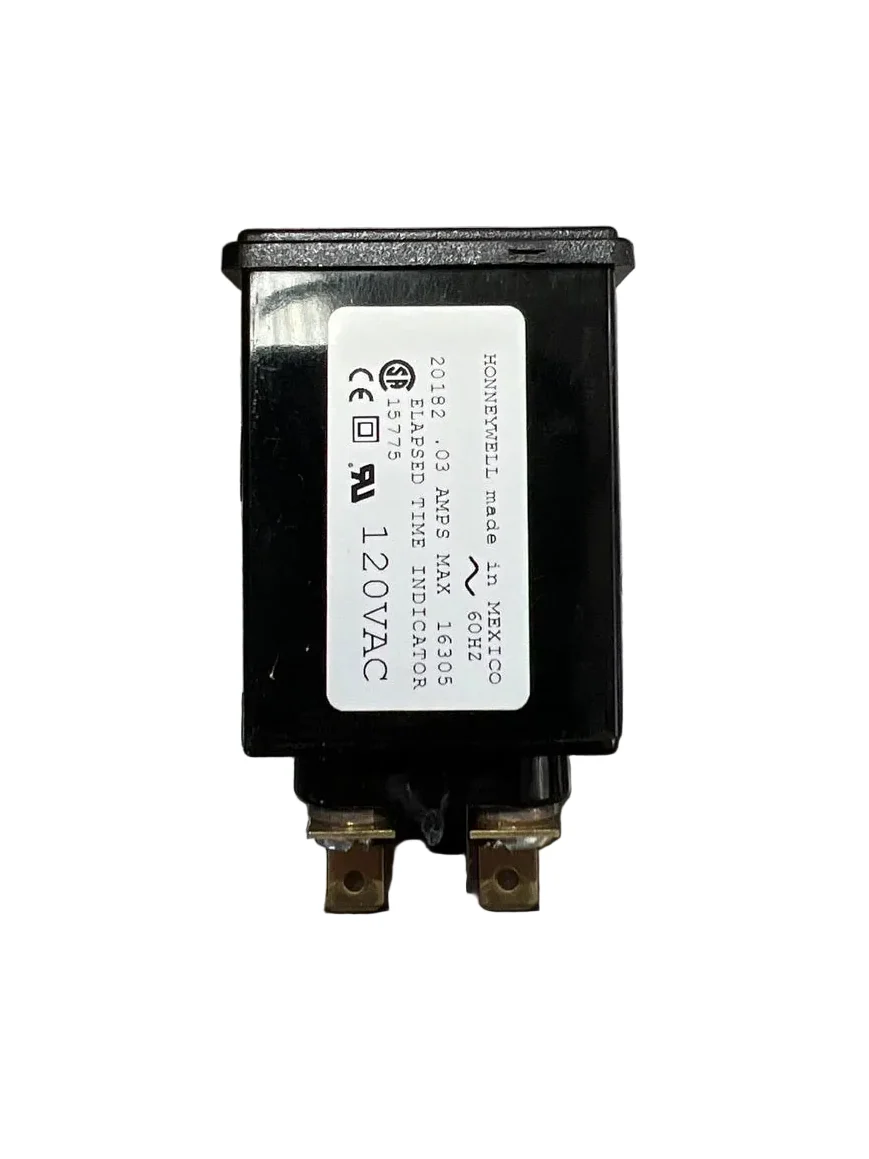

The Honeywell 20182-23 is an electromechanical hour meter designed to record accumulated operating time in industrial equipment. As part of the 20000 Series, it provides a 6-digit time display up to 99999.9 hours using a decade wheel mechanism. This panel-mounted meter is intended for maintenance tracking, service scheduling, and runtime monitoring applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
Controls & Indicators |
| Part Number |
20182-23 |
| Subcategory |
Time/Count Totalizer |
| Series |
20000 Series |
| Type |
Time Counter (Hour Meter) |
| Display Format |
99999.9 hours |
| Number of Digits |
6 |
| Display Type |
Decade Wheel |
| Digit Height |
3 mm (0.120") |
| Mounting Type |
Panel Mount |
| Termination Style |
1/4" Quick Connect (Blade Terminal) |
| Ingress Protection |
IP66 |
| Operating Temperature |
-54°C to +68°C |
| Accuracy |
±0.02% |
| Weight |
3.00 lbs |
Information About 20182-23
The 20182-23 is a panel-mounted time counter within Honeywell’s 20000 Series of sealed AC hour meters. It operates in an up-counting mode and displays elapsed time in a 6-character format with 0.1-hour resolution. The unit features a sealed enclosure rated IP66, providing protection against dust and moisture in demanding industrial environments. Designed for long-term reliability, it incorporates quartz accuracy and electromechanical construction to support consistent runtime measurement in equipment monitoring systems.
Key Features:
-
6-Digit Time Display: Records elapsed time up to 99999.9 hours with 0.1-hour resolution.
-
Electromechanical Operation: Uses a decade wheel mechanism for mechanical time tracking.
-
Panel Mount Design: Suitable for control panels and equipment dashboards.
-
IP66 Sealed Housing: Protects against dust and water ingress in industrial environments.
-
Wide Temperature Range: Operates from -54°C to +68°C.
-
Quick Connect Terminals: 1/4" blade terminals for straightforward installation.
-
Quartz Accuracy: ±0.02% accuracy for reliable time measurement.
The 20182-23 delivers the reliability and precision required for industrial equipment runtime monitoring and maintenance scheduling.
