Description

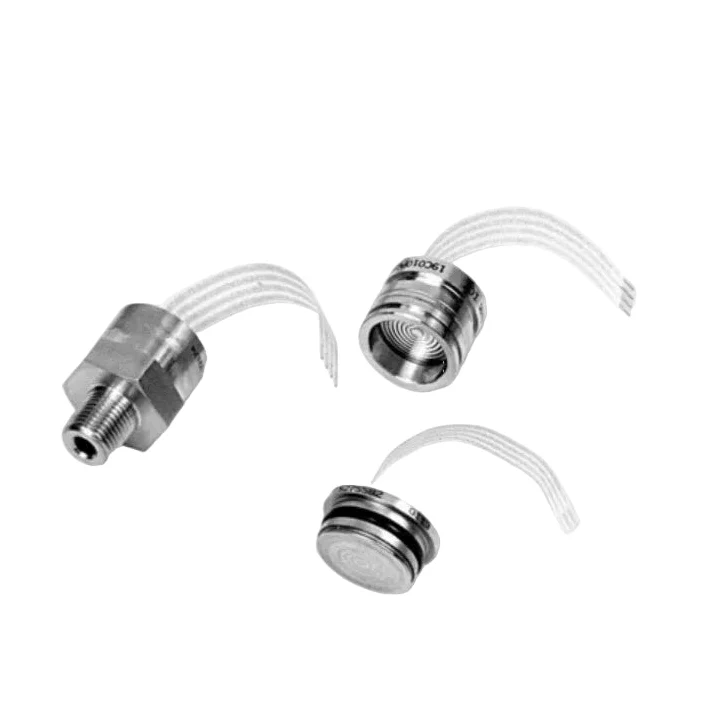

The Honeywell 19C015PV1L is a heavy-duty piezoresistive pressure transducer designed for measuring vacuum gauge pressure up to 15 PSI. It features a 19 mm stainless steel construction suitable for harsh industrial environments. This sensor provides calibrated and temperature-compensated output for stable and repeatable pressure measurement.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
Sensors & Switches |
| Part Number |
19C015PV1L |
| Subcategory |
Pressure Sensor/Transducer |
| Series |
19C Series |
| Pressure Range |
0 to 15 PSI |
| Pressure Type |
Vacuum Gauge |
| Sensing Technology |
Piezoresistive (Semiconductor Strain Gauge) |
| Excitation |
1.5 mA Constant Current |
| Housing Material |
316 Stainless Steel |
| Compensated Temperature Range |
0°C to 82°C |
| Operating Temperature Range |
-40°C to +125°C |
| Output Type |
Analog |
| Sensor Diameter |
19 mm |
| Weight |
3.00 lbs |
Information About 19C015PV1L
The 19C015PV1L is part of Honeywell’s 19C Series stainless steel pressure sensors developed for demanding process and instrumentation applications. It utilizes piezoresistive sensing technology with a semiconductor strain gauge element to convert pressure into a proportional electrical signal. The device is calibrated and temperature compensated to maintain accuracy within a defined thermal range. Designed for compatibility with corrosive liquids and gases, the sensor incorporates a 316 stainless steel media-isolated package and operates with a constant current excitation source.
Key Features:
-
0 to 15 PSI Vacuum Gauge Range: Designed for low-pressure and vacuum-referenced measurement.
-
Piezoresistive Sensing Element: Provides proportional analog output based on applied pressure.
-
19 mm Stainless Steel Body: Ensures mechanical durability and corrosion resistance.
-
Calibrated and Temperature Compensated: Maintains stable performance across specified temperature ranges.
-
1.5 mA Constant Current Excitation: Optimized for controlled and precise signal conditioning.
-
Wide Operating Temperature Range: Operates from -40°C to +125°C.
-
Media Isolation: Suitable for use with corrosive liquids and gases.
The 19C015PV1L delivers the reliability and precision required for vacuum and low-pressure monitoring in industrial systems.
