Description
The Allen-Bradley 1489-M1C300 is a 1-pole miniature circuit breaker designed for branch circuit protection in industrial and commercial applications. It features a C-curve trip characteristic, 300V AC rating, and 30A current capacity, offering reliable protection against overloads and short circuits.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley |
| Category |
General Purpose Switches |
| Part Number |
194R-N30-1753 |
| Subcategory |
Electrical Disconnect Switches
|
| Fuse Type |
30 & 60A Non-fused IEC/UL |
| Open, Kitted, or Enclosed |
Open |
| Pole Configuration |
3 Pole |
| Switch Ampere Rating |
30A |
| Bulletin |
194R |
| Voltage Rating |
600 VAC |
| Weight |
0.37 kgs |
Information About 194R-N30-1753

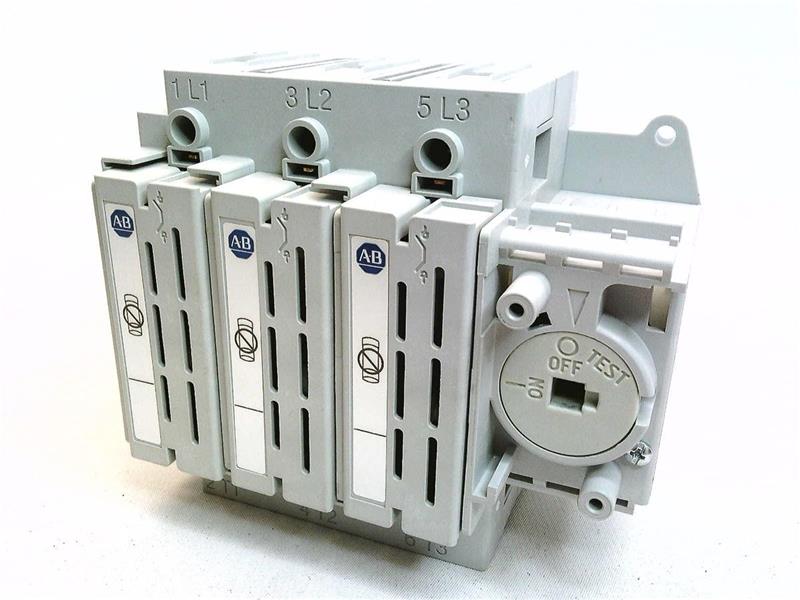

The Allen-Bradley 194R-N30-1753 is a 30 A, 3-pole, non-fused disconnect switch designed for industrial applications requiring reliable circuit isolation and safety compliance. It supports up to 600 V AC and 250 V DC, making it suitable for various electrical systems.
Key Features:
-
Current Rating: 30 A
-
Voltage Rating: 600 V AC / 250 V DC
-
Number of Poles: 3
-
Design: Non-fused rotary disconnect switch
-
Safety Features: OSHA padlocking provisions for enhanced safety during maintenance
-
Mounting: DIN rail compatible for easy installation
-
Certifications: Complies with UL and CSA standards
This disconnect switch is part of Allen-Bradley's Bulletin 194R series, known for its rugged construction and suitability for demanding environments. It provides a touch-safe design and offers both front and side operation options.
