Description

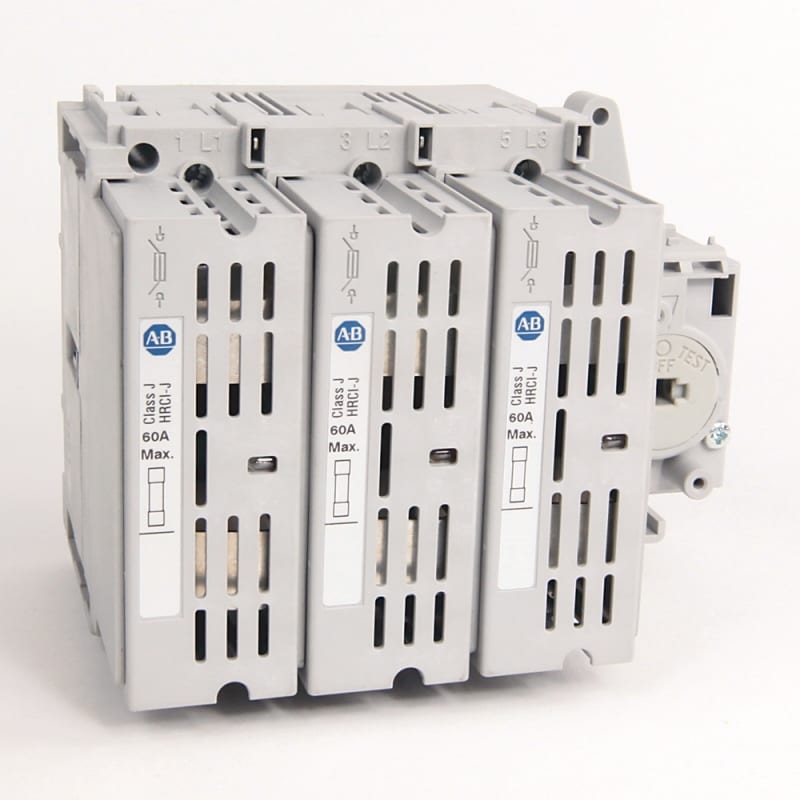

The 194R-J60-1753-PYS1 is a 3-pole, 60 Amp disconnect switch from Allen-Bradley, featuring a long-turning red/yellow pistol handle for front-panel operation. Rated for up to 600V, it offers safe and reliable disconnection in industrial control and safety applications.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Allen-Bradley
|
| Category |
|
| Part Number |
194R-J60-1753-PYS1
|
| Subcatecory |
|
| Actuator Type |
Red/Yellow Standard Pistol Handle |
| Current Rating |
60 Amp
|
| Voltage Rating |
600 Volt |
Number of Poles
|
3 |
Mounting Type
|
4-Hole Front Mounting
|
| Terminal Type |
Screw Terminals
|
| Handle Type |
Long Turning Handle
|
| Weight |
4.0900 lb
|
Information About 194R-J60-1753-PYS1
The Allen-Bradley 194R-J60-1753-PYS1 is a robust disconnect switch designed for industrial motor control centers, safety panels, and electrical enclosures. With a current rating of 60 Amps and a voltage rating of 600 Volts, it ensures secure and reliable circuit isolation during maintenance or emergency shutdown procedures. This model is equipped with a standard red/yellow pistol handle actuator, designed for clear visual indication of switch status (ON/OFF), even though it has no separate status indication window. The long-turning handle offers smooth mechanical operation and increased operator leverage.
Key Features:
-
High Voltage and Current Ratings: Supports up to 60A and 600V for industrial-grade applications.
-
3-Pole Design: Suitable for safe disconnection of three-phase systems.
-
Durable Front Actuation: Long-turning red/yellow pistol handle for intuitive operation and clear visual control.
-
Screw-Type Terminals: Secure and stable wiring connections.
-
Front Panel Mounting: Designed for 4-hole mounting, ensuring a firm and easy installation.
The 194R-J60-1753-PYS1 provides safe, reliable, and efficient power disconnection for a wide range of industrial automation and electrical distribution systems.
