Description

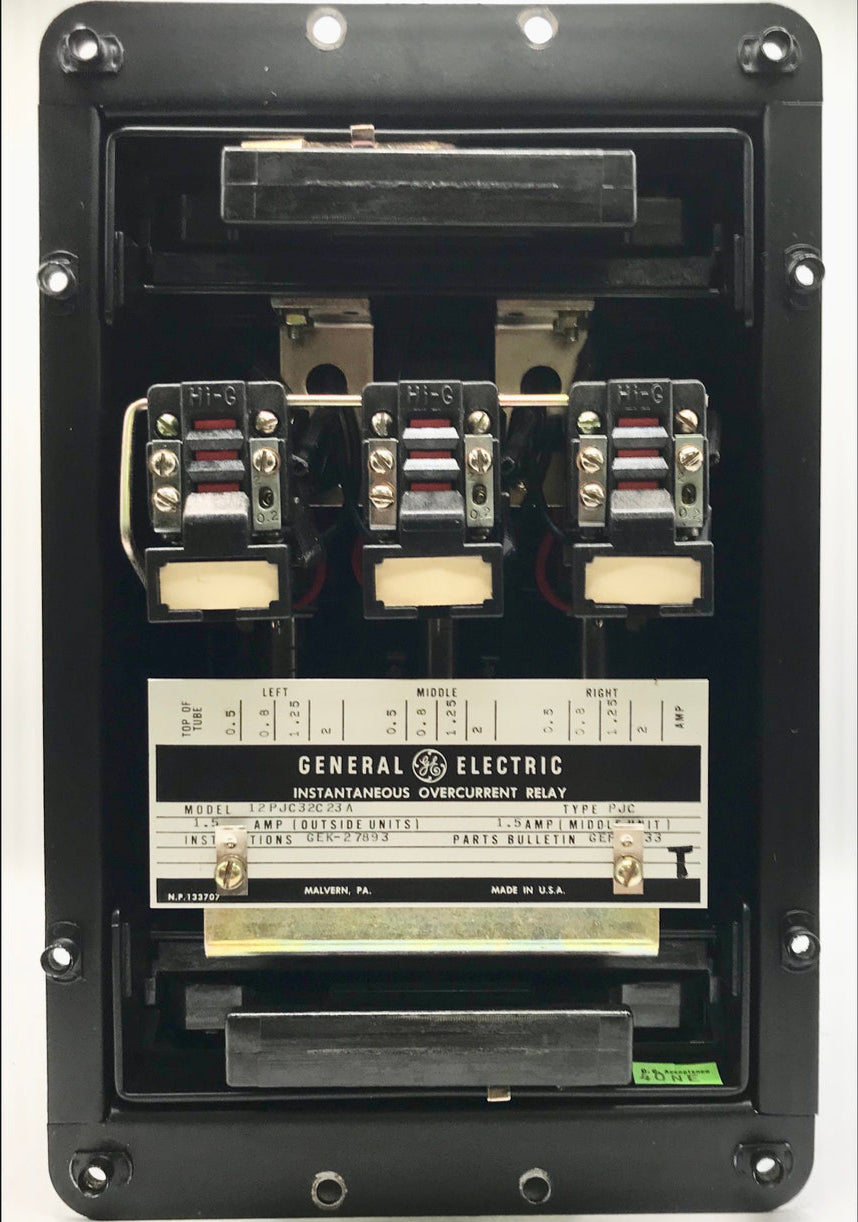

The General Electric 12PJC32C23A is an instantaneous overcurrent relay engineered for rapid detection and tripping during fault conditions.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
General Electric |
| Category |
Protective Relay |
| Part Number |
12PJC32C23A |
| Subcategory |
Instantaneous Overcurrent Relay |
| Product Type |
Instantaneous Overcurrent Relay |
| Type |
PJC |
| Catalog Number |
12PJC32C23A |
| Operating Coil Rating |
1.5 A |
| Calibration Range |
0.5–2 A |
| Contacts |
2 Normally Open (N/O) |
| Target/Seal-In Unit Range |
0.2–2 A |
| Case Type |
S2 Relay Case |
| Weight |
8 lbs |
Information About 12PJC32C23A
The General Electric 12PJC32C23A is a Type PJC instantaneous overcurrent relay designed for rapid fault detection and tripping in industrial and utility power systems. With an operating coil rated at 1.5 A and a calibration range of 0.5–2 A, it provides precise, high-speed protection against overcurrent events. The relay features two normally open contacts and a target/seal-in unit adjustable from 0.2–2 A, allowing flexible configuration to meet system protection requirements. Housed in a durable S2 relay case, it is built for reliable performance in demanding environments.
Key Features:
- Fast Response Protection: Instantaneous tripping for immediate fault isolation.
- Adjustable Calibration: 0.5–2 A range for customized system settings.
- High Sensitivity: Target/seal-in unit adjustable from 0.2–2 A.
- Reliable Switching: Two normally open contacts for protection circuit integration.
- Durable Housing: S2 relay case for long-lasting operation in industrial conditions.
- Standard Documentation: Includes GEK-27893 instruction reference for installation and maintenance.
The 12PJC32C23A delivers dependable, high-speed overcurrent protection, making it an essential component for safeguarding critical electrical infrastructure in industrial and utility applications.
