Description

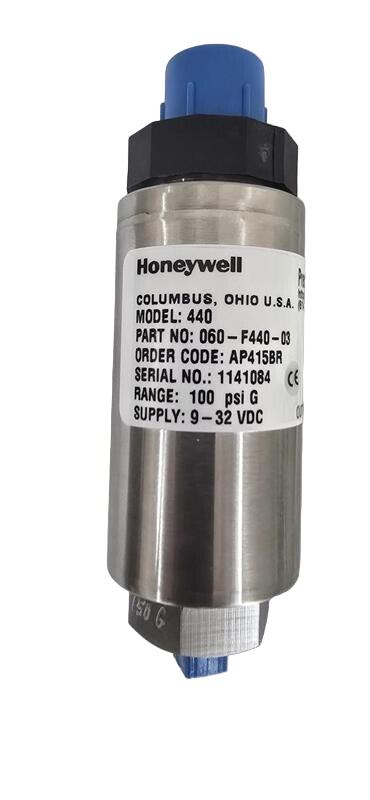

The Honeywell 060-F440-03 is a compact industrial pressure transmitter designed for accurate measurement of gas or liquid media up to 100 psi. Operating on a 9–32 V DC supply, it provides a reliable 4–20 mA output signal for process monitoring and control applications requiring gauge or absolute pressure readings.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
Sensors & Switches |
| Part Number |
060-F440-03 |
| Subcategory |
Pressure Sensor / Transmitter |
| Model Series |
Model 440 |
| Pressure Range |
0–100 psi |
| Pressure Type |
Gauge / Absolute |
| Supply Voltage |
9–32 V DC |
| Output Signal |
4–20 mA |
| Accuracy |
±0.25 % full scale |
| Wetted Materials |
Stainless steel |
| Operating Temperature |
–20 °F to +185 °F (–29 °C to +85 °C) |
| Pressure Port |
¼-18 NPT male |
| Electrical Connection |
DIN 43650 or cable gland (depending on configuration) |
| Overpressure Limit |
2× rated pressure |
| Load Resistance |
Up to 500 Ω (typical) |
| Response Time |
< 5 ms |
| Protection Rating |
IP65 (typical for Model 440) |
| Output Type |
Two-wire current loop |
| Application |
Industrial process, gas/liquid monitoring, automation control |
| Weight |
0.8 lbs |
Information About 060-F440-03
The 060-F440-03 is part of Honeywell’s Model 440 pressure sensor series, developed for precise pressure measurement in demanding industrial, HVAC, and automation systems. This model combines high accuracy with rugged stainless-steel construction, offering resistance to vibration, moisture, and chemical exposure. It delivers a linear 4–20 mA signal proportional to the measured pressure, making it compatible with most PLCs, data acquisition, and control systems. Designed for continuous operation in harsh environments, the transmitter features a sealed stainless-steel diaphragm and a compact body for easy installation in tight spaces.
Key Features:
- 0–100 psi Measurement Range: Covers a wide range of pressure monitoring applications for gases and liquids.
- 4–20 mA Output Signal: Standard industrial output ensures easy integration with control and monitoring equipment.
- 9–32 V DC Operating Voltage: Wide supply range for flexible system compatibility.
- Gauge or Absolute Configuration: Suitable for both referenced and absolute pressure measurements.
- High Accuracy ±0.25 % FS: Ensures precise readings for process and instrumentation control.
- Rugged Stainless-Steel Housing: Corrosion-resistant design ideal for industrial and environmental conditions.
- Compact, Lightweight Design: Simplifies installation in confined panels or pipelines.
- Fast Response Time: Provides stable and repeatable output for dynamic pressure changes.
- Vibration and Shock Resistant: Built to withstand demanding plant and equipment environments.
- Long Service Life: Reliable, maintenance-free operation for continuous industrial use.
The 060-F440-03 delivers the precision, durability, and reliability needed for high-performance pressure measurement in industrial control systems.
