Description

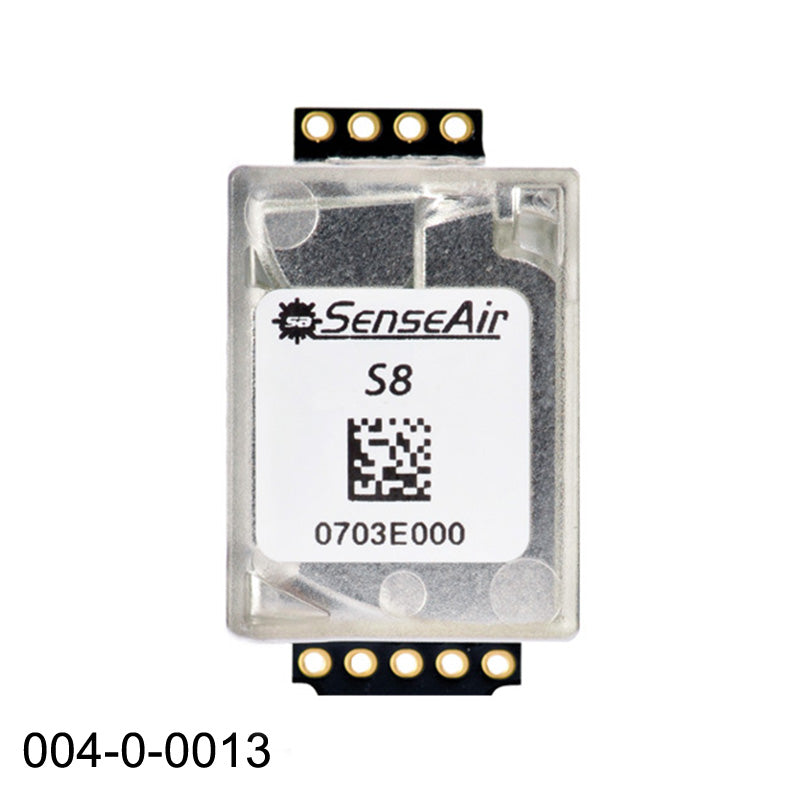

The S8 Miniature 10,000 ppm (1%) Sensor 004-0-0013 (formerly known as SE-0119) is designed to be used as a safety switch for indoor fresh air control and alarm applications like portable heaters or fresh air ventilation in cars.
Features
- Low Power, Small Footprint Design
- Individually Calibrated
- Automatic Background Calibration (ABC)
- Industry-Standard UART Communication
Models
- 004-0-0013: S8 10,000 ppm CO2 Sensor - pinless design for integration into high-volume OEM products. Contact us directly for wholesale pricing on large quantities of this sensor.

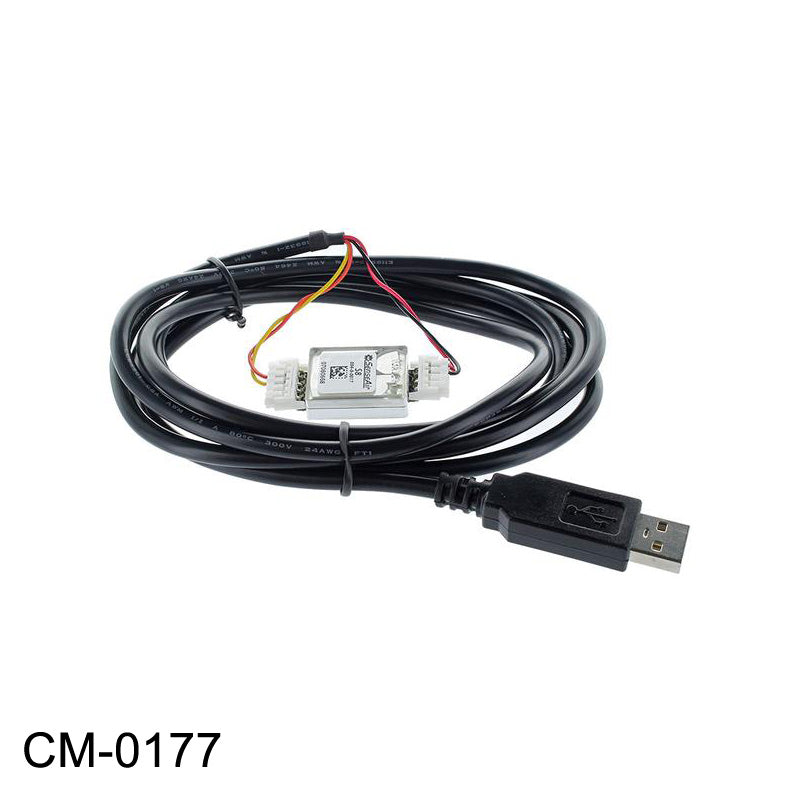

- CM-0177: S8 10,000 ppm CO2 Sensor Development Kit - Contact us directly for wholesale pricing on large quantities of this product.
- CM-200: Sensor Development Kit - Easy to use, simply plug the sensor into the PCB and plug it into your PC via USB. Use our free GasLab® software to measure and graph carbon dioxide or use our library of source code on GitHub to build your own application or for OEM batch testing/configuration. Order the sensor(s) on this page, then order the Devkit here.
Specifications
- CO2 Measurement: non-dispersive infrared (NDIR)
- Measurement Method: diffusion
- Measurement Range: 0-10,000 ppm
- Response time: 90% at 2 minutes
- Measurement Interval: 0.5 Hz (every 2 seconds)
- CO2 Accuracy: ± 70ppm ± 3% of measured value
-
Operation Temperature: 0 to 50°C
- Communication Options: UART (Modbus)
- Available Output: analog
- Maintenance Interval: no maintenance required
- Self-Diagnostics: complete function check on startup
- Dimensions: 32.7 × 19.7 × 8 mm (L x W x H)
-
Alarm Output: Open > 1,000ppm, closed < 800ppm
- Weight: <8 grams
- Sensor Life Expectancy: > 15 years
Electrical / Mechanical
- Power Input: 4.5V - 5.25 VDC
- Max Current: 300 mA
- PWM output: 0 to 100% duty cycle for 0 to 2,000 ppm
- Power Consumption: 300mA peak, 30mA average
Warranty
- 90 days - See CO2Meter Terms and Conditions.
Connecting to Raspberry Pi via UART (pdf)
Raspberry Pi Sample Code (ZIP)
Accessories
Gas Sensor Development Kit - designed to provide customers with an easy drop-in solution. Includes our free Gaslab data logging software. Sensor sold separately.
