Description

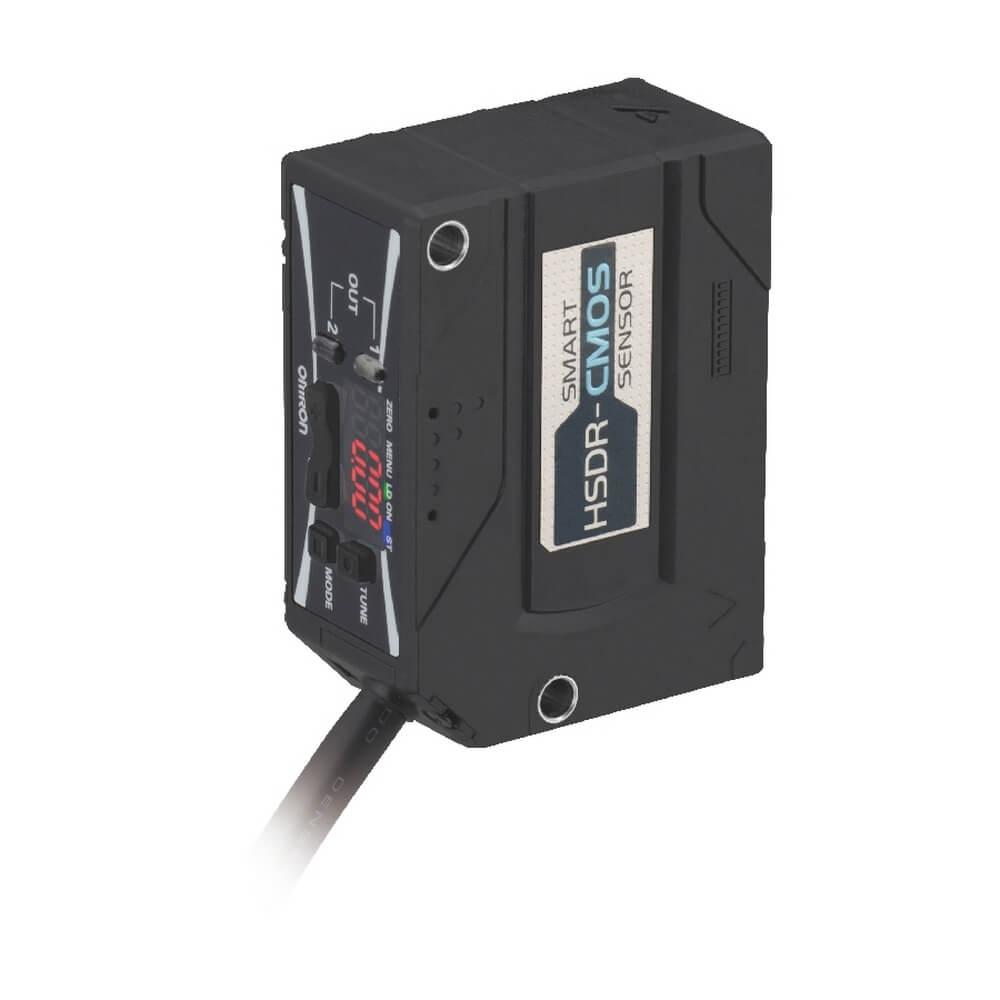

The Omron ZX1-LD300A61 is a laser displacement sensor designed for non-contact distance and position measurement in industrial automation applications. It provides stable and accurate detection over a wide measuring range using reflective laser technology. This sensor is suitable for precision inspection and positioning tasks in harsh industrial environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron Automation and Safety |
| Category |
Sensors |
| Part Number |
ZX1-LD300A61 |
| Subcategory |
Photoelectric Sensors |
| Sensing Method |
Reflective laser displacement |
| Reference Distance |
300 mm |
| Measuring Range |
150 to 450 mm |
| Geometrical Resolution |
0.03 mm |
| Output Type |
NPN open collector |
| Response Time |
100 ms |
| Spot Size |
0.52 mm |
| Ingress Protection |
IP67 |
| Operating Temperature |
-10°C to 55°C |
| Connection Method |
Cable |
| Cable Length |
2 m |
| Weight |
210 g |
Information About ZX1-LD300A61
The ZX1-LD300A61 is a laser displacement sensor from Omron Automation and Safety designed for reflective distance measurement. It operates with a reference distance of 300 mm and supports a measuring range from 150 mm to 450 mm, allowing flexible installation. The sensor uses an NPN open-collector output and is supplied as a cable-connected unit for straightforward integration. With an IP67-rated housing, it is suitable for use in environments exposed to dust and moisture.
Key Features:
-
Laser displacement sensing: Enables accurate non-contact distance measurement using reflective technology
-
Wide measuring range: Supports measurements from 150 mm to 450 mm around a 300 mm reference distance
-
High geometrical resolution: Provides precise detection with 0.03 mm resolution
-
NPN output configuration: Compatible with common industrial control systems
-
Compact sensor design: Allows installation in space-constrained applications
-
IP67 protection rating: Ensures reliable operation in demanding industrial environments
-
Cable connection: Simplifies wiring and system integration
The ZX1-LD300A61 delivers the reliability and precision required for industrial measurement and inspection applications.
