Description

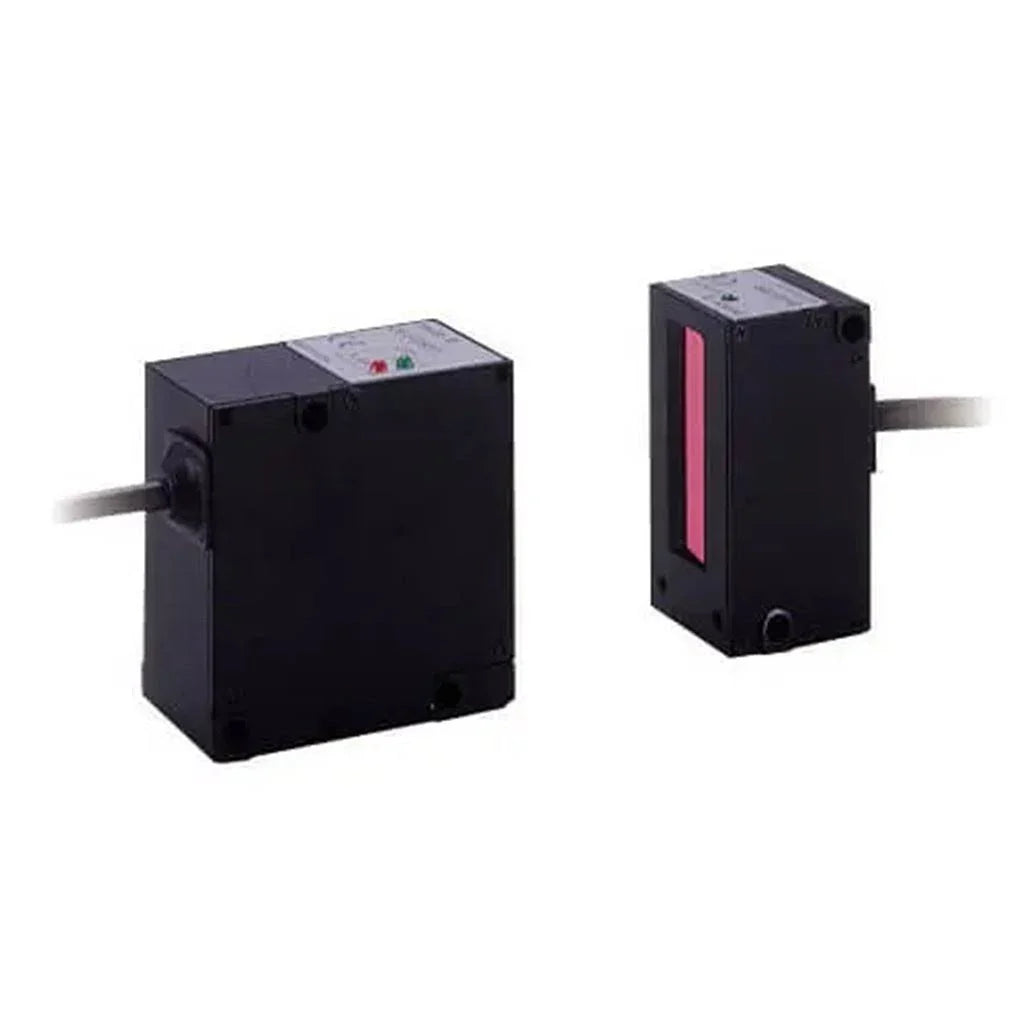

The Omron ZX-GT28S41 is a smart laser micrometer sensor designed for high-precision dimensional measurement in industrial automation. It uses CCD-based through-beam laser technology to accurately detect edges, diameters, and object positions across a wide range of materials. The sensor delivers stable and fast measurements even on transparent or reflective surfaces.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Sensors |
| Part Number |
ZX-GT28S41 |
| Subcategory |
Laser Measurement Sensors |
| Sensor Type |
Smart Laser Micrometer |
| Sensing Method |
Through-Beam |
| Sensing Distance |
0 to 500 mm |
| Light Source |
Red LED (650 nm) |
| Measurement Accuracy |
5–10 µm |
| Response Time |
500 µs |
| Output Configuration |
PNP |
| Supply Voltage |
24 VDC |
| Connection Method |
Cable |
| Cable Length |
2 m |
| Ingress Protection |
IP40 |
| Operating Temperature |
0°C to 40°C |
| Weight |
Approx. 550 g
|
Information About ZX-GT28S41
The ZX-GT28S41 is part of Omron’s ZX-GT Smart Laser Measurement series, developed for non-contact precision measurement tasks. It operates as a transmitter–receiver laser micrometer and supports accurate measurements over long sensing distances. The sensor integrates easily into automation systems using a 24 VDC supply and PNP output configuration. Its CCD-based optical design ensures consistent performance in challenging industrial environments.
Key Features:
-
Through-beam laser measurement: Enables precise edge and diameter detection
-
CCD-based sensing technology: Maintains accuracy on transparent and reflective surfaces
-
High measurement accuracy: Supports precision in the 5–10 µm range
-
Long sensing distance: Operates effectively up to 500 mm
-
PNP output configuration: Compatible with standard industrial control systems
-
Fast response time: Supports high-speed measurement applications
-
Cable connection: Includes fixed 2 m cable for stable installation
The ZX-GT28S41 delivers the reliability and precision required for high-accuracy laser measurement and inspection applications.
