Description

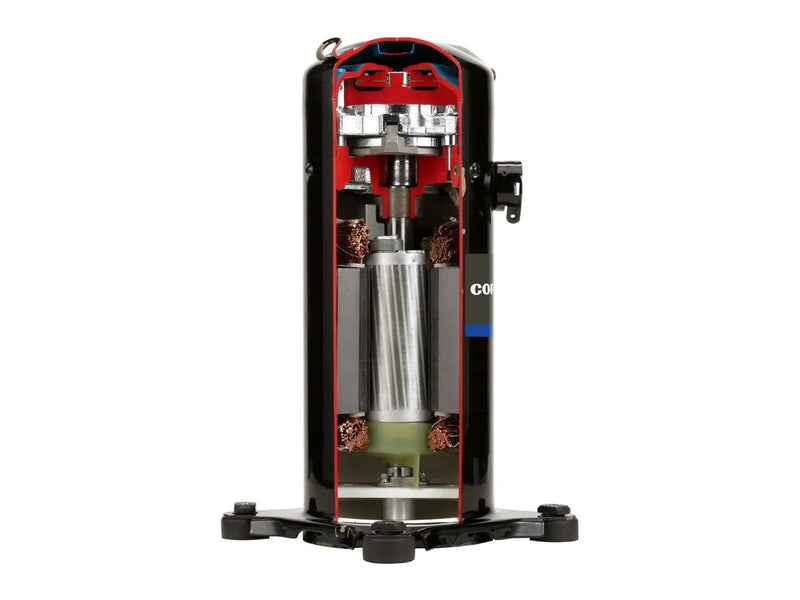

The Copeland ZPD122KCE-TFD-950 is a digital scroll compressor designed for air conditioning and heat pump applications using R-410A refrigerant. It provides approximately 122,000 BTU per hour cooling capacity and operates on 460 VAC, three-phase power. Built for high-temperature and high-pressure systems, it features digital modulation for precise capacity control.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Copeland |
| Category |
HVAC |
| Part Number |
ZPD122KCE-TFD-950 |
| Subcategory |
Refrigeration Compressor |
| Series |
ZPD |
| Compressor Type |
Hermetic Digital Scroll |
| Cooling Capacity |
122,000–123,000 Btu/hr |
| Refrigerant Type |
R-410A |
| Voltage Rating |
380/420 VAC (50 Hz); 460 VAC (60 Hz) |
| Phase |
3 |
| Max RLA |
17.9 A |
| Locked Rotor Amps (LRA) |
140 A |
| Compressor Oil |
Polyol Ester (POE), 3MA |
| Suction Line Size |
1-1/8 in |
| Liquid Line Size |
7/8 in |
| Height |
24.3 in |
| Length |
10.61 in |
| Width |
10.32 in |
| Application |
Air Conditioning and Heat Pump |
| Weight |
127.00 lbs |
Information About ZPD122KCE-TFD-950
The ZPD122KCE-TFD-950 belongs to the Copeland ZPD series of hermetic digital scroll compressors intended for commercial HVAC installations. It operates at 380/420 VAC (50 Hz) or 460 VAC (60 Hz) in three-phase configurations and uses polyol ester (POE) oil compatible with R-410A refrigerant. The compressor includes internal inherent motor protection and is designed for use with a contactor. Digital modulation technology allows output adjustment to match system demand, supporting improved efficiency and temperature stability in air conditioning and heat pump systems.
Key Features:
-
Digital Scroll Modulation: Provides adjustable capacity control for improved system performance.
-
122,000 BTU Capacity: Suitable for commercial A/C and heat pump systems.
-
R-410A Refrigerant Compatibility: Designed for high-pressure applications.
-
460 VAC, 3-Phase Operation: Supports industrial and commercial power supplies.
-
Internal Inherent Protection: Integrated motor protection requiring use with a contactor.
-
POE Oil Lubrication: Uses polyol ester oil (3MA) for refrigerant compatibility.
-
High Efficiency Rating: Engineered for EER 11.0 and above.
-
Centrifugal Oil Pump: Ensures consistent internal lubrication.
The ZPD122KCE-TFD-950 delivers the reliability and precision required for commercial HVAC compressor applications.
