| Specifications |

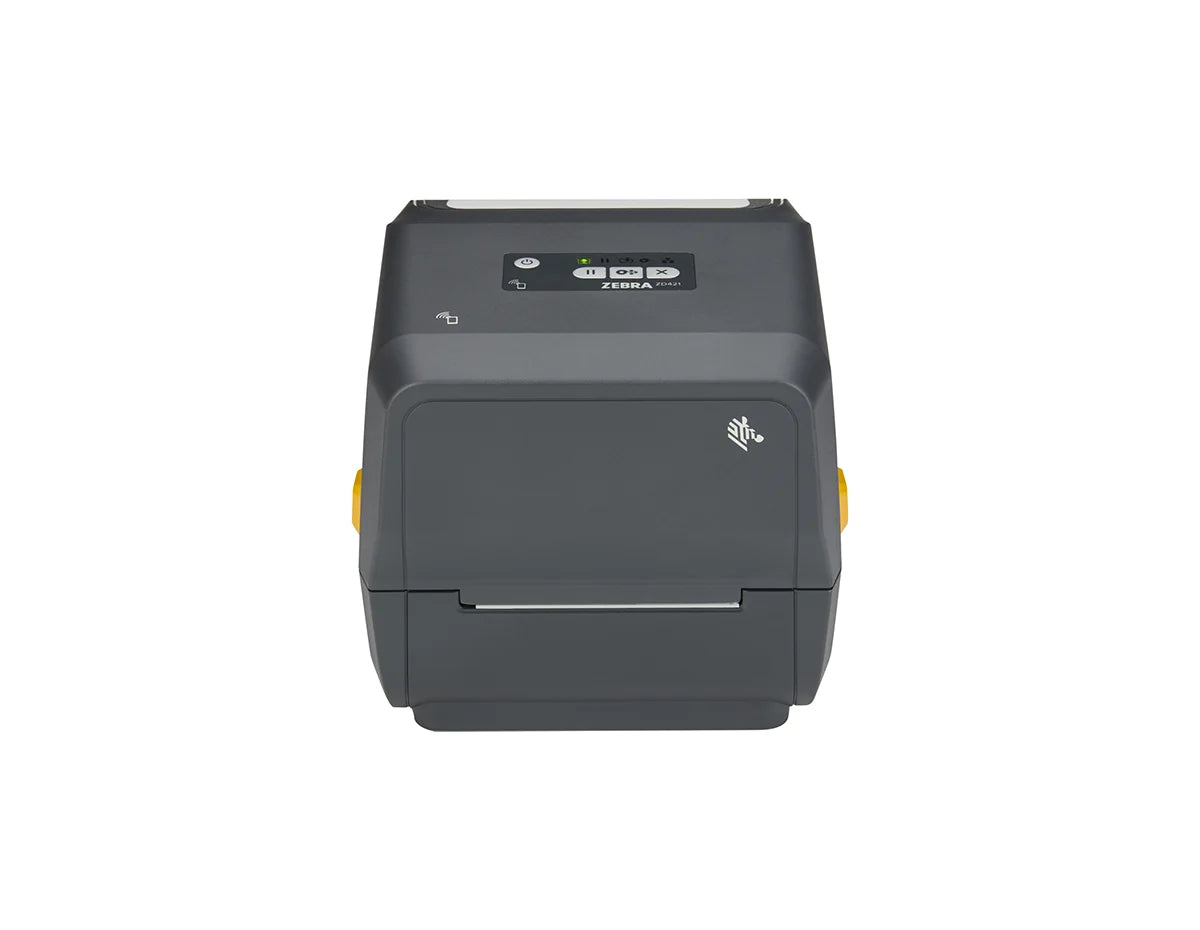

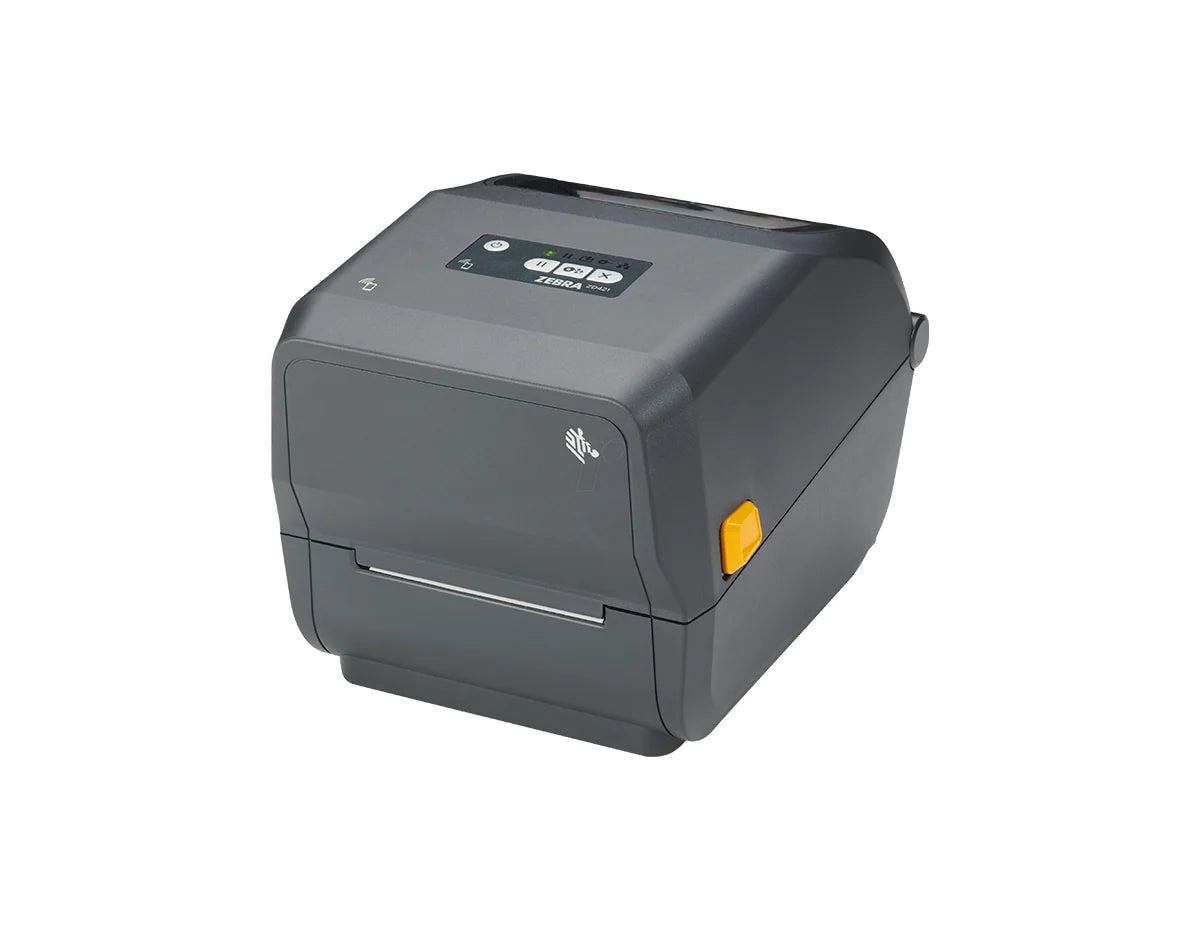

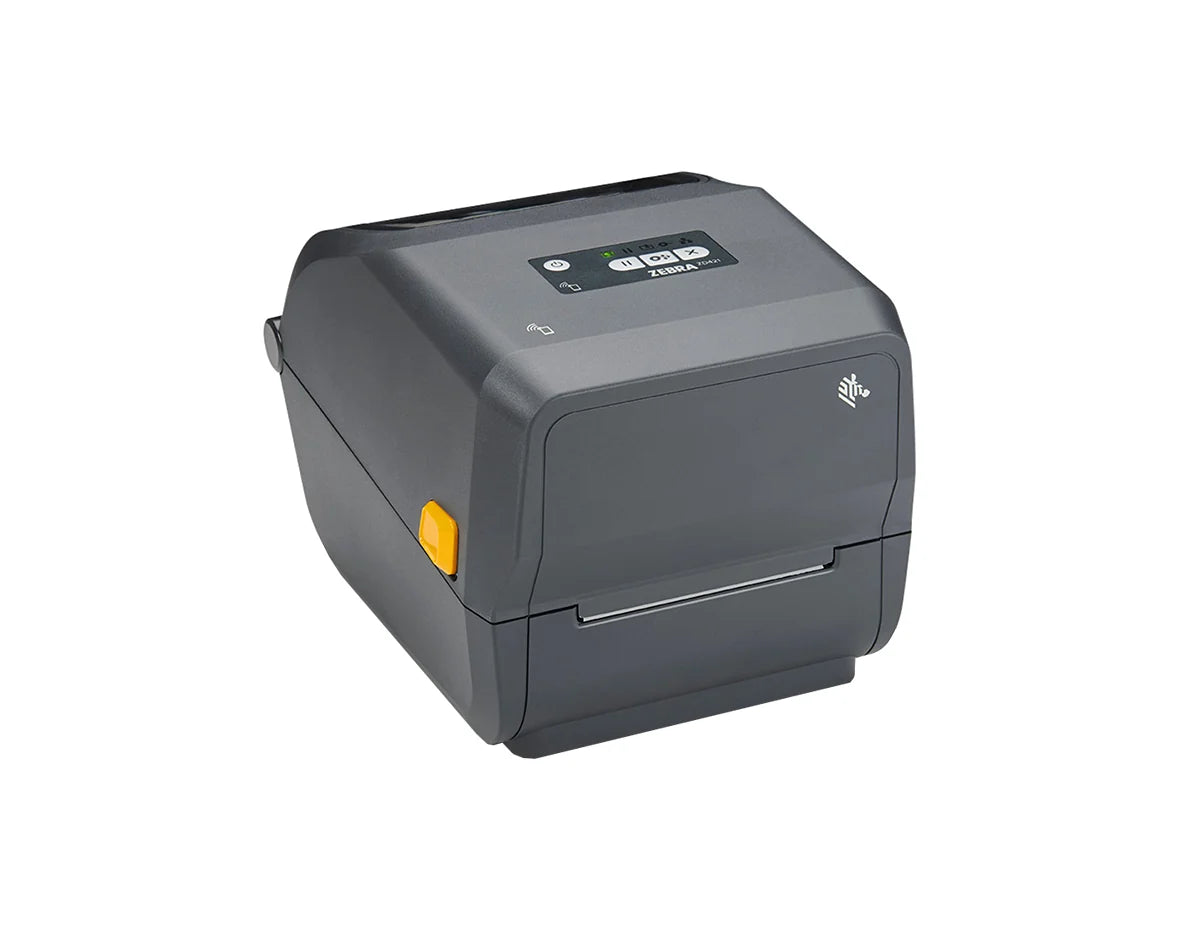

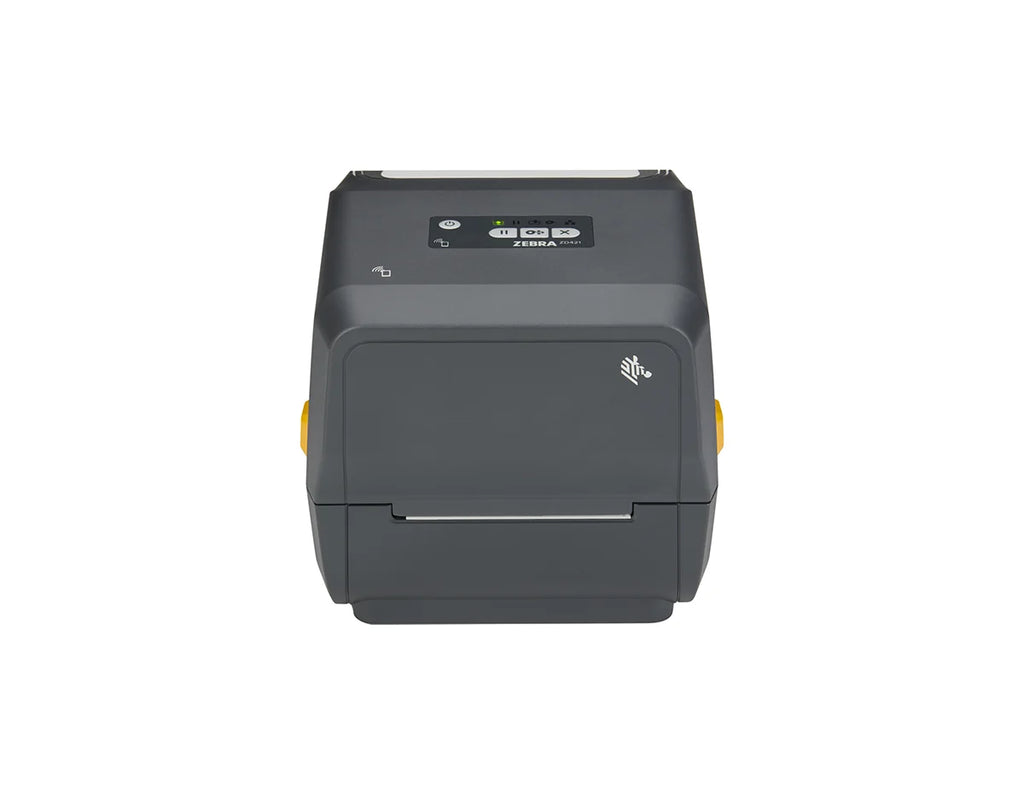

Zebra ZD4A042-301M00EZ Printer (ZD421t) |
| Dimension |
10.0 in. L x 8.0 in. W x 7.0 in. H
254 mm L x 202 mm W x 177 mm H |
| Weight |
5.0 lbs./2.3 kg |
| Operating System |
Link-OS |
| Resolution |
203 dpi/8 dots per mm
300 dpi/12 dots per mm (optional) |
| Memory |
512 MB Flash; 256MB SDRAM
64 MB user available non-volatile memory
8 MB user available SDRAM |
| Maximum Print Width |
4.09 in./104 mm for 203 and 300 dpi |
| Maximum Print Speed |
6 in./152 mm per second (203 dpi)
4 in./102 mm per second (300 dpi) |
| Media Sensors |
Full width, moveable reflective/black mark sensor; multi-position transmissive/gap sensor |
| Firmware |
ZPL II; EPL 2; XML; ZBI; PDF Direct |
| Label Length |
Maximum: 39.0 in./991 mm
Minimum: 0.25 in./6.4 mm |
| Media Width |
0.585 in./15 mm to 4.65 in./118 mm |
| Media Roll Size |
Maximum outer diameter: 5.00 in./127 mm
Core inner diameter: 0.5 in. (12.7 mm) and 1.0 in.
(25.4 mm) standard, 1.5 in. (38.1), 2.0 in., (50.8 mm)
and 3.0 in. (76.2 mm) using optional adapters |
| Media Thickness |
0.003 in. (0.08 mm) min.; 0.0075 in. (0.19 mm) max. |
| Media Types |
Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands |
| Ribbon Outside Diameter |
2.6 in./66 mm (300 m); 1.34 in./34 mm (74 m) |
| Ribbon Standard Length |
243 ft. (74 m) |
| Ribbon Ratio |
1:4 ribbon to media (300 m)
1:1 ribbon to media (74 m) |
| Ribbon Width |
4.3 in./109.2 mm |
| Ribbon Core I.D. |
300-meter ribbon 1 in./25.4 mm
74-meter ribbon 0.5 in./12.7 mm |
| Operating Temp. |
40° to 105° F/4.4° to 41° C |
| Storage Temp. |
(-40° to 140° F/-40° to 60° C) |
| Operating Humidity |
10% to 90% non-condensing |
| Storage Humidity |
5% to 95% non-condensing |
| Electrical |
Auto-detectable (PFC Compliant) 100-240VAC,
50-60Hz; ENERGY STAR certified; Energy Efficiency Level VI certified; optional 2750 mAh battery; Healthcare models include IEC60601-1 certified power supply |
| Bar Code Ratios |
2:1 and 3:1 |
| 1D Bar Codes |
Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code |
| 2D Bar Codes |
Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec |
| Fonts and Graphics |
16 resident expandable ZPL II bitmap fonts, two resident scalable ZPL fonts, five resident expandable EPL2 fonts, native open-type font support, Unicode compliant. China units include SimSun simplified Chinese font |
| Regulatory |
IEC 60950-1, IEC 62368-1, EN55022 Class B, EN55024, EN55035, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus CE Marking, VCCI, C-Tick, S-Mark, CCC, CU, BSMI, KCC, SABS, IN-Metro, BIS, NOM |
| Environmental Compliance |
Environment
• RoHS Directive 2011/65/EU; Amendment 2015/863
A complete list of product and materials compliance, please visit:
www.zebra.com/environment |
| Included In The Box |
Printer, empty ribbon take-up cores (1 in. and 0.5 in.)*, 300 m ribbon core adapters for non-Zebra ribbon (2)*, AC power supply, power cord(s), USB cable, Quick Start Guide, Regulatory Guide
* Empty ribbon take-up cores and ribbon core adapters included with ZD421 thermal transfer models only |
