Description

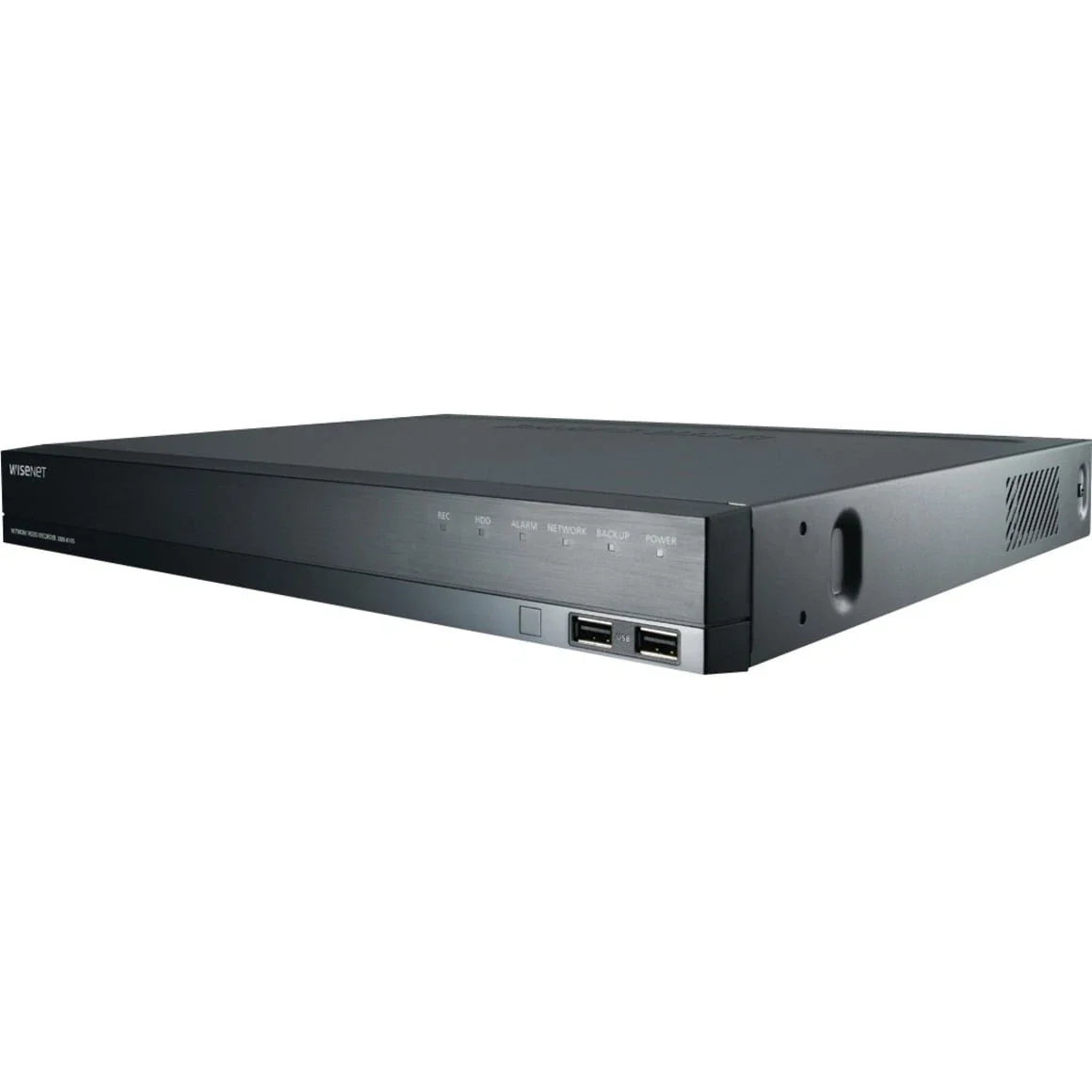

The Samsung Hanwha XRN-820S-4TB is an 8-channel 4K network video recorder (NVR) equipped with built-in PoE+ ports and 4 TB pre-installed storage. Supporting up to 32MP camera input and 100 Mbps recording throughput, it delivers reliable, high-performance surveillance for professional IP security systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Samsung Hanwha Vision |
| Category |
Security Systems |
| Part Number |
XRN-820S-4TB |
| Subcategory |
Network Video Recorder |
| Series |
Wisenet X Series |
| Channels |
8 IP Channels |
| Recording Throughput |
100 Mbps total |
| Compression Formats |
H.265, H.264, MJPEG |
| Maximum Camera Resolution |
Up to 32MP |
| Pre-Installed Storage |
4TB HDD |
| Storage Expansion |
Up to 12TB (2 × SATA) |
| Video Outputs |
1 × HDMI (4K), 1 × VGA |
| Display Resolution |
HDMI: 3840×2160 @ 60Hz, VGA: 1920×1080 |
| PoE Ports |
8 × PoE+ (IEEE 802.3at) |
| PoE Power Budget |
100W total |
| Network Interface |
1 × RJ-45 (10/100/1000 Mbps Ethernet) |
| Audio I/O |
1 in / 1 out |
| USB Ports |
2 × USB 2.0, 1 × USB 3.0 |
| Alarm I/O |
4 in / 1 out |
| Supported Protocols |
TCP/IP, UDP, DHCP, RTSP, NTP, HTTP, HTTPS |
| Features |
WiseStream, AI Search, ARB, Fisheye Dewarping |
| Operating System |
Embedded Linux |
| Operating Temperature |
14°F to 131°F (–10°C to +55°C) |
| Construction |
Metal housing, black finish |
| Mounting Type |
Desktop or rack shelf |
| Dimensions |
300 × 52 × 223 mm (11.8 × 2.0 × 8.8 in) |
| Weight |
5.70 lbs (with HDD) |
Information About XRN-820S-4TB
The XRN-820S-4TB is part of Hanwha Vision’s Wisenet X Series, designed for small to medium-scale security installations requiring high-resolution video recording. This NVR supports up to 8 IP channels with native PoE+ power delivery, simplifying installation by combining data and power on a single cable. It supports multiple video compression formats including H.265, H.264, and MJPEG, ensuring efficient bandwidth use while maintaining excellent image quality. With dual HDMI/VGA outputs, AI-assisted search, fisheye dewarping, and WiseStream compression technology, it offers advanced analytics and smooth 4K playback. Expandable to 12 TB via dual SATA interfaces, the unit ensures dependable long-term storage for commercial and industrial security applications.
Key Features:
- 8-Channel NVR: Supports up to eight IP cameras with built-in PoE+ power.
- 4K Ultra HD Output: Delivers up to 32MP resolution recording and 4K video playback via HDMI.
- Pre-Installed Storage: Includes 4TB HDD, expandable to 12TB with dual SATA bays.
- Efficient Compression: H.265, H.264, and MJPEG formats with WiseStream bandwidth optimization.
- Built-in PoE+ Ports: Eight 100 Mbps ports with 100W total power budget for plug-and-play setup.
- Dual Display Support: Simultaneous HDMI and VGA outputs for local monitoring.
- AI-Powered Search: Intelligent video analytics for event-based retrieval and AI metadata filtering.
- Fisheye Dewarping: Corrects panoramic camera images for clear, natural viewing.
- Compact Metal Design: Durable indoor enclosure with efficient heat dissipation.
- Remote Access: Compatible with Wisenet Viewer, mobile apps, and cloud integration for remote management.
- Enhanced Reliability: Auto Recovery Backup (ARB) ensures continuous recording during network interruptions.
The XRN-820S-4TB combines high-performance recording, intelligent analytics, and simplified installation — ideal for business, retail, and institutional surveillance systems.
