Overview

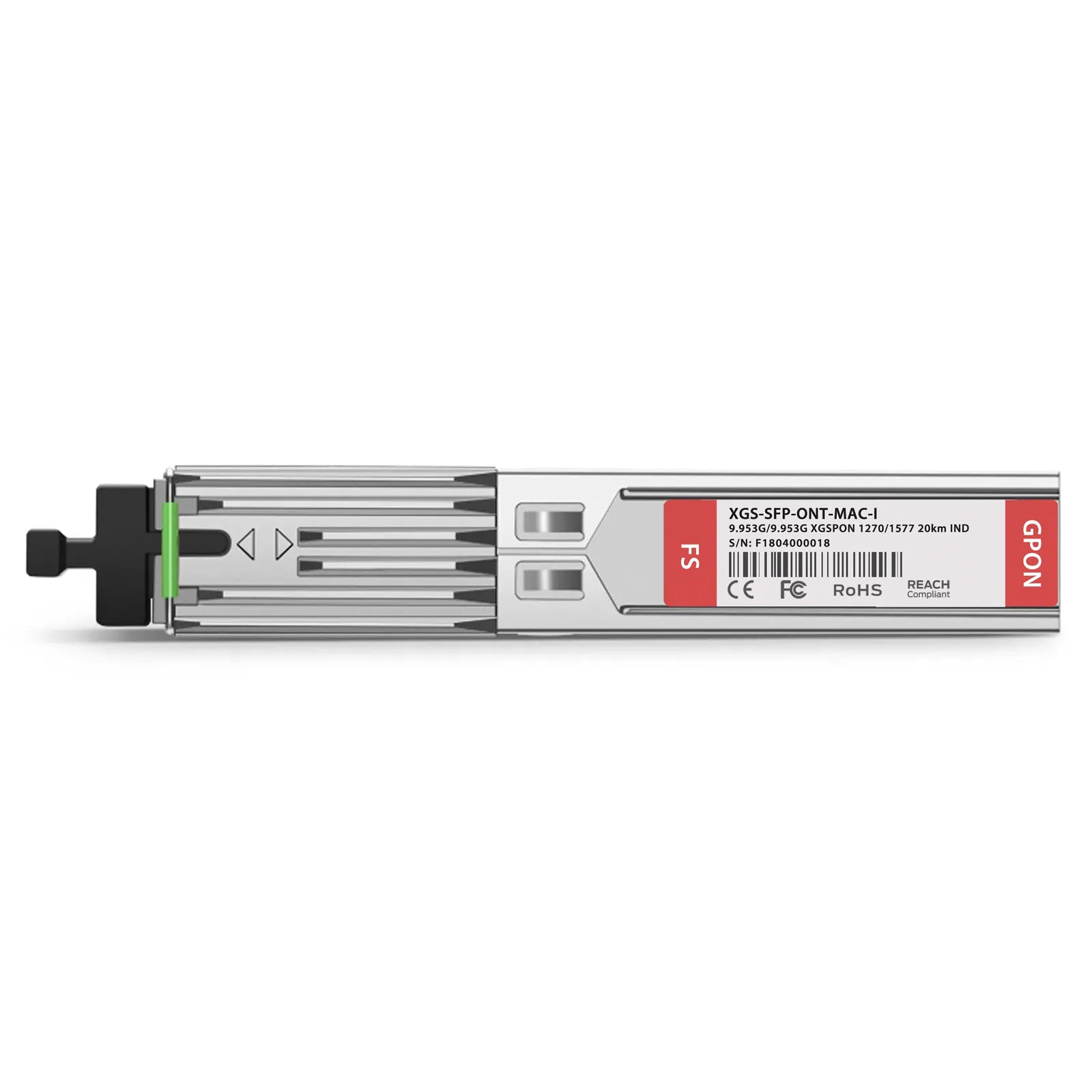

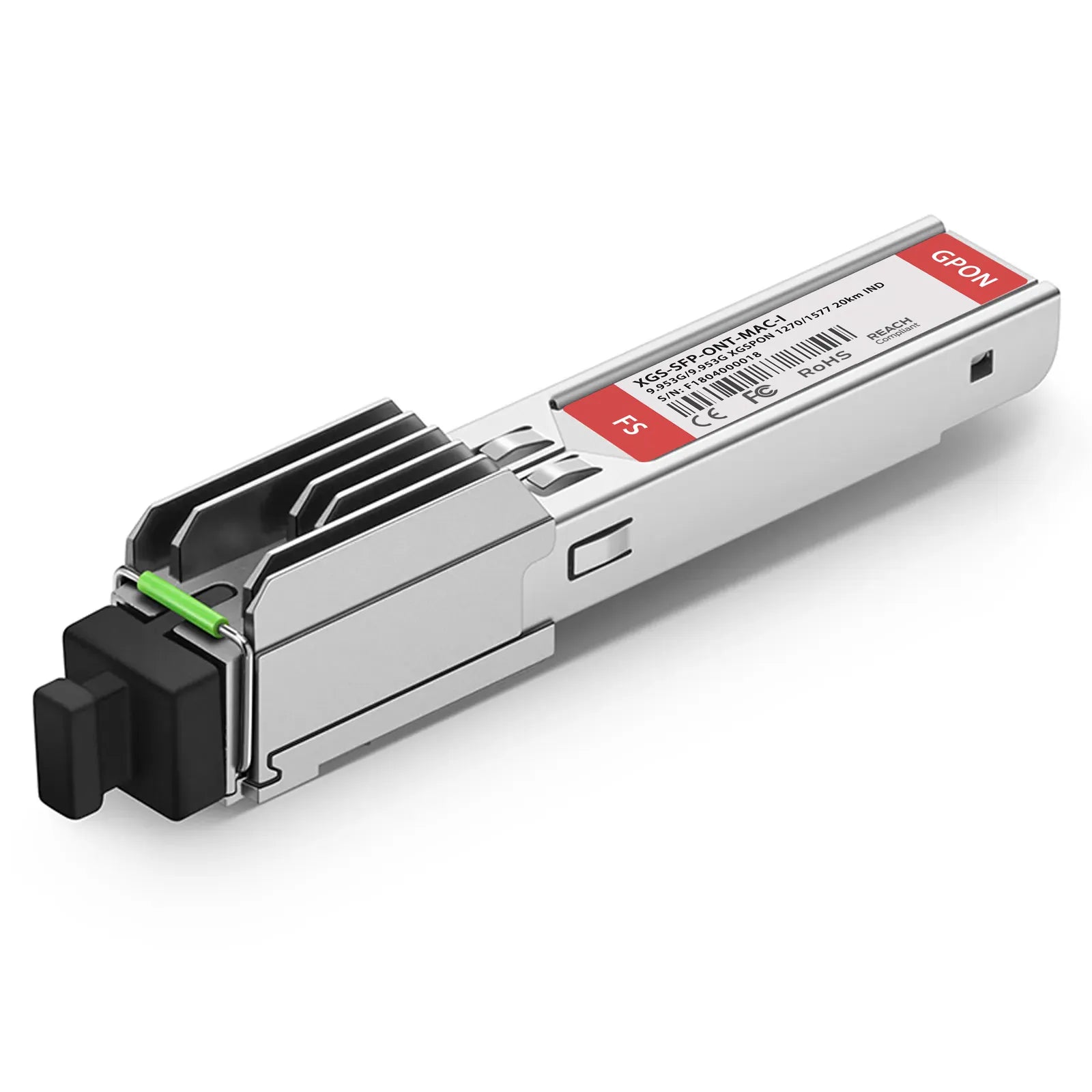

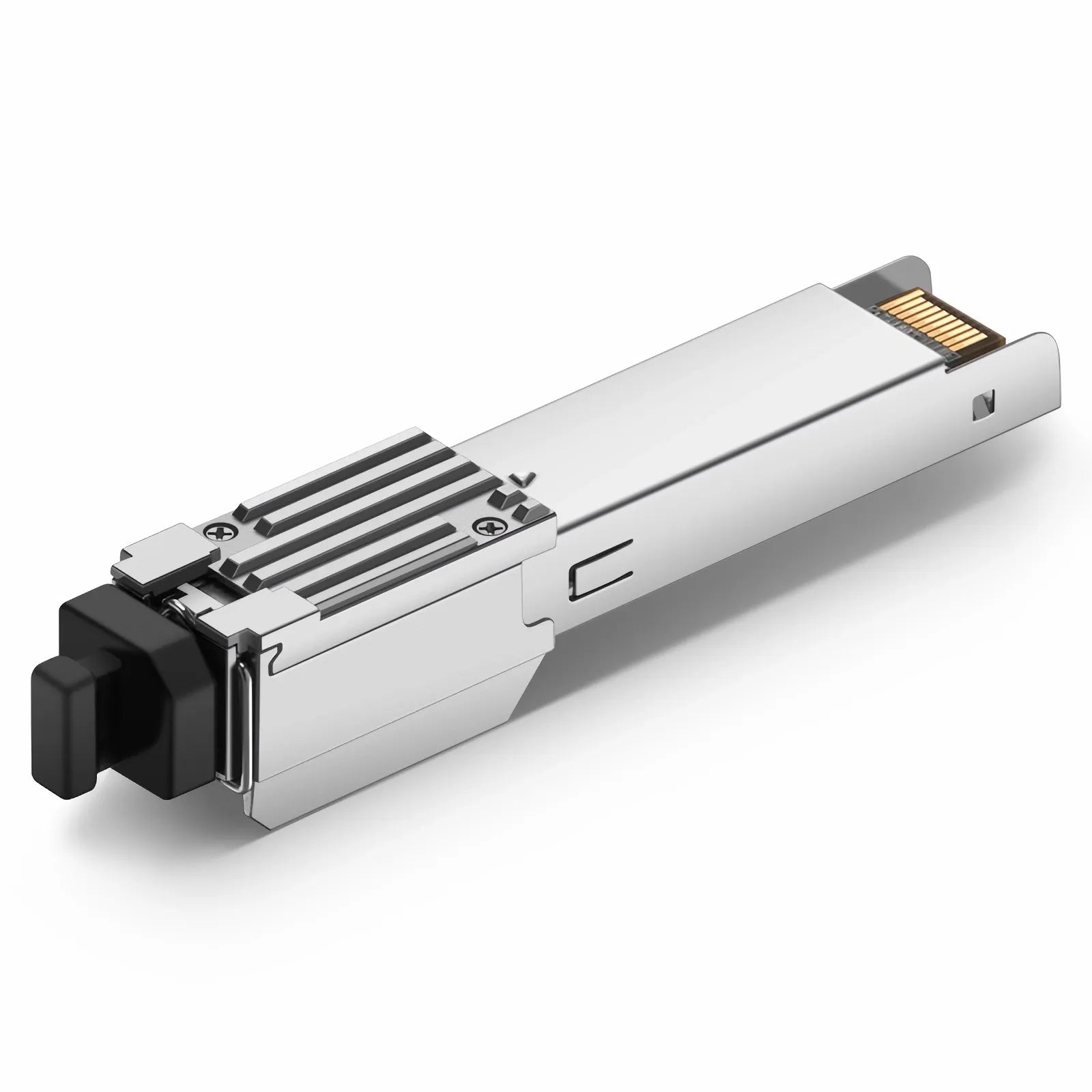

The XGS-SFP-ONT-MAC-I is a high-performance optical transceiver module designed for 10-Gigabit-capable passive optical network (XGS-PON) deployments. It functions as an integrated Optical Network Unit (ONU) by embedding a MAC controller and OMCI stack directly into an SFP+ form factor. This allows the module to handle bidirectional data transmission over a single-mode optical fiber, enabling 9.953 Gbps symmetric upstream and downstream data rates for distances up to 20km.
Key Features
- Integrated MAC and OMCI stack: Performs all ONU functions and FCAPS management directly within the SFP+ module, allowing deployment in standard Ethernet switches and routers.
- Industrial temperature range operation: Engineered to operate in environments from -40°C to 85°C, making it suitable for outdoor and harsh deployment conditions.
- Symmetric 10G throughput: Supports 9.953 Gbps rates for both upstream and downstream, facilitating high-bandwidth business services and fiber access networks.
- Class N1 power budget: Designed for a 29dB link budget, ensuring connectivity over optical paths up to 20km in length.
- Low power consumption: Operates with a power consumption of less than 2.1W, assisting in thermal management within small-form-factor networking equipment.
Technical Specifications
| Part Number |
XGS-SFP-ONT-MAC-I |
| Form Factor |
SFP+ |
| Data Rate |
9.953G (TX/RX) |
| Wavelength |
1270nm (TX) / 1577nm (RX) |
| Transmission Distance |
20km |

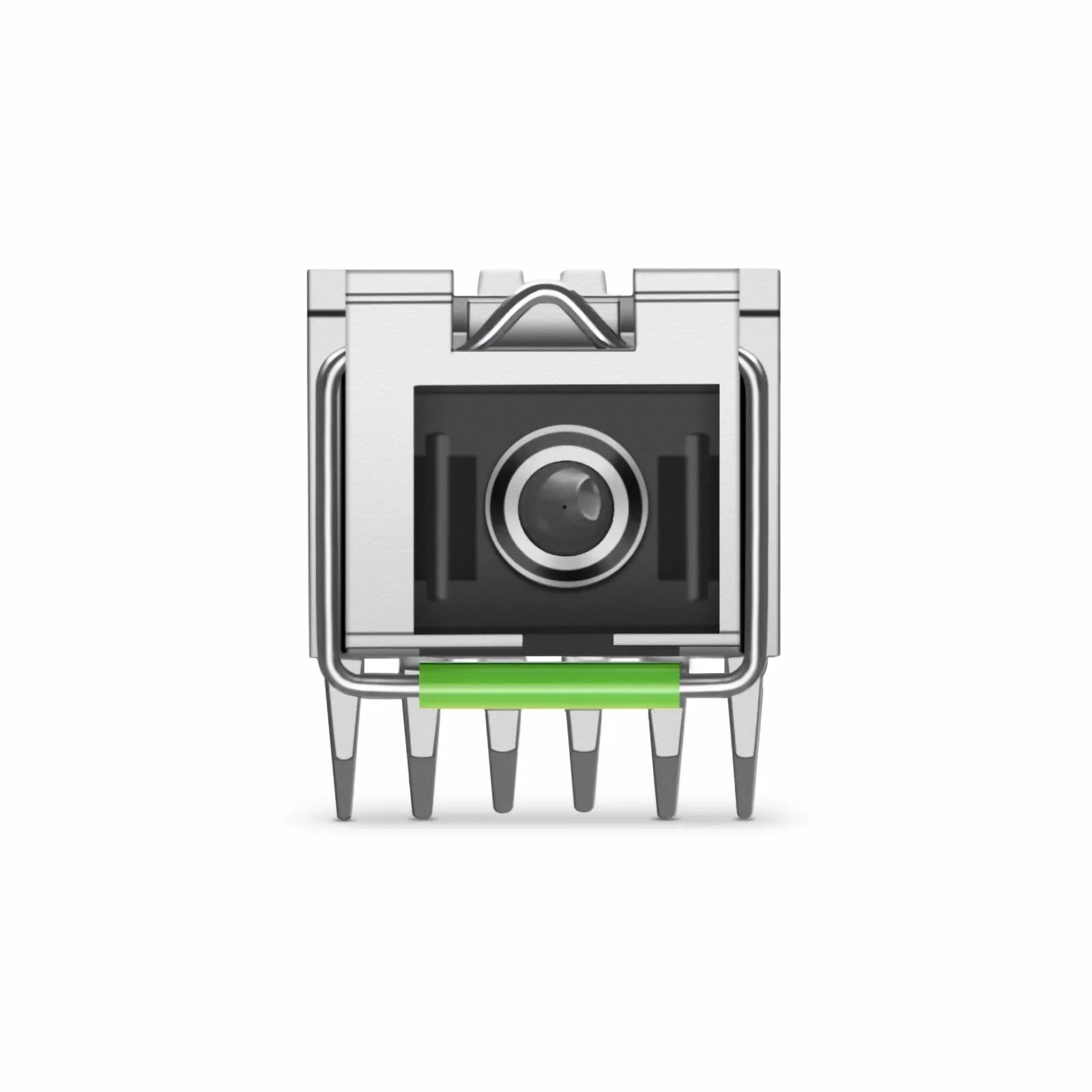

| Optical Connector |
SC/APC Simplex |
| Media Type |
Single-Mode Fiber (SMF) |
| Transmitter Type |
DFB |
| Receiver Type |
APD |
| TX Power |
4 to 9 dBm |
| RX Sensitivity |
<-28.5 dBm |
| Receiver Overload |
<-8 dBm |
| Class |
N1 |
| Max Link Budget |
29 dB |
| Power Consumption |
<2.1W |
| Operating Temperature |
-40°C to 85°C |
| Management |
DDM/DOM Supported |
| Standards Compliance |
ITU-T G.9807.1, ITU-T G.988, SFP+ MSA |
