Overview

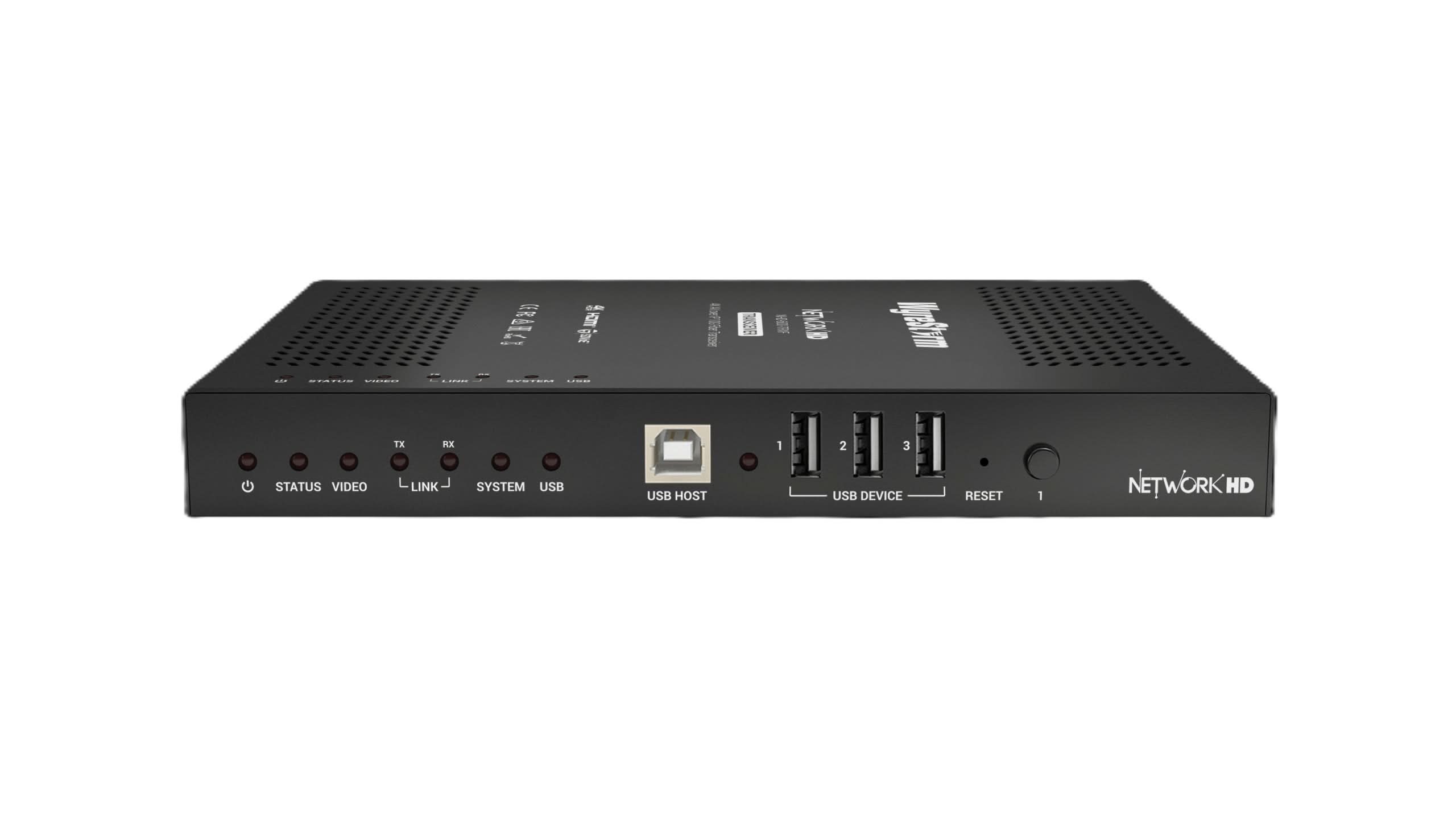

The WyreStorm NHD-600-TRXF is a 4K60 4:4:4 SDVoE fiber optic transceiver from the NetworkHD 600 Series. It is designed for mission-critical A/V over IP applications, such as command centers, medical facilities, and high-end corporate environments, where long-distance, lossless, and zero-latency video distribution is required.
Specifications
Model Number: NHD-600-TRXF
Brand:WyreStorm
Alt Part Number(s): NHD-600-TRXF
Product Type: Transceiver
Technical Description
Brand:WyreStorm
Model: NHD-600-TRXF
Series: NetworkHD 600 Series
Video Resolution (Max): 4096x2160p
Video Encoding/Decoding: SDVoE Pixel Pipeline
Encoding/Decoding: 1080p@60Hz 3.4Gbps 4K UHD@30Hz 4:4:4 8bit 4K UHD@60Hz
Inputs: 1x HDMI 2.0b Input 1x HDMI 2.0b
Outputs: 5-pin 1x10Gb/s SFP+10GBASE-SR: 300m 10km OS1/OS2 single-mode
HDMI: HDCP 2.2, CEC
Ethernet: 1 x 1GbE LAN 8-pin
RS-232: 1x 3-pin Phoenix Connector 2 Way | Broadcast | Routed | API Programmable
IR: 1 x IR TX 3.5mm TS Mono Jack, 1x IR RX 3.5mm TRS Stereo Jack | API Programmable
USB: 3x USB 2.0 Type A, 1x USB 2.0 Type B Host, USB Bandwidth: 480Mbps
Power Supply: 12V 2A DC PSU
Max Power Consumption: Max: 24w, Average: 10w
*
