Overview

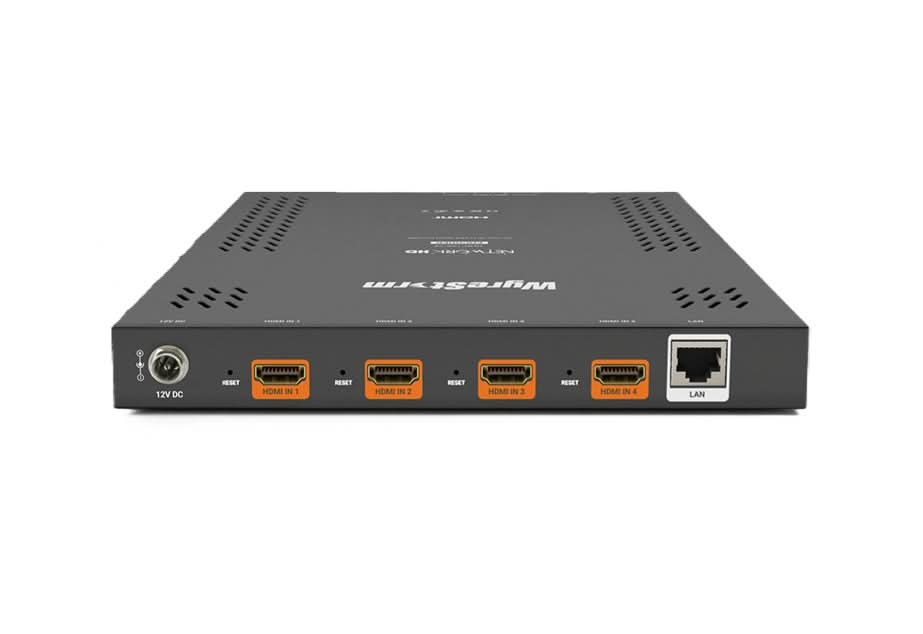

The WyreStorm NHD-140-TX is a quad-input H.264 encoder from the NetworkHD 100 series, designed to transmit up to four 1080p video streams simultaneously over a 1 Gigabit Ethernet network. It is a space-saving device, combining four transmitters into one unit, which can be rack-mounted for high-density installations
Specifications
Model Number:NHD-140-TX
Brand:WyreStorm
Alt Part Number(s):NHD-140-TX
Product Type:Encoder
Technical Description
Brand:WyreStorm
Model:NHD-140-TX
Series: NetworkHD 100 Series
Video Resolution: Resolutions listed are 8Bit RGB. 1920x1080p @24/25/30/50/60Hz
End to End Latency: ~79ms (low latency mode) | ~250ms (high quality mode)
Encoding Data Rate Max: 30Mb/s ?C per stream (120 Mb/s total)
Audio Formats: 2ch LPCM 48KHz
Inputs: 4x HDMI In: 19-pin HDMI Type A
Outputs: 1x LAN: 8-pin RJ-45 (AV Transmission to RX)
Maximum Pixel Clock: 165MHz
HDMI: HDCP 1.4
Ethernet: 1x LAN: 8-pin RJ-45 ANSI/TIA-568 8P8C, 1000Base-T
Power Supply: 12V DC
Max Power Consumption: 19.44W
Height: 1.0"
Width: 8.46"
Depth: 10.24"
*
