Description
The Cisco WS-X45-SUP7L-E is a high-performance Supervisor Engine for the Cisco Catalyst 4500 E-Series switches, delivering advanced Layer 2/3 switching with up to 48 Gbps per slot bandwidth.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Cisco
|
| Category |
|
| Part Number |
WS-X45-SUP7L-E |
| Subcatecory |
|
|
Centralized Switching Capacity
|
520 Gbps |
|
Per-slot Switching Capacity
|
48 Gbps |
|
Throughput
|
225 Mpps for IPv4
110 Mpps for IPv6
225 Mpps for L2 Bridging |
|
IPv4 Routing Entries
|
64,000 |
|
IPv6 Routing Entries
|
32,000 |
|
Multicast Routes
|
32,000 |
|
CPU
|
Dual core; 1.5 GHz |
|
CPU Queues
|
64 |
|
Synchronous Dynamic RAM (SDRAM)
|
2 GB |
|
Boot Flash
|
1G |
|
SPAN
|
8 bidirectional sessions (ingress and egress) |
|
Weight
|
9.50 lbs |
Information About WS-X45-SUP7L-E

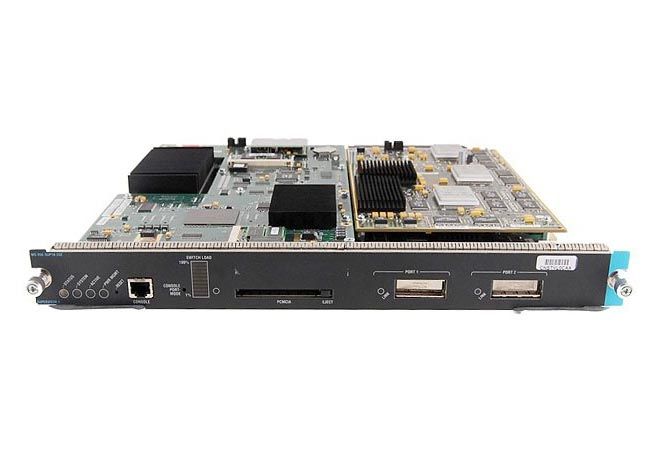

The Cisco WS-X45-SUP7L-E is a high-performance Supervisor Engine designed to provide scalable, high-capacity Layer 2/3 switching and routing for Cisco Catalyst 4500 E-Series switches. With advanced resiliency, Virtual Switching System (VSS) support, and robust security features, it offers reliable and flexible network management ideal for enterprise campus and distribution deployments.
Key Features:
Type: Supervisor Engine for Cisco Catalyst 4500 E-Series with advanced Layer 2/3 capabilities
Supported Devices: Compatible with Cisco Catalyst 4500 E-Series chassis and supported line cards
Functionality: Provides up to 848 Gbps system bandwidth and 48 Gbps per slot; supports advanced routing protocols (OSPF, EIGRP, BGP), QoS, and VSS for high availability
Form Factor: Modular Supervisor Engine design for flexible deployment within Catalyst 4500 E-Series chassis
Installation: Supports redundant supervisor configurations and In-Service Software Upgrade (ISSU) for minimal downtime
Construction: Enterprise-grade build designed for high performance, scalability, and long-term operation in demanding network environments
The WS-X45-SUP7L-E is an ideal solution for organizations seeking resilient, scalable, and feature-rich Supervisor Engine functionality to support advanced Layer 2/3 services in enterprise and campus networks.
