Description

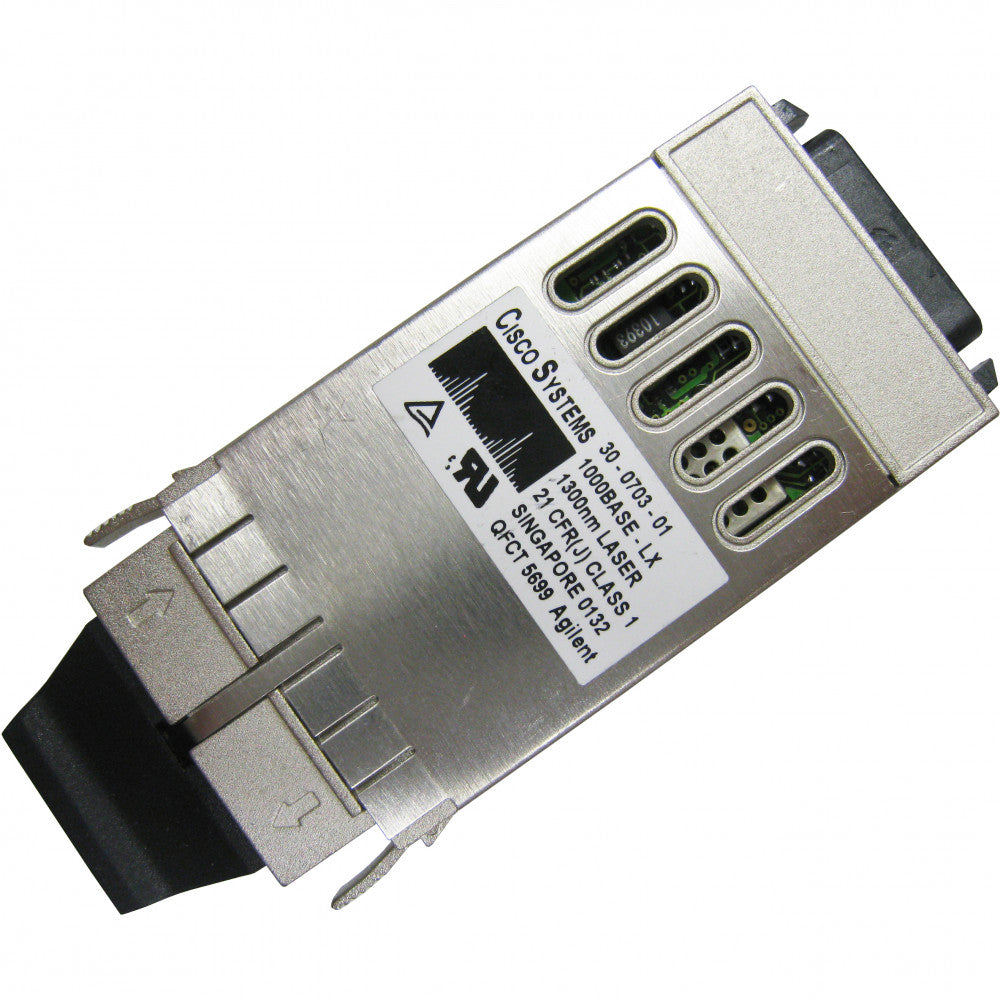

The Cisco WS-G5486 is a 1000BASE-LX/LH Gigabit Interface Converter (GBIC) transceiver module designed for long-range fiber optic connections over single-mode or multimode fiber. Operating at 1310 nm, it supports distances up to 10 km over single-mode fiber (SMF) and 550 meters over multimode fiber (MMF).





Technical Specifications

Condition	New/Never Used Surplus
Brand	Cisco
Category	Network Hardware
Part Number	WS-G5486
Subcategory	Optical Transceiver Module
Interfaces/Ports Details	1 x SC Duplex 1000Base-LX/LH Network
Media Type Supported	Optical Fiber
Fiber Optic Cable Standard	9/125 µm 62.5/125 µm
Fiber Mode Supported	Gigabit Ethernet
Network Technology	1000Base-LX/LH
Form Factor	Hot-swappable
Height	16"
Width	1.1"
Depth	10"
Weight	4.75 lbs





Information About WS-G5486

The Cisco WS-G5486 is a Gigabit Interface Converter (GBIC) module that provides long-range Gigabit Ethernet connectivity over fiber optic cabling. Designed for use in Cisco switches and routers that support GBIC modules, it is compliant with the 1000BASE-LX/LH standard, operating at a wavelength of 1310 nm. It delivers reliable, high-speed data transfer for enterprise and service provider networks requiring extended fiber links.

Key Features:

• Product Type: Optical Transceiver Module (GBIC)

• Standard: 1000BASE-LX/LH (IEEE 802.3z compliant)

• Connector Type: SC duplex

• Interface Type: GBIC (hot-swappable)

• Data Rate: 1 Gbps (Gigabit Ethernet)

• Wavelength: 1310 nm

• Transmission Distance:

  • Up to 10 km over single-mode fiber (SMF)

  • Up to 550 meters over multimode fiber (MMF) with mode conditioning patch cable

• Compatibility: Compatible with Cisco devices that support GBICs (e.g., Catalyst switches)

• Form Factor: Plug-in module

• Hot-Swappable: Yes, enables replacement without service disruption

• Power Consumption: Low, suitable for continuous operation

• Operating Temperature: Typically 0°C to 70°C (standard commercial range)

The Cisco WS-G5486 provides a cost-effective and dependable solution for extending Gigabit Ethernet connections across large buildings or campuses using fiber optics, making it a popular choice for enterprise backbones and telecom networks.
