Description

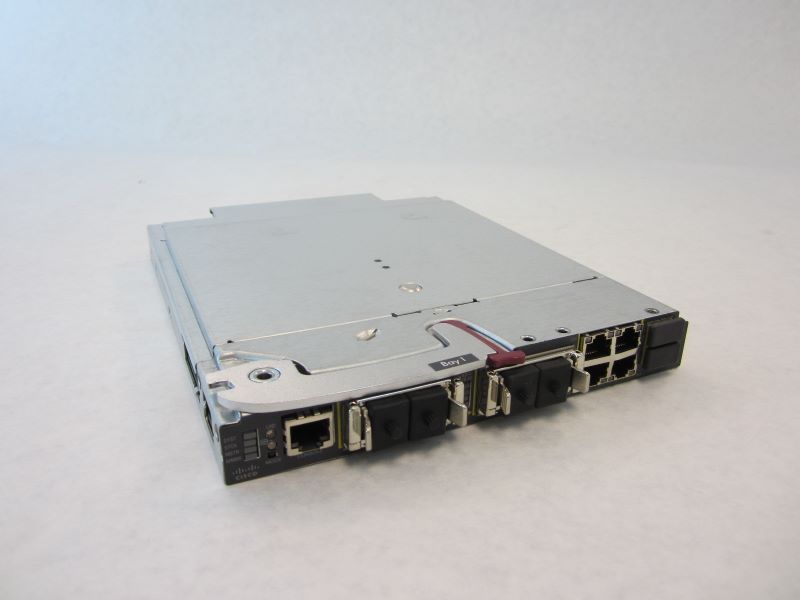

The Cisco WS-CBS3120X-S Catalyst Blade Switch is a compact Layer 3 switch designed for HP c-Class BladeSystem enclosures, delivering Gigabit and 10 Gigabit Ethernet connectivity with advanced management features.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Cisco
|
| Category |
|
| Part Number |
WS-CBS3120X-S
|
| Subcatecory |
|
| Series |
Catalyst 3120X |
| Total Network Ports |
4 x 10/100/1000Base-T |
| Expansion Slots |
2 x X2-based 10GbE |
| Ethernet Technology |
Gigabit Ethernet |
| Network Technology |
10/100/1000Base-T |
| Layer Supported |
Layer 3 |
| Manageable |
Yes (CLI, SNMP, web interface) |
| Height |
1.1 in (2.79 cm) |
| Width |
7.6 in (19.3 cm) |
| Depth |
10.9 in (27.7 cm) |
| Weight |
3 lb (1.36 kg) |
Information About WS-CBS3120X-S
The WS-CBS3120X-S is a Catalyst Blade Switch developed by Cisco for seamless integration with HP c-Class BladeSystem environments. It offers 4 auto-sensing 10/100/1000Base-T Ethernet ports for flexible server connectivity and 2 X2-based 10 Gigabit Ethernet uplink ports, ensuring high-speed access to the network core. With Layer 3 capabilities, this switch enables robust routing, VLAN support, and policy-based control, ideal for blade server aggregation.
Key Features:
-
Dual 10GbE Uplinks: 2 X2-based ports for high-speed backbone or distribution-layer connectivity
-
4x 1GbE Ports: Auto-negotiating 10/100/1000Base-T interfaces for connecting blade servers
-
Stackable Architecture: Enables scalability and ease of management
-
Layer 3 Switching Support: Static routing, inter-VLAN routing, and other advanced services
-
Enterprise-Grade Management: Supports SNMP, CLI, and web-based interfaces
The WS-CBS3120X-S provides a high-performance switching foundation for HP blade deployments requiring strong Layer 3 networking functionality.
