Description

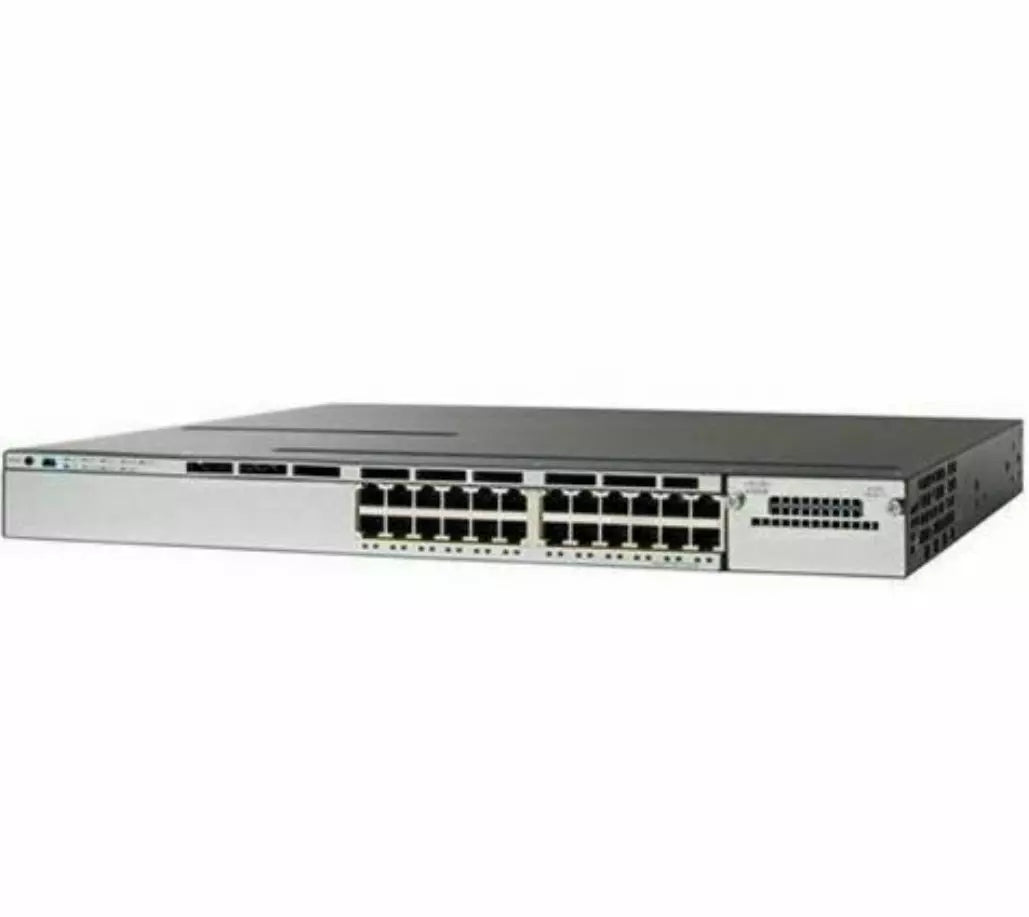

The Cisco WS-C3750X-24P-S is a high-performance, enterprise-class Layer 3 switch that delivers intelligent network services, robust PoE+ support, and scalable stacking capabilities. With 24 Gigabit Ethernet ports and a 435W PoE budget, it is built for converged voice, video, and data networks.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Cisco
|
| Category |
|
| Part Number |
WS-C3750X-24P-S |
| Subcatecory |
|
| Ethernet Ports |
24 x 10/100/1000 |
| PoE+ Power Budget |
435W |
| Switching Capacity |
160 Gbps |
|
Forwarding Performance
|
65.5 Mpps |
| ARP Entries |
12,000 |
| VLAN Support |
Up to 4,094 VLAN IDs |
| Maximum MTU |
9,216 bytes |
| Flash Memory |
128 MB |
| DRAM |
256 MB |
| Dimensions (W x D x H) |
4.4 x 44.5 x 46 cm |
| Weight |
7.2 kg |
Information About WS-C3750X-24P-S
The WS-C3750X-24P-S belongs to the Cisco Catalyst 3750X Series, offering advanced Layer 3 switching functionality and Power over Ethernet Plus (PoE+) across 24 Gigabit Ethernet ports. With an IP Base software image, the switch supports dynamic routing, access control, and full IPv6 integration, making it suitable for high-demand enterprise environments.
Key Features:
- Layer 3 Enterprise Routing: includes IP Base software with support for static routing, access control, and IPv6 networking.
- High PoE+ Budget: offers 435W of PoE+ power across 24 Gigabit Ethernet ports, ideal for powering IP phones, cameras, and wireless access points.
- Advanced Performance: delivers 160 Gbps switching capacity and 65.5 Mpps forwarding rate to support high-throughput enterprise applications.
- Jumbo Frame Support: enables a maximum MTU of 9,216 bytes to accommodate large packet transmissions for improved efficiency.
- Stacking Capability: supports optional stacking with 64 Gbps stack bandwidth for modular growth and redundancy.
- Enterprise Resilience: supports 12,000 ARP entries, 4,094 VLANs, and boasts a high MTBF of over 239,000 hours for dependable uptime.
The WS-C3750X-24P-S provides powerful Layer 3 switching with PoE+ support and scalable stacking, making it an ideal choice for high-performance enterprise networks.
