Description

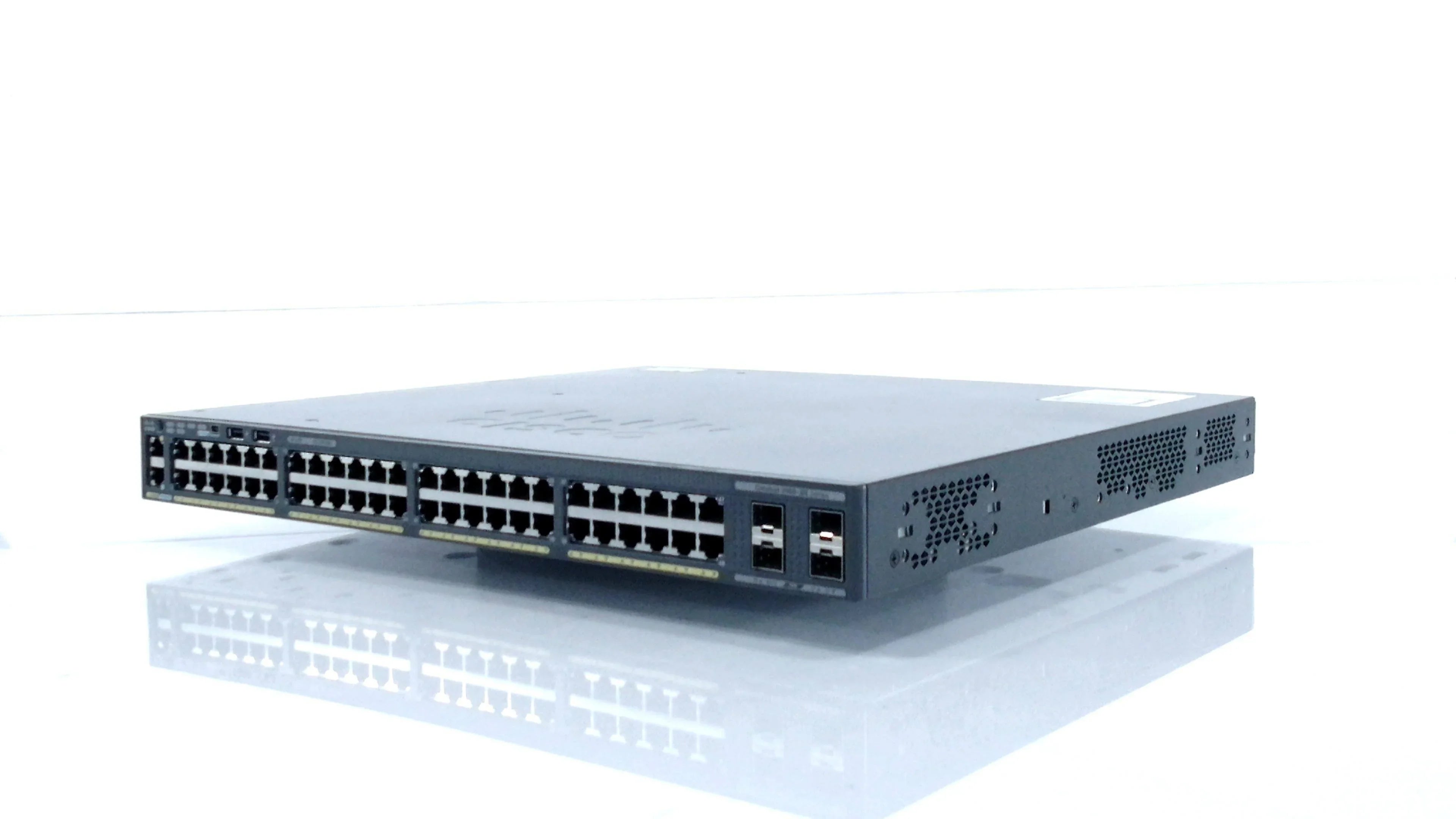

The Cisco WS-C2960XR-48TS-I is a Layer 2 switch from the Catalyst 2960-XR Series that features 48 Gigabit Ethernet ports and 4 SFP uplink interfaces. It runs on the IP Lite feature set, providing essential routing capabilities, advanced network security, and scalability for enterprise-class access deployments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Cisco
|
| Category |
|
| Part Number |
WS-C2960XR-48TS-I |
| Subcatecory |
Managed Ethernet Switches
|
| Feature Set |
IP Lite |
| Total Ethernet Ports |
48 x 10/100/1000 Mbps RJ-45 |
| Uplink Ports |
4 x 1G SFP |
| Switching Capacity |
216 Gbps |
| Forwarding Bandwidth |
108 Gbps |
| Stackable |
Yes, up to 8 units |
| Stack Bandwidth |
80 Gbps |
| RAM |
512 MB |
| Flash Memory |
128 MB |
| Form Factor |
Rack-mountable (1U) |
| Dimensions (W x D x H) |
44.5 cm x 40.8 cm x 4.45 cm |
| Weight |
17.49 Kg |
Information About WS-C2960XR-48TS-I
The WS-C2960XR-48TS-I is a rack-mountable 1U switch that delivers 216 Gbps switching bandwidth and 108 Gbps forwarding bandwidth, supporting high-throughput applications in wired networks. It features 4 Gigabit SFP uplinks for flexible fiber connectivity and stacking capabilities for up to 8 switches with an 80 Gbps stack bandwidth. With 512 MB of RAM and 128 MB of flash memory, it supports dynamic services like ACLs, QoS, and IPv4/IPv6 routing under the IP Lite image. The unit is designed for high-density access layers, measuring 44.5 x 40.8 x 4.45 cm and weighing approximately 17.49 kg.
Key Features:
- 48 x 1G Ethernet Ports: provides full-duplex 10/100/1000Base-T performance for access layer connectivity.
- 4 x SFP Uplinks: supports 1G fiber uplink modules for long-distance aggregation.
- Stackable Architecture: supports stacking of up to 8 switches with 80 Gbps stack bandwidth.
- IP Lite Feature Set: includes static routing, ACLs, and limited Layer 3 capabilities.
- High Performance: delivers 216 Gbps switching and 108 Gbps forwarding bandwidth.
- Memory and Storage: comes with 512 MB RAM and 128 MB flash for configuration and feature support.
- Compact Design: fits in a standard 1U rackmount form factor with enterprise-grade durability.
- Enhanced Network Services: supports QoS, multicast routing, and basic IPv6 functionalities.
The WS-C2960XR-48TS-I delivers scalable access switching with fiber uplinks, stacking capabilities, and essential routing features in a compact, high-density platform.
