Description

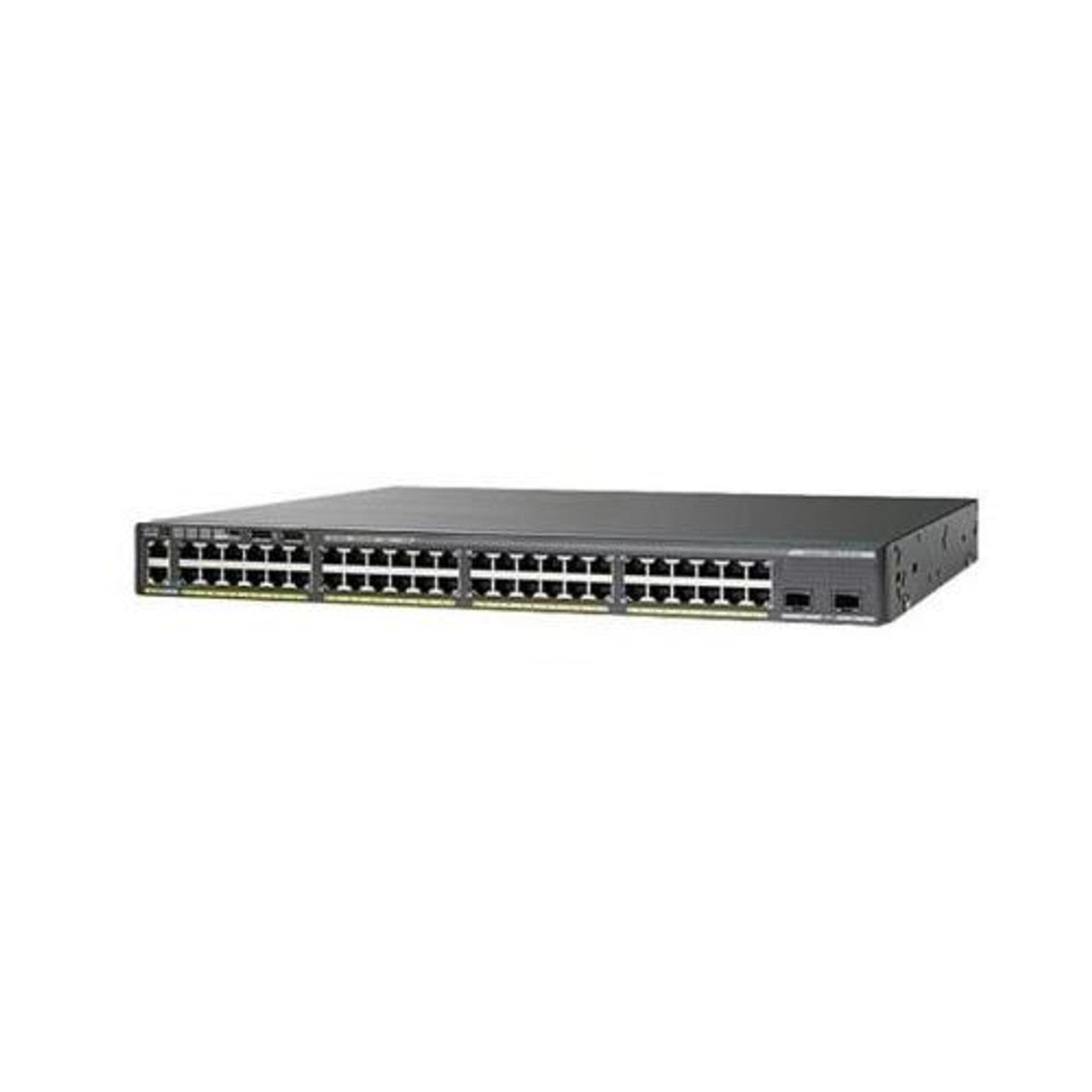

The Cisco WS-C2960XR-48FPD-I is ideal for enterprise networks that demand scalable power delivery, advanced Layer 3 capabilities, and high-speed uplinks. This 48-port Gigabit Ethernet switch supports PoE+ on all ports with a generous 740W power budget, making it suitable for powering IP phones, wireless access points, and surveillance devices.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Cisco |
|
Category
|
|
|
Part Number
|
WS-C2960XR-48FPD-I
|
| Subcatecory |
|
| Feature Set |
IP Lite |
| Ports |
48 x 10/100/1000 (PoE+) |
| Available PoE Power |
740W (PWR-C2-1025WAC included) |
| Uplink Interfaces |
2 x 10G SFP+ |
| Layer 3 Support |
Yes (Static Routing, RIP, Limited Dynamic)
|
| Maximum Stacking Units |
8 |
| Stack Bandwidth |
80 Gbps |
| Switching Bandwidth |
216 Gbps |
| Forwarding Bandwidth |
108 Gbps |
| RAM |
512 MB |
| Flash Memory |
128 MB |
| Dimensions |
44.5 cm x 40.8 cm x 4.45 cm |
Information About WS-C2960XR-48FPD-I
Part of the Cisco WS-C2960XR-48FPD-I Catalyst 2960-XR Series, this model includes IP Lite software, enabling Layer 3 routing for enhanced control over network traffic. It features two built-in 10G SFP+ uplink ports for high-speed backbone connectivity. The switch supports optional FlexStack-Plus technology for stacking up to 8 units with 80Gbps stack bandwidth. Dual redundant power supplies ensure power resiliency, though only one (740W) power supply is included by default.
Key Features:
-
48 x Gigabit PoE+ Ports: Delivers up to 740W of total PoE+ power across all ports, supporting a wide range of powered devices.
-
Dual 10G SFP+ Uplinks: Provides high-speed fiber uplinks for optimal connectivity to core networks or aggregation layers.
-
Layer 3 Capabilities with IP Lite: Supports static routing, RIP, and limited dynamic routing functions, enabling more intelligent traffic management.
-
Optional FlexStack-Plus Support: Stack up to 8 switches with 80Gbps of stack bandwidth, simplifying management and increasing scalability.
-
Redundant Power Options: Includes one 740W AC power supply; a second power supply can be added for redundancy and improved reliability.
-
Compact and Rack-Mountable: Standard 1U form factor with built-in fans for cooling and efficient data center deployment.
This switch combines advanced features with flexibility and reliability, making it ideal for medium to large-sized enterprise deployments.
