Description

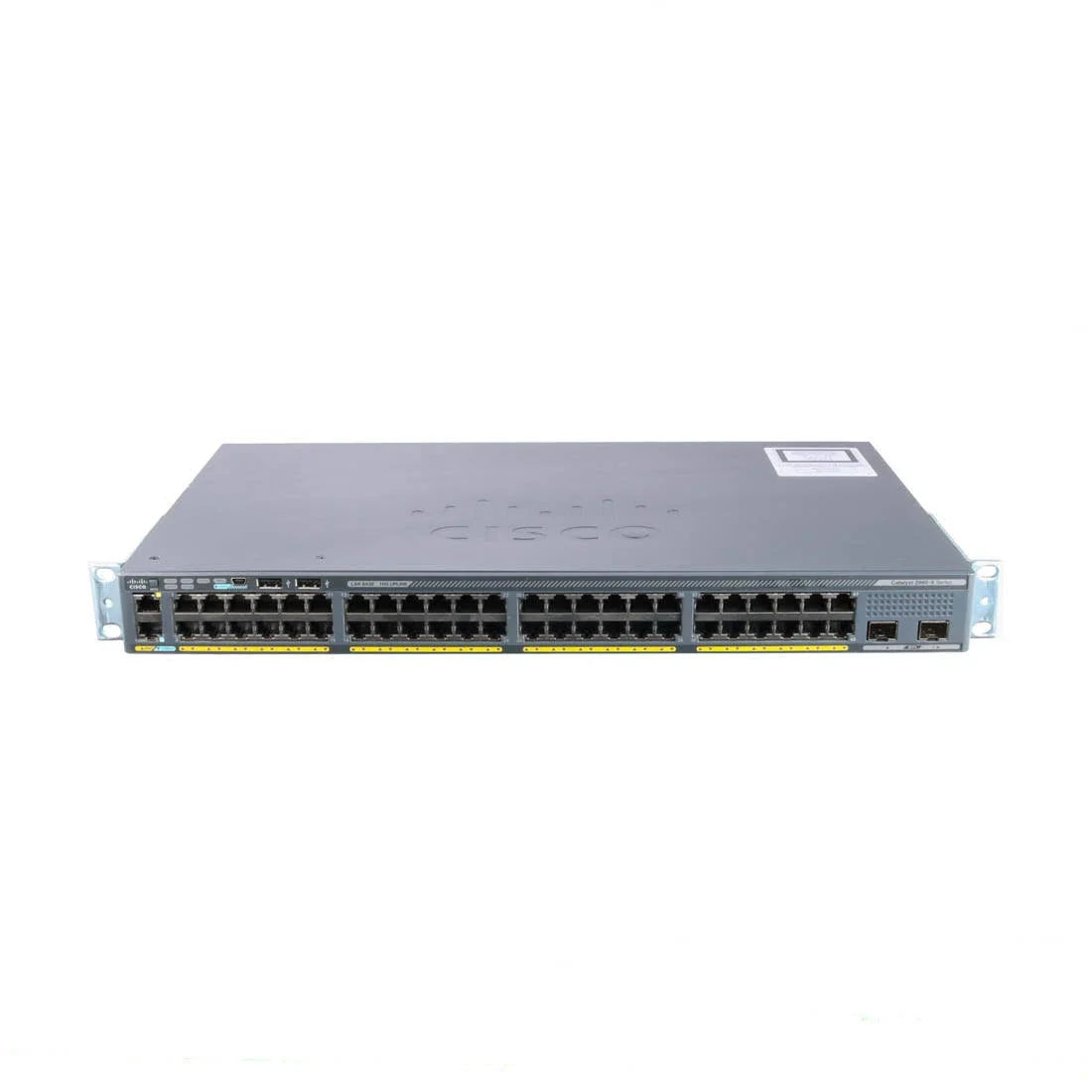

The Cisco Catalyst WS-C2960X-48TD-L is a Layer 2 stackable Gigabit Ethernet switch designed for enterprise-class access networks.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Cisco
|
| Category |
PLCs/Machine Control
|
| Part Number |
WS-C2960X-48TD-L |
| Subcatecory |
|
|
Enclosure Type
|
Rack-mountable - 1U |
Ports
|
48 x 10/100/1000 + 2 x 10G SFP+
|
| Network Management Interface |
10/100 Mbps Ethernet (RJ-45) |
| Forwarding Bandwidth |
108Gbps |
| Maximum Stacking Number |
8 |
| Stack Bandwidth |
80G |
| Forwarding Performance |
130.9 Mpps |
| Switching Bandwidth |
216 Gbps |
| Maximum Active VLANs |
1023 |
| MAC Address Table Size |
16K (default) |
| RAM |
512 MB |
| Flash Memory |
128 MB |
| Console Ports |
USB (Type-B), Ethernet (RJ-45) |
| Stacking Cable |
Optional |
| Voltage Range |
110V-240V |
| Power Consumption Operational |
0.049KVA |
| Rack Mounting Kit |
Optional |
| MTBF In Hours |
445,460 |
| Width |
17.5 Inches (44.5 cm) |
| Depth |
11 Inches (27.9 Cm) |
| Height |
1.75 Inches (4.5 cm) |
| Weight |
4.3 kgs |
Information About WS-C2960X-48TD-L
The Cisco WS-C2960X-48TD-L is a stackable Gigabit Ethernet Layer 2 switch from the Catalyst 2960-X Series, designed for enterprise access networks that demand high performance, energy efficiency, and robust manageability. With 48 Gigabit Ethernet ports and 2 10-Gigabit SFP+ uplinks, it delivers scalable connectivity ideal for business-critical applications, branch deployments, and campus access layers. Featuring Cisco’s LAN Base software, the switch supports advanced QoS, comprehensive security, and simplified network operations through FlexStack-Plus stacking.
Key Features:
- Type: Fixed-configuration Layer 2 Ethernet Switch
- Series: Cisco Catalyst 2960-X Series
- Category: Campus Access Switches
- Subcategory: 48-Port Gigabit Ethernet with 10G Uplinks
- Functionality: Provides wire-speed Layer 2 switching, VLAN segmentation, QoS, and secure access capabilities
- Port Count: 48 x 10/100/1000 Ethernet + 2 x 10G SFP+ uplink ports
- Interface Type: RJ-45 (copper) for data ports; SFP+ for uplinks
- Media Type: 10/100/1000Base-T for data ports; 10GBase-X via SFP+
- Throughput: 107.1 Mpps (64-byte packets); 216 Gbps switching capacity
- Power Consumption: Approximately 75W (typical)
- Form Factor: 1U rack-mountable metal enclosure
- Stacking Support: FlexStack-Plus (requires optional module), up to 8 switches per stack
- Software Compatibility: Cisco IOS® LAN Base feature set
- Operating Temperature Range: 0 °C to +45 °C (32 °F to 113 °F)
- Construction: Durable chassis with enhanced airflow for high-efficiency cooling
- Standards Compliance: IEEE 802.1D, 802.1Q, 802.3az, 802.1X, CE, FCC, RoHS, EnergyWise
The Cisco WS-C2960X-48TD-L offers dependable Layer 2 access switching with energy efficiency and simplified management. It is well-suited for growing enterprise networks needing scalable Gigabit Ethernet access with future-ready 10G uplink capabilities and stackable deployment options.
