Description

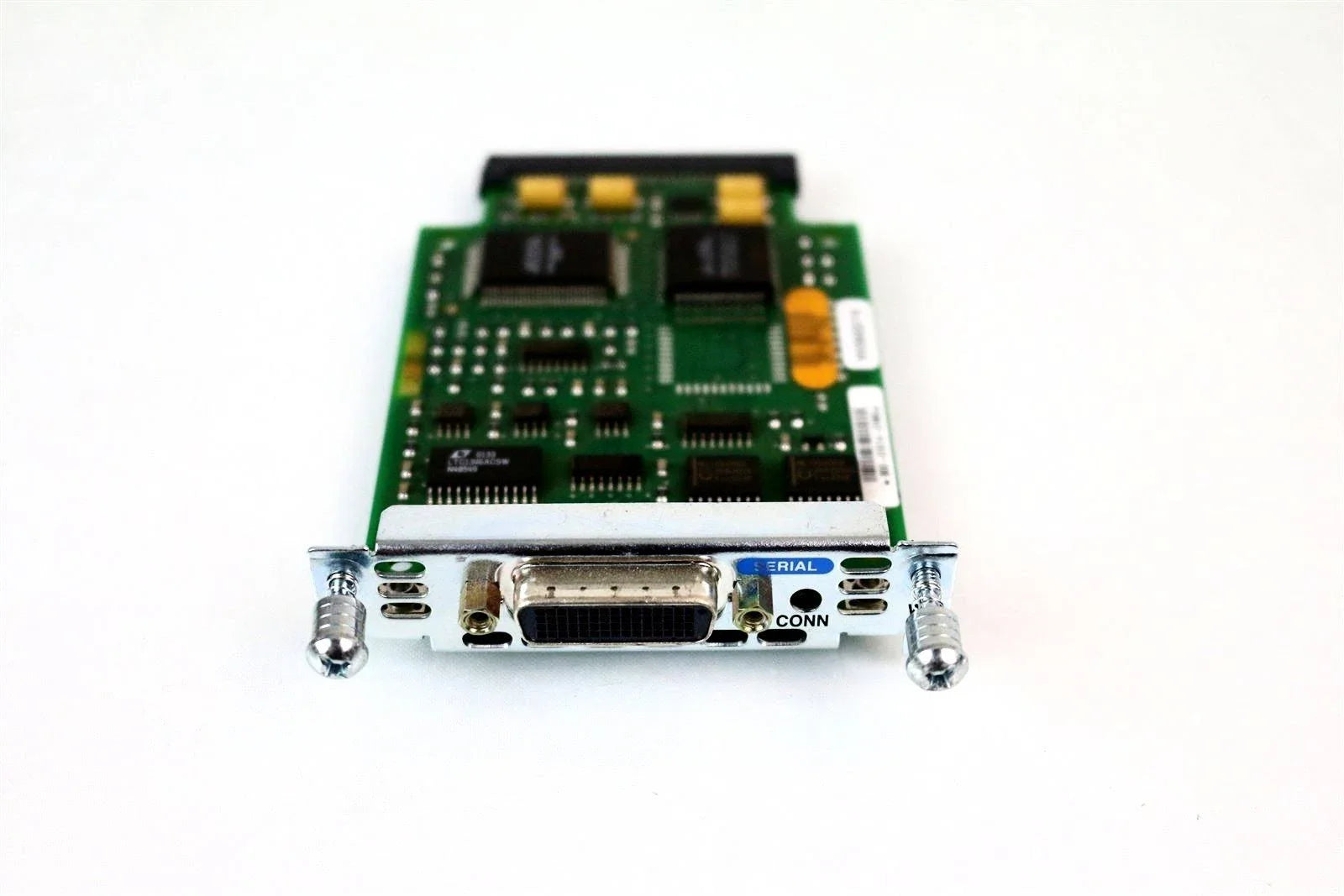

The Cisco WIC-1T is a 1-port serial WAN interface card for Cisco routers, enabling synchronous serial connections using a DB-60 connector.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Cisco
|
| Category |
Computer |
| Part Number |
WIC-1T
|
| Subcategory |
Communication Card |
|
|
Serial |
| Port Count |
1 |
| Connector Type |
DB60 |
| Data Link Protocol |
HDLC, PPP |
| Network Protocols |
Frame Relay, X.25, SNA |
| Max Data Rate |
2.048 Mbps |
| Compatibility |
Cisco 1700, 2600, 3600 Series |
| Form Factor |
Plug-in module |
| Dimensions (H x W x D) |
1 in. x 3.5 in. x 7.5 in. |
| Input Voltage |
3.3 V |
| Power Consumption |
1.5 Watts |
| Memory |
64 KB (Packet Buffers) |
| Operating Temperature |
0 to 40°C (32 to 104°F) |
| Storage Temperature |
-20 to 65°C (-4 to 149°F) |
| Relative Humidity |
5% to 95% non-condensing |
| MTBF |
500,000 hours |
| Compliance |
FCC Part 15 Class A |
| Weight |
0.11 lbs |
Information About WIC-1T
The Cisco WIC-1T is a single-port serial WAN interface card designed for Cisco routers to support synchronous WAN connectivity. Ideal for low-speed leased line connections and legacy network integration, it provides flexible deployment using various serial standards via a DB-60 interface.
Key Features:
-
Port Count: 1 synchronous serial port
-
Connector Type: DB-60
-
Supported Speeds: Up to 2.048 Mbps (depending on cable and interface)
-
Interface Compatibility: V.35, RS-232, RS-449, X.21, EIA-530 (via optional adapter cables)
-
Protocols Supported: HDLC, PPP, Frame Relay, X.25, Cisco proprietary
-
Router Compatibility: Cisco 1700, 1800, 2600, 2800, 3600, 3700, and 3800 Series
-
Form Factor: Fits in a single WIC slot
-
Encapsulation: Supports multiple WAN encapsulation methods
-
Power Requirement: Low power consumption, powered by router chassis
-
Hot Swappable: No
This WAN interface card is ideal for branch office routers, lab environments, and networks requiring legacy serial connections. Its modular design and broad protocol support make it a cost-effective solution for extending synchronous WAN services in Cisco router deployments.
