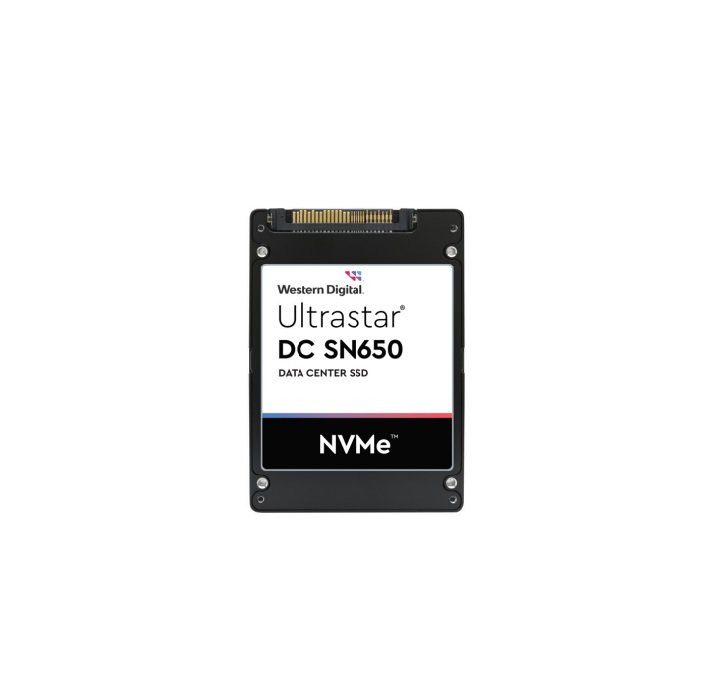

The WUS5EA176ESP5E3 2.5-inch U.3 NVMe SSD manufactured by Western Digital as part of their SN650 Series. It delivers 7.68TB of high-performance storage with PCIe Gen4 interface, 1 DWPD endurance, up to 6,500 MB/s sequential read, 1,900 MB/s sequential write, 705,000/74,000 IOPS random read/write, and enterprise-grade reliability with 2,000,000 hours MTBF.



Specifications

Model Number:  WUS5EA176ESP5E3

Brand: Western Digital

Alt Part Number(s):  WUS5EA176ESP5E3

Product Type:  Solid State Drive



Technical Description

Brand:  Western Digital

Model:  WUS5EA176ESP5E3

Series:   SN650

Storage Capacity: 7.68TB

Endurance: 1 DWPD

Maximum Petabytes Written: 14.0

Security: ISE

Form Factor: U.3 15mm

Interface: PCIe Gen4, NVMe 1.4b

Read Throughput (max MB/s, Seq 128KiB): 6,500 MB/s

Write Throughput (max MB/s, Seq 128KiB): 1,900 MB/s

Read IOPS (max, Rnd 4KiB): 705,000 IOPS

Write IOPS (max, Rnd 4KiB): 74,000 IOPS

Read Latency: 115 µs

Write Latency: 30 µs

MTBF: 2,000,000 Hours

Uncorrectable Bit Error Rate (UBER): 1 in 10^17

Annualized Failure Rate (AFR): 0.44%

Requirement (DC, ±10%): +12V, 3.3V

Operating Modes (typical): 16W, 18W

Idle (Average): 8W
