Description

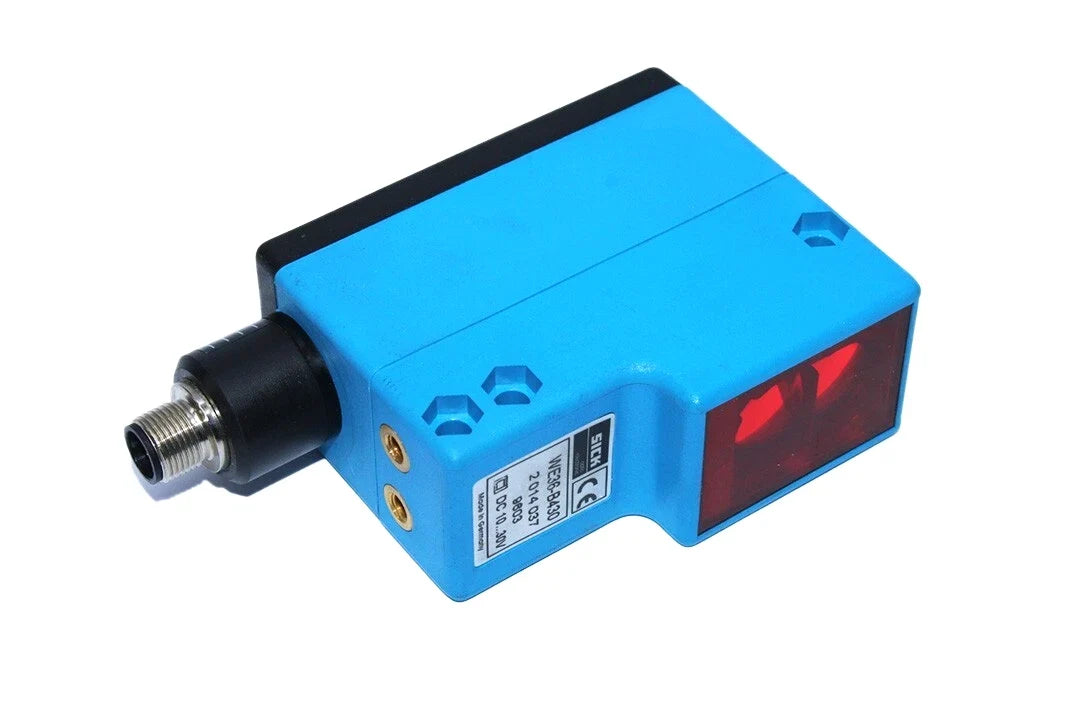

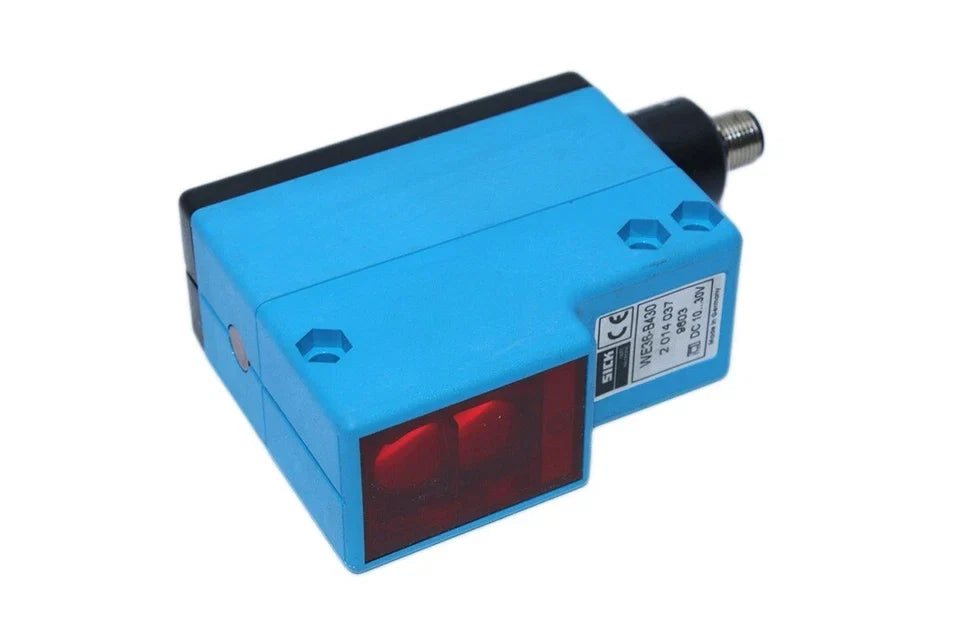

The SICK WE36-B430 is a photoelectric receiver sensor designed for long-range object detection in industrial automation systems. This sensor supports PNP output with light/dark switching and operates as part of a through-beam sensing setup. It is engineered for reliable performance over extended distances when paired with a compatible emitter.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
SICK |
| Category |
Industrial Sensors |
| Part Number |
WE36-B430 |
| Subcategory |
Photoelectric Sensors |
| Sensor Type |
Photoelectric Receiver |
| Functional Principle |
Through-Beam (Receiver) |
| Sensing Range (Max) |
Up to 60 m (with corresponding emitter) |
| Output Type |
PNP |
| Switching Mode |
Light / Dark Switching |
| Supply Voltage |
10–30 VDC |
| Output Current |
100 mA |
| Response Time |
≤ 500 µs |
| Switching Frequency |
1,000 Hz |
| Connection Type |

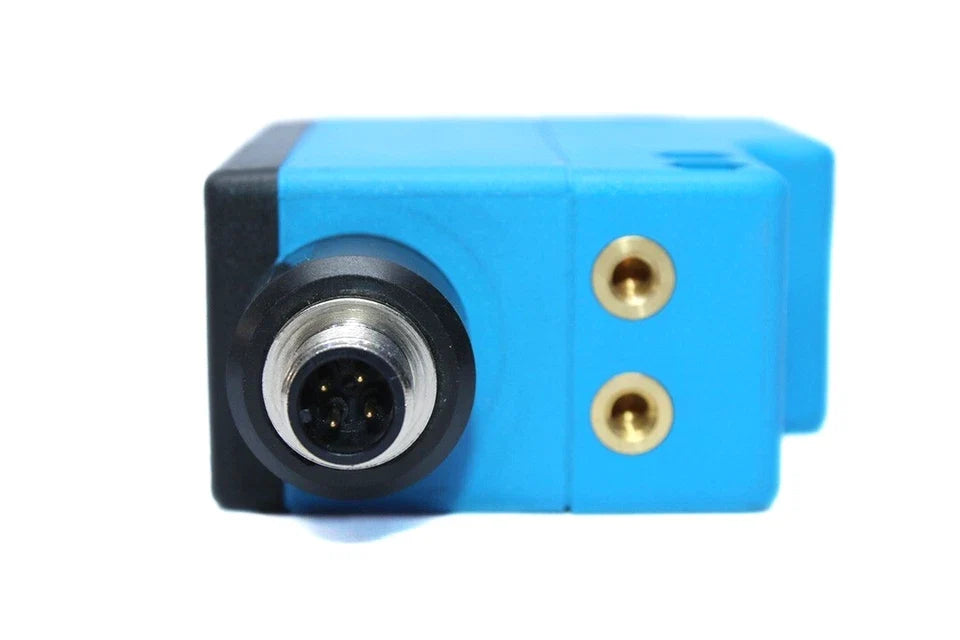

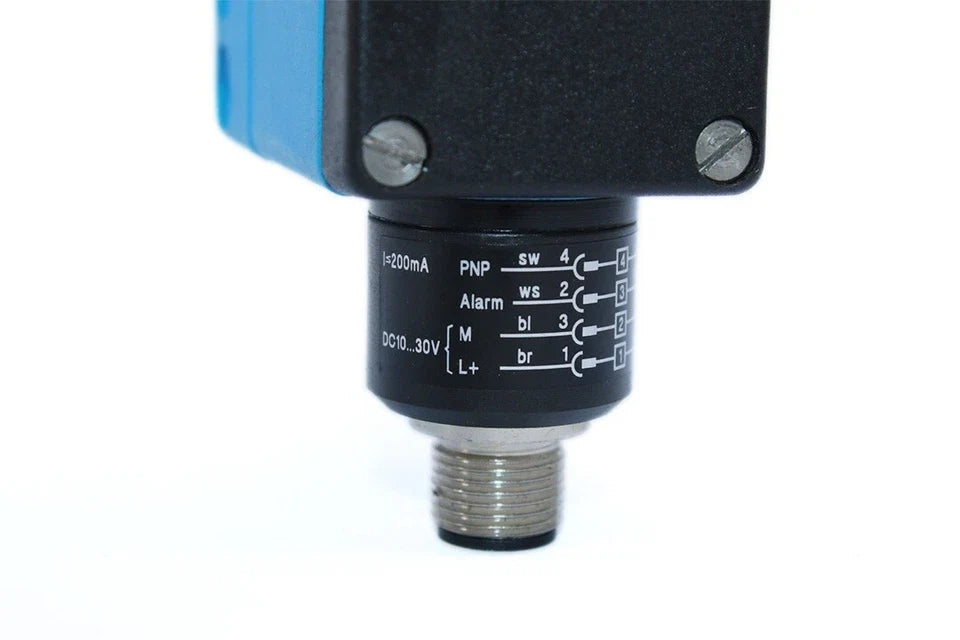

M12, 4-pin Male Connector |
| Housing Material |
ABS Plastic |
| Enclosure Rating |
IP67 |
| Operating Temperature |
–40 °C to +60 °C |
| Dimensions (W × H × D) |
27 × 92 × 70 mm |
| Weight |
280 g |
Information About WE36-B430
The WE36-B430 is part of SICK’s WE36 photoelectric sensor family, developed for demanding long-distance detection applications. Functioning as a receiver unit, it detects infrared light emitted from a corresponding sender to achieve sensing ranges of up to 60 meters. The sensor supports fast response times and high switching frequencies, making it suitable for high-speed material handling and logistics systems. Its rugged ABS housing and IP67 enclosure rating allow dependable operation in harsh industrial environments.
Key Features:
- Through-Beam Receiver Design: Operates with a compatible emitter for long-range object detection.
- Extended Sensing Distance: Supports detection ranges up to 60 meters in through-beam configurations.
- PNP Switching Output: Compatible with standard PLC and industrial control inputs.
- Light/Dark Switching Modes: Enables flexible output logic configuration.
- High-Speed Performance: Features fast response time and high switching frequency for dynamic applications.
- Rugged Industrial Housing: ABS construction with IP67 rating for harsh environments.
- Standardized Connectivity: Uses a 4-pin M12 male connector for secure installation.
The WE36-B430 delivers the reliability and precision required for long-range photoelectric detection in industrial automation and material handling systems.
