Description

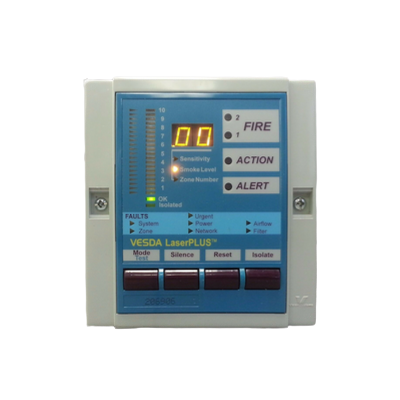

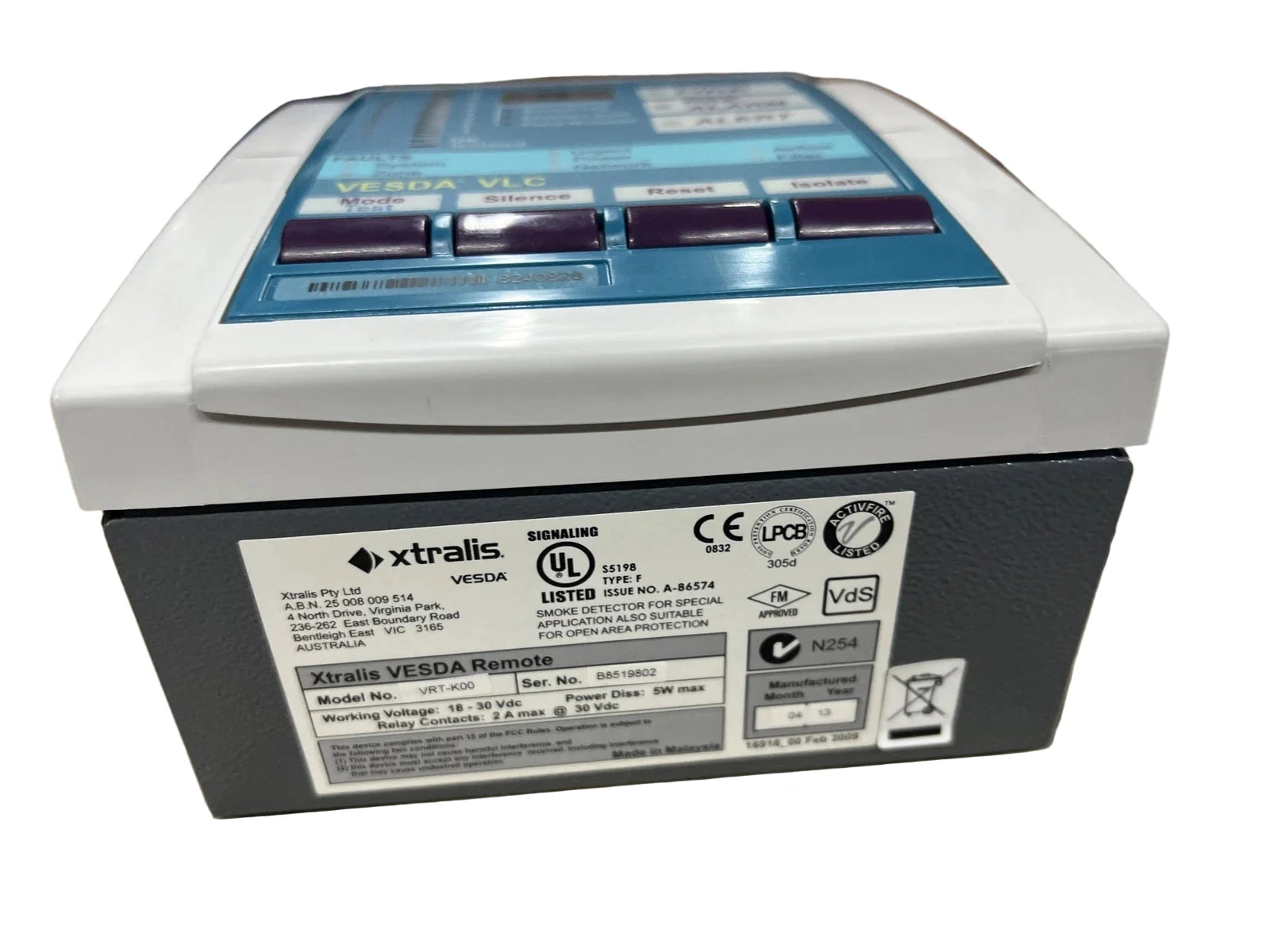

The Vesda VRT-K00 Remote Display Module is designed for use with the LaserCOMPACT (VLC) range of aspirating smoke detectors. It provides real-time smoke level monitoring through a 20-segment bar graph, numeric display, audible sounder, and high-intensity alarm LEDs. The unit allows convenient remote status reporting and control of a single detector, ensuring quick response to alarms and system events.
Technical Specifications
| Condition |
New |
| Brand |
Vesda |
| Part Number |
VRT-K00 |
| Subcategory |
Remote Displays & Interfaces |
| Manufacturer |
Honeywell International |
| Compatible Series |
VESDA VLC LaserCOMPACT, VESDA-E & Accessories |
| Display Type |
20-segment bar graph + 2-digit numeric display |
| Indicators |
Fire, Action, Alert, Fault, Threshold levels |
| Audible Warning |
Built-in sounder with silence function |
| User Controls |
4 push buttons (Reset, Isolate, Silence, Mode) |
| Alarm Indicators |
High-intensity flashing LEDs |
| Mounting Options |
Detector unit, remote box, or 19-inch sub rack |
| Multi-Display Support |
Multiple modules can be linked to a single detector |
| Dimensions |
Not specified |
| Weight |
1 lb |
| Unit of Measurement |
Each (EA) |
| Series |
VESDA VLC LaserCOMPACT, VESDA-E & Accessories |
| Production Status |
Active |
Information About VRT-K00
The VRT-K00 is a Vesda remote display unit by Honeywell International, specifically designed to work with the VESDA VLC LaserCOMPACT series. It enables remote monitoring of detector conditions and alarm thresholds, with built-in visual and audible indicators for smoke, alarms, and faults. The module supports flexible mounting options, including integration into a detector, remote box, or 19-inch sub rack. Multiple displays can be linked to the same detector, offering clear status reporting at different locations.
Key Features:
- Real-Time Monitoring: Displays smoke levels and thresholds via a 20-segment bar graph.
- Numeric Display: Provides two-digit numerical readout for smoke obscuration values.
- Alarm Indication: High-intensity LEDs with audible sounder ensure clear fire status alerts.
- Fault Reporting: Dedicated indicators and tones highlight system or device issues.
- User Controls: Four tactile push buttons allow reset, silence, isolation, and display mode selection.
- Flexible Mounting: Supports detector unit mounting, remote enclosures, or 19-inch sub rack installation.
- Multiple Displays Supported: Several modules can be configured to report from a single detector.
- Configurable Operation: Button functions can be enabled or disabled to suit site requirements.
The VRT-K00 delivers the reliability and precision required for remote monitoring and control of VESDA VLC LaserCOMPACT detectors in critical fire detection systems.
