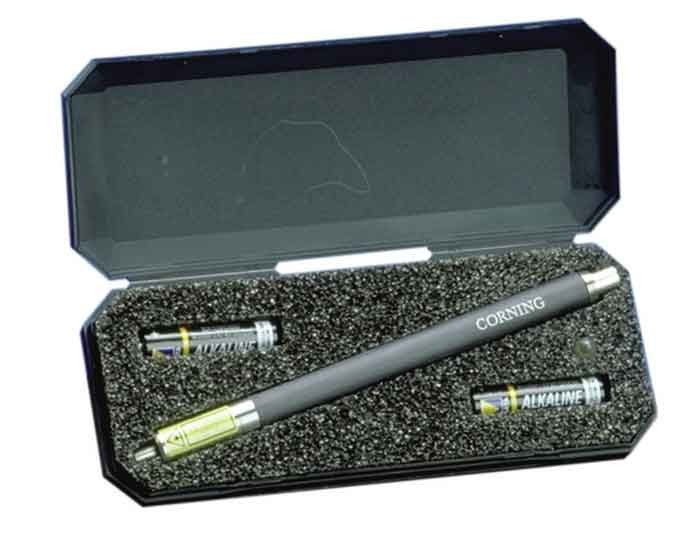

The Corning Cable Systems VFL-350 emits either continuous or 3 Hz flashing visible laser light at a wavelength of approximately 635 nm to perform continuity checks and locate faults in both multi- and single mode fibers optical fibers and components.

The VFL-350 makes use of a Class 2 laser with a power output of less than 1mW. Under normal operations, the laser light is not dangerous.

As shipped, the VFL-350 is suitable for standard 2.5 mm single fiber connector ferrules. Corning Cable Systems CTS kits, e.g TKT-UNICAM- CTS, contain a splitter which will permit use of a VFL-350 with 2-fiber connectors.

The VFL-350 has the following general specifications:

• Power requirements: 2 AAA alkaline batteries (provided)

• Battery life: Approximately 40 hours in flashing mode

• Operating temperature -10to +40 C

• Storage temperature -40to +70 C

To operate the VFL-350:

• After removing the dust cap, fully insert the connector ferrule into the adapter on the front of the locator.

• Turn the locator on by pressing the on /off switch at the end of the unit.

• Press the continuous / flashing mode switch on the side of the locator for the desired setting.

• Replace the dust cap on the VFL after you have completed the fault location or continuity check.

To replace the batteries in the VFL-350:

• After turning the VFL-350 off, unscrew the laser unit on the front of the locator.

• Insert two AAA alkaline batteries as shown in Figure 2.

• Screw the laser unit back into place.

• Properly dispose of the used batteries.
