Product Specifications

Camera Features

Image Sensor	1 / 2.8″ Progressive CMOS
Sensor Resolution¹	5MP (2688 x 1944)

Lens Type	Varifocal; motorized zoom
Focal Length	2.8 - 8mm

Aperture	F1.3 - F2.4
Iris	P-Iris

Field of View (after LDC²)	Horizontal: 38° - 105° (37° - 84°) Vertical: 29° - 77° (28° - 68°) Diagonal: 48° - 126° (45° - 97°)
Sensor Movement	Tilt: 60° Pan: 355° Rotation: 350°

Shutter Speed	1 / 30 sec. to 1 / 10,000 sec.
Day/Night	IR-cut filter for day and night function

IR Cut Filter	Yes
IR Range	30m / 98ft

Minimum Illumination	0.009 lux @ F1.9 (Color) 0 lux with IR Illuminators on
Onboard Storage	Capacity: From 256GB to 2TB Card: MicroSD, SDXC

CPU	Ambarella CV25S88

Standard video settings

Compression	H.265, H.264
Frame Rate⁴	24fps

Live Streaming Settings	High quality (HQ): 1,000 - 4,500 Kbps (1,500 Kbps default) Standard quality (SQ) - 600 Kbps
Historical Video Settings	Adaptive quality¹

Standard audio settings

Audio	Supported
Audio Capacity	One-way audio

Interface	Built-in microphone
Effective Range	5m / 15ft

Power and Network

Power Input³	With IR: IEEE 802.3af Type 1 PoE Without IR: IEEE 802.3af Type 1 PoE Extended temperature range: IEEE 802.3at Type 2 PoE+
Power Consumption³	With IR: 37-57V. 0.3-0.2A, 10.98W Without IR: 37-57V, 0.13-0.08A, 4.74W Extended temperature range: 37-57V, 0.43-0.28A, 16.03W

Connectivity	RJ-45 cable connector for network/PoE connection; 10 / 100 Mbps
RTSP	RTSP 1.0 RFC 2326 Max concurrent streams: 2 Audio support: Yes

General

Operating Temperature	-40°C to 50°C / -40°F to 122°F
Humidity	0 to 90%

Certifications	FCC, ICES, CE, UL, CB, NOM, KCC, IP67 weather rating, IK10 impact rating
LED Indicator	System power and status indicator

Warranty	10 years
Included Accessories	Setup guide, wall mount screws & anchors (4x), T10 security torx screwdriver, mounting template, cable gland wrench, desiccant pack, conduit adapter

Mechanical

Weight	Camera: 1070g / 37.74oz Mount plate: 174g / 6.14oz
Dimensions	Ø: 155mm / 6.10in, H: 114.6mm / 4.51in with mount plate Ø: 155mm / 6.10in, H: 107.6mm / 4.24in without mount plate

Body	Aluminum, plastic dome trim

Software Capabilities

Alerts	Camera status, motion detection, people detection, vehicle detection, Person of Interest detection, crowd detection
People Analytics	People search, attribute search, face search, Occupancy Trends, motion search, trajectory analysis⁵

Vehicle Analytics	Vehicle search, attribute search, motion search, trajectory analysis⁵
Streaming and storage	Cloud backup, configurable retention days, selectable storage location, low bandwidth mode, timelapse, RTSP

Sharing and privacy	Live Links, live face blur, privacy regions, audit log
Verkada	Video Security Camera System

1. All our cameras record in "adaptive quality", capturing both standard and high quality streams. Standard quality (SQ) video is stored up to the amount of retention specified by the customer. The amount of high quality video stored on the camera will depend on the amount of motion detected by the camera over time.
2. Lens Distortion Correction (LDC) crops the sensor field of view to deliver a rectified, undistorted output image.
3. Extended temperature range includes operating temperatures below -8.5°C / 16.7°F and assumes IR will be enabled.
4. Frame rate can be adjusted by support.
5. Both indoor and outdoor variants of the following camera models support trajectory analysis: CM42, CD22/32/42/52/62, CB52/62, CH52-E, CP52-E and CF81-E (in panoramic and ePTZ circle modes only).

View less ↑ View more >

Product Resources

Overview PDF Full Installation Guide Mounts for Cameras

US-Based Distributor

Wellington, Florida — serving US businesses, agencies & OEMs.

Send a Part Number

Search or send your list — obsolete & current GE Speedtronic, boards & controls.

24-Hour Quotes

US-based specialists reply within 24 hours.

Purchase Orders Welcome

POs accepted from qualified US buyers; cards too.

Product

Can I return my product?

We always aim for make sure our customers love our products, but if you do need to return an order, we’re happy to help. Just email us directly and we’ll take you through the process.

Other

Any question?

You can contact us through our contact page! We will be happy to assist you.

WhatsApp +1 (305) 809-0110

info@alotechsolutions.com

Send a message

info@alotechsolutions.com

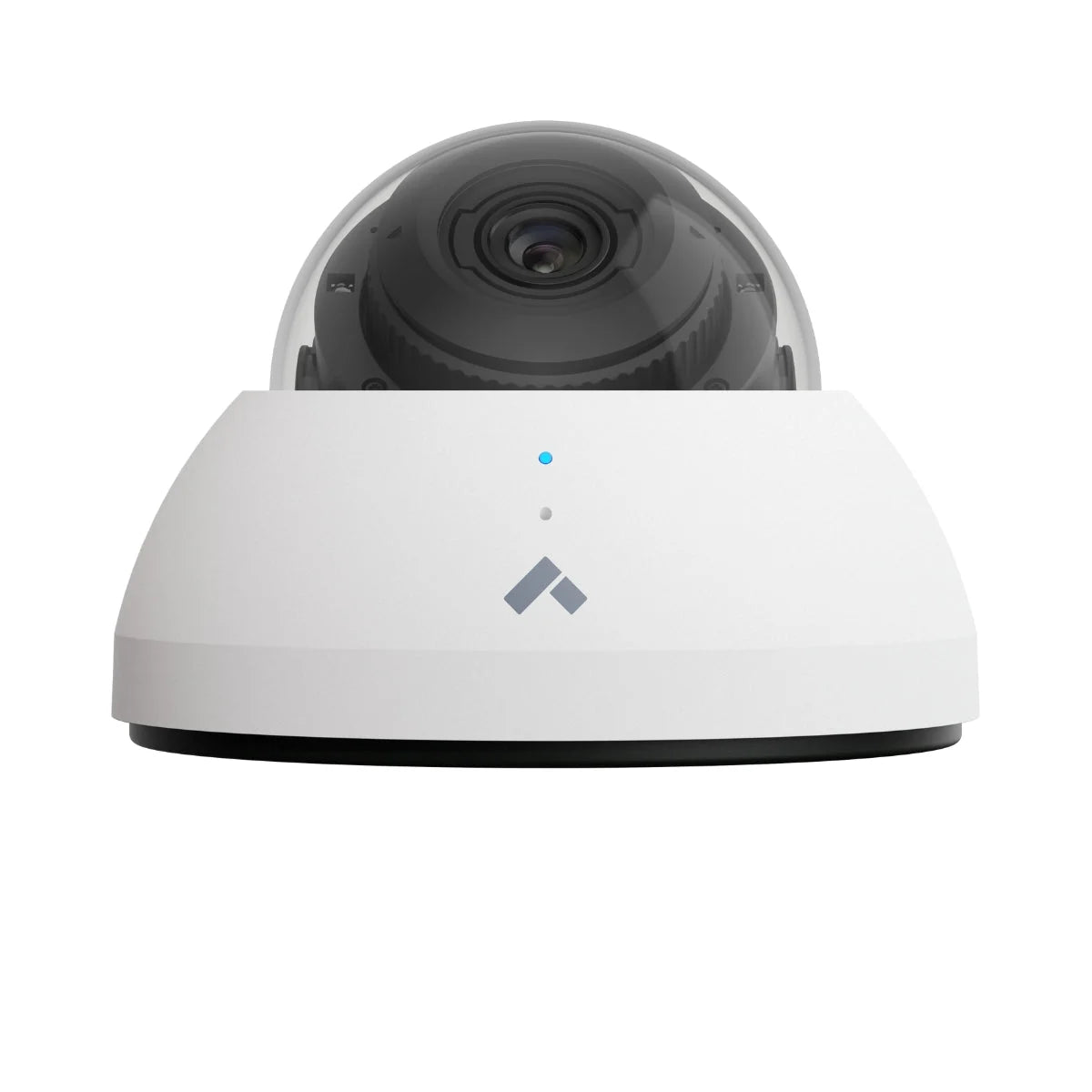

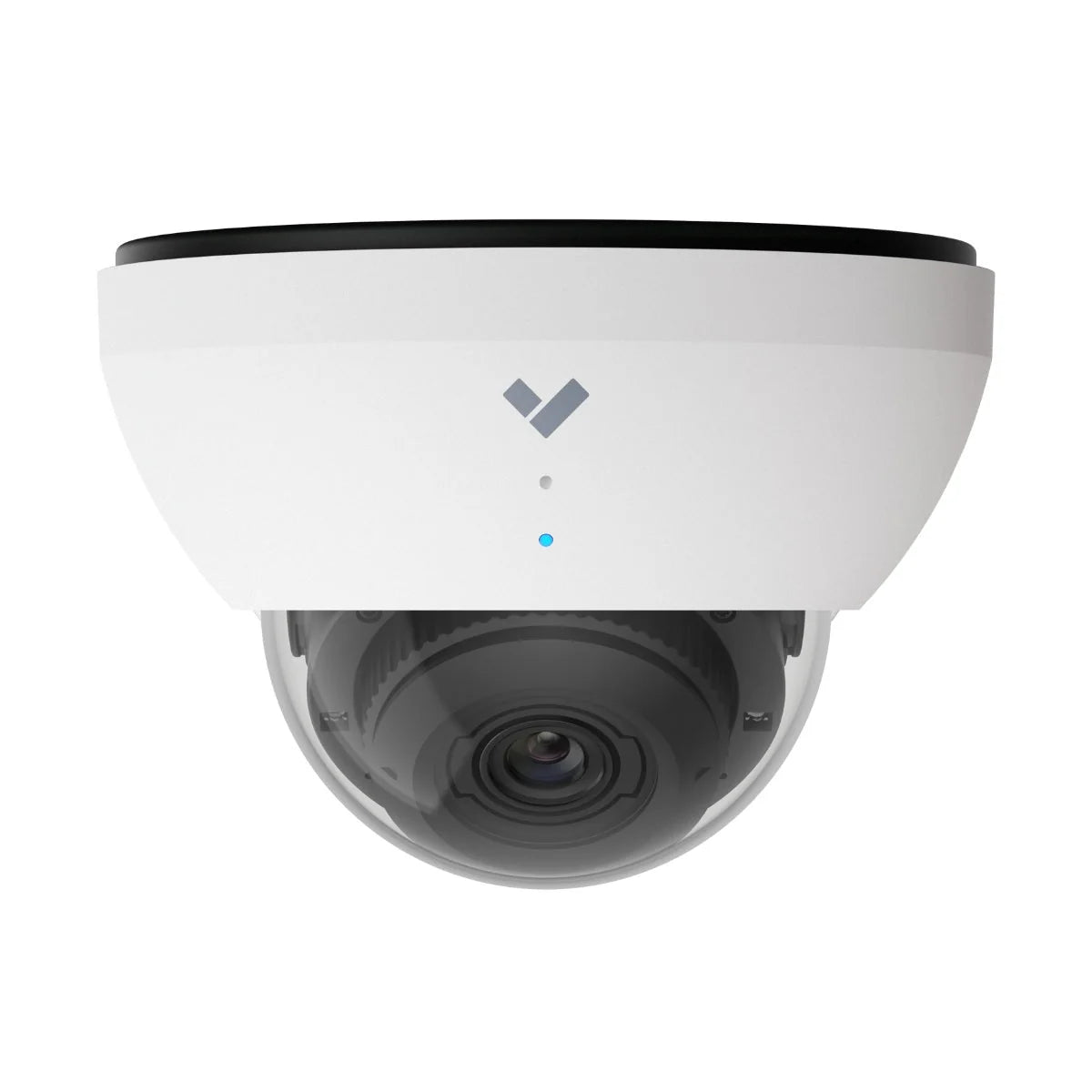

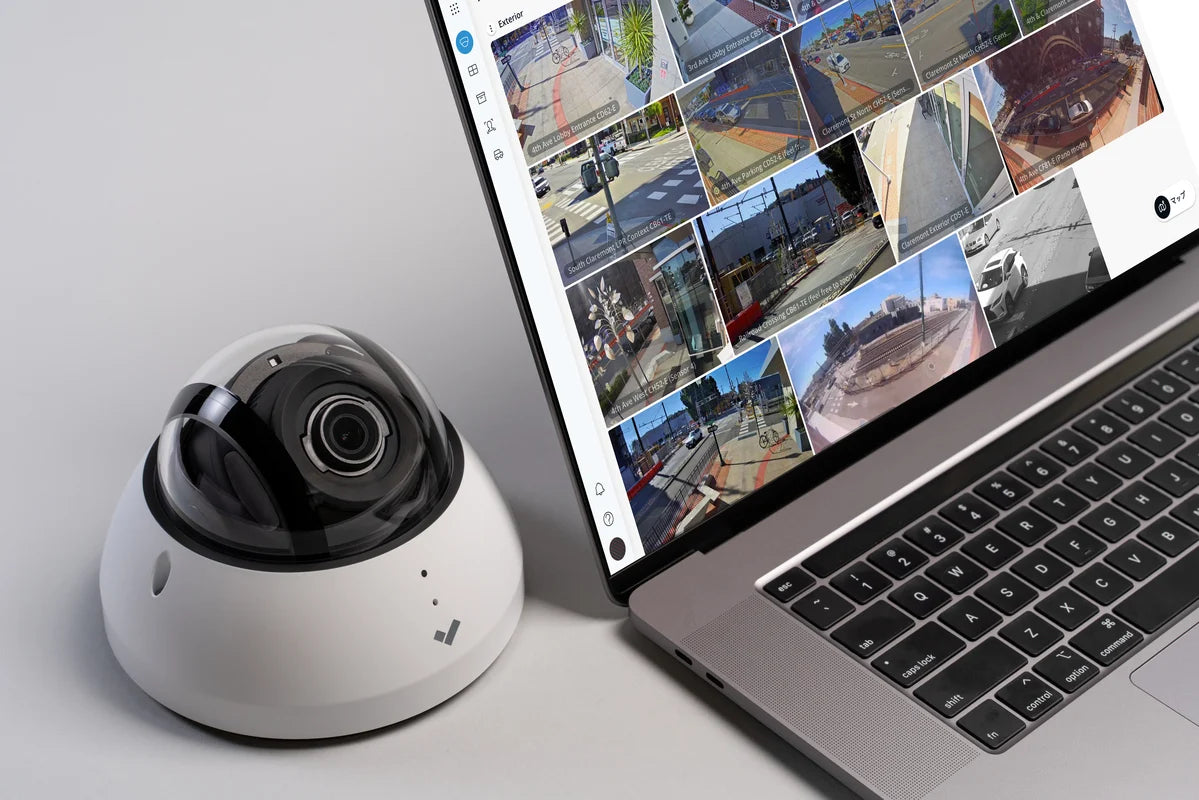

Verkada CD52-E Dome Outdoor Camera
