Description

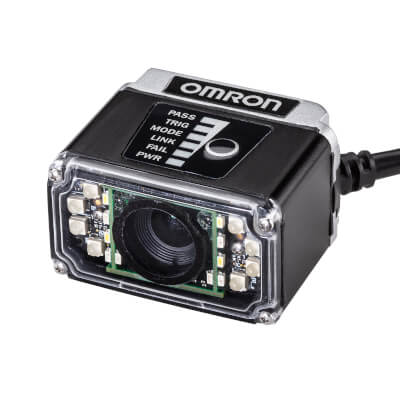

The Omron V420-F000M12M-SRX Code Reader is a 1.2 MP monochrome industrial barcode reader featuring autofocus optics with a working distance of 50–300 mm and integrated red LED illumination. Equipped with X-Mode decoding technology, it provides high-speed reading of 1D, 2D, and DPM (Direct Part Mark) codes over Ethernet, RS-232, and USB communication interfaces.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Industrial Automation and Controls |
| Part Number |
V420-F000M12M-SRX |
| Subcategory |
Code Readers |
| Series |
V420 |
| Type |
Industrial Fixed-Mount Code Reader |
| Sensor Type |
1.2 MP SXGA Monochrome (1280 × 960 pixels) |
| Optics |
Autofocus, 50–300 mm range |
| Field of View (Width) |
34–183 mm |
| Decoder Type |
X-Mode (Advanced 1D, 2D, and DPM decoding) |
| Frame Rate |
42 fps |
| Illumination |
Integrated Red LED |
| Shutter Type |
Global shutter |
| Focus Method |
Electronic autofocus |
| Communication Interfaces |
Ethernet TCP/IP, RS-232C, USB |
| I/O Ports |
3 inputs / 3 outputs (series typical) |
| Mounting Type |
Fixed mount |
| Supply Voltage |
5 VDC |
| Power Consumption |
<2 W typical |
| Ingress Protection |
IP54 (dust- and splash-resistant) |
| Housing Material |
Industrial aluminum alloy |
| Dimensions (H × W × D) |
25.4 mm × 44.5 mm × 38.1 mm |
| Weight |
120 g |
| Operating Temperature |
0°C to +45°C |
| Storage Temperature |
-20°C to +70°C |
| Humidity Range |
35–85% RH (non-condensing) |
| Mounting Accessories |
M12 connector, mounting brackets (optional) |
| Compliance |
CE, RoHS |
| Country of Origin |
Japan |
| Application |
Industrial traceability, product verification, and automated inspection |
Information About V420-F000M12M-SRX
The V420-F000M12M-SRX is part of Omron’s V420 Series of compact industrial code readers engineered for superior flexibility and precision in traceability and inspection systems. This model uses an advanced 1.2-megapixel SXGA monochrome sensor combined with autofocus optics, enabling reliable reading of small or complex codes at varying distances. With X-Mode decoding, it can handle low-contrast, damaged, or directly marked codes, making it ideal for production and assembly lines. Its IP54-rated housing protects against dust and splashes, while multiple communication options—Ethernet TCP/IP, RS-232, and USB—ensure seamless integration into a wide range of automation environments.
Key Features:
- High-Resolution Sensor: 1.2 MP SXGA monochrome imager captures detailed barcode data for reliable decoding.
- Autofocus Optics: Adjustable focus range from 50–300 mm supports variable-distance reading without manual intervention.
- X-Mode Decoding: Reads 1D, 2D, and DPM codes, even on challenging or reflective surfaces.
- High-Speed Operation: Captures and decodes up to 42 frames per second for rapid scanning applications.
- Integrated Red Illumination: Built-in red LED ensures optimal lighting and contrast across materials.
- Multiple Communication Interfaces: Supports Ethernet TCP/IP, RS-232C, and USB connectivity.
- Industrial Design: IP54-rated housing for protection against dust and light moisture exposure.
- Compact and Lightweight: Small form factor allows for easy mounting in space-limited installations.
The V420-F000M12M-SRX delivers the reliability and precision required for traceability, quality inspection, and automated product identification systems.
