[shortdesc]UniFi Protect management, HDMI 4K video output, GbE RJ45, PoE power, ARM octa-core processor, 4GB DDR4X, Bluetooth 5.0[/shortdesc]
[properties]
| Brand |
Ubiquiti |
| Model |
UFP-VIEWPORT |
| Product Type |
UniFi Protect HDMI Viewport |
| Series |
UniFi Protect |
| Interface |
GbE RJ45 port, HDMI port |
| PoE Support |
802.3af PoE |
| Power |
9.5W Max. power consumption |
| Dimensions |
157 x 52 x 37 mm (6.18 x 2.05 x 1.46") |
| Weight |
Without mount: 230 g (8.11 oz); With TV mount: 252 g (8.89 oz) |
| Material |
Polycarbonate |
| Operating Temperature |
0 to 40° C (32 to 104° F) |
[/properties]
[specifications]
| Enclosure Material |
Polycarbonate |
| Mount Material |
Polycarbonate |
| Processor |
ARM® octa-cores Kryo™ |
| Memory |
4GB low power DDR4X |
| Management Interface |
UniFi Protect |
| Networking Interface |
GbE RJ45 port |
| Video Interface |
HDMI port (Up to 4K @ 30 fps) |
| Max. Power Consumption |
9.5W |
| Power Method |
802.3af PoE |
| ESD/EMP Protection |
Air: ± 8kV, contact: ± 4kV |
| Operating Humidity |
20 to 80% noncondensing |
| Button |
Factory reset |
| Antennas |
Bluetooth |
| Antenna Gain |
2 dB |
| Bluetooth |
5.0 |
| Certifications |
FCC, IC, CE |
[/specifications]
Dedicated UniFi Protect Viewing Hardware

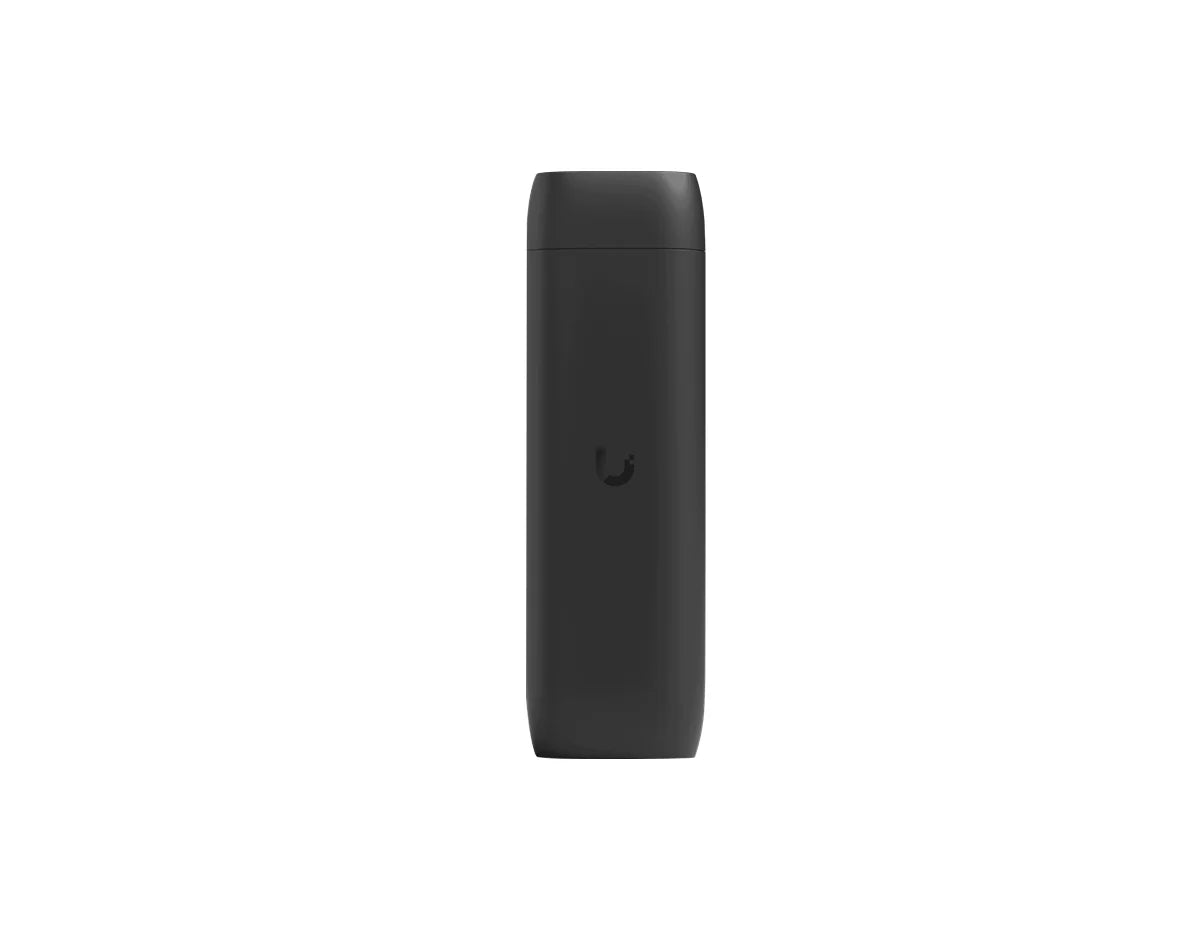

The Ubiquiti UFP-VIEWPORT is a compact UniFi Protect HDMI Viewport designed to provide dedicated, low-latency access to a UniFi Protect surveillance environment without requiring a standalone computer. It combines a powerful ARM octa-core Kryo processor, 4GB of low-power DDR4X memory, Gigabit Ethernet connectivity, and an HDMI output capable of displaying high-definition video feeds directly onto a monitor or TV.

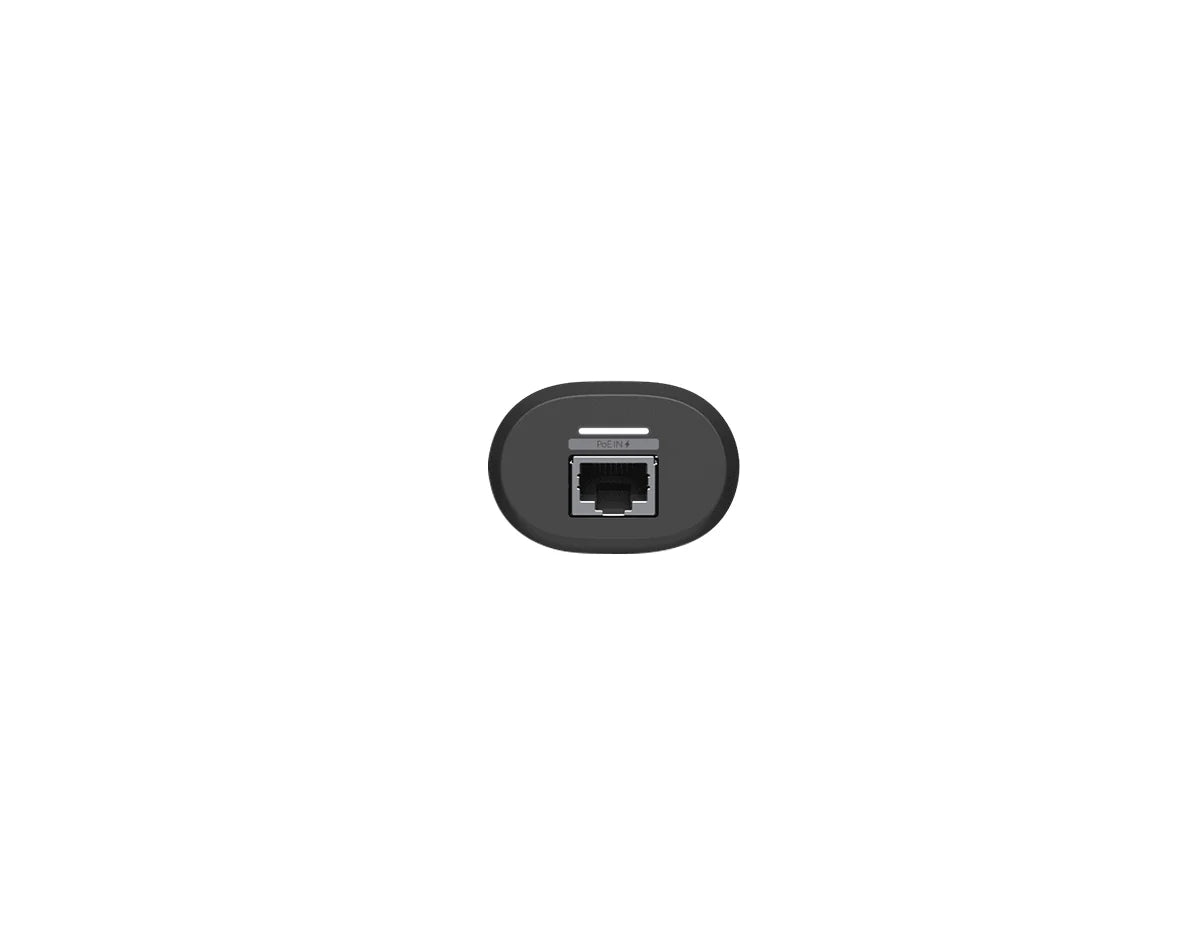

Its integrated GbE RJ45 interface supports reliable wired network communication, while standard PoE options handle power delivery and network connectivity through a single cable run. The device bridges your local UniFi Protect deployment to any display, streaming crisp surveillance layouts efficiently inside a lightweight polycarbonate enclosure.
Key Benefits and Features
-
Direct HDMI Output: Connects to displays and TVs supporting high-definition and 4K video output at 30 FPS.
-
High-Density Multi-Camera View: Displays up to 16 IP camera feeds simultaneously in custom matrix grid layouts.
-
Centralized App Management: Streamlined adoption and configuration directly through the UniFi Protect platform.
-
PoE Powered Efficiency: Utilizes a convenient power method with a low maximum power consumption of 9.5W.
-
Robust Hardware Base: Equipped with an ARM octa-core Kryo processor, 4GB low-power DDR4X memory, and Bluetooth 5.0 connectivity.
Ideal Use Cases
- Dedicated UniFi Protect live-view monitoring stations in security offices
- Commercial, retail, and operational environments requiring continuous surveillance visibility
- Deployments seeking to reduce computer hardware overhead by using a dedicated HDMI appliance
- Clean installations where Power over Ethernet simplifies cabling behind walls or video displays
Technical Specifications
-
Model: UFP-VIEWPORT
-
Management Interface: UniFi Protect
-
Processor: ARM octa-core Kryo
-
Memory: 4GB low-power DDR4X
-
Networking Interface: GbE RJ45 port
-
Video Output: HDMI (Up to 4K @ 30 fps)
-
Power Method: 802.3af PoE
-
Maximum Power Consumption: 9.5W
-
Bluetooth: Bluetooth 5.0 (2 dB antenna gain)
-
Dimensions: 157 x 52 x 37 mm (6.18 x 2.05 x 1.46")
-
Operating Temperature: 0 to 40°C (32 to 104°F)
Deploy a Dedicated UniFi Protect Viewport
Choose the Ubiquiti UFP-VIEWPORT for a compact, PoE-powered device built around UniFi Protect management, high-performance HDMI output, and dedicated multi-stream camera viewing requirements. Order today to upgrade your surveillance network deployment.
