[shortdesc]
- 2K Resolution (4MP) offers 2688 x 1512 resolution for clear and high-quality images, Built-in IR LED illumination enables monitoring in complete darkness up to 65 feet, View Angle: H: 102.4°, V: 54.9°, D: 120.6°
[/shortdesc]
[properties]
| Optics |
UVC-G5-DOME-ULTRA |
| Sensor |
1/2.4" CMOS |
| Lens |
Fixed focal length |
| View angle |
H: 102.4°, V: 54.9°, D: 120.6° |
| Night mode |
Built-in IR LED illumination and IR cut filter |
| IR distance |
20 m (65 ft) |
| Video |
|
| Resolution |
4MP 2688 x 1512 (16:9) |
| Max. frame rate |
30 FPS |
| Image settings |
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| System |
|
| Processor |
Dual-core Arm® Cortex®-A7 based chip |
| Networking interface |
10/100 MbE RJ45 port |
| Max. power consumption |
4.2W |
| Power method |
PoE |
| Supported voltage range |
37–57V DC |
| Button |
Factory reset |
| Mounting |
Surface mount |
| Ambient operating temperature |
-20 to 40º C (-4 to 104º F) |
| Ambient operating humidity |
10 to 90% noncondensing |
| Certifications |
FCC, IC, CE |
| Software |
|
| Web application |
UniFi Protect |
| Mobile app |
UniFi Protect iOS™ and Android™ |
[/properties]
[specifications]
| Mechanical |
|
| Dimensions |
Ø63.6 x 68.2 mm (Ø2.5 x 2.7") |
| Weight |
175 g (6.2 oz) |
| Enclosure material |
Aluminum alloy, polycarbonate |
| Mount material |
Stainless steel |
| Resistance |
IK06 |
| Power method |
PoE |
| Supported voltage range |
37—57V DC |
| Output power |
5V DC, 1A per port |
| Display |
0.96" color display |
| Button |
Factory reset |
| Mounting |
Wall, ceiling mount |
| Ambient operating temperature |
-20 to 40° C (-4 to 104° F) |
| Ambient operating humidity |
10 to 90% noncondensing |
| Certifications |
FCC, IC, CE |
| Audio |
|
| Microphone |
Supports optional AI Theta Audio module for two-way audio (sold separately) |
| Speaker |
Supports optional AI Theta Audio module for two-way audio (Sold separately) |
| Software |
|
| UniFi OS application |
UniFi Protect |
| Mobile app |
UniFi Protect iOS™ and Android™ |
[/specifications]

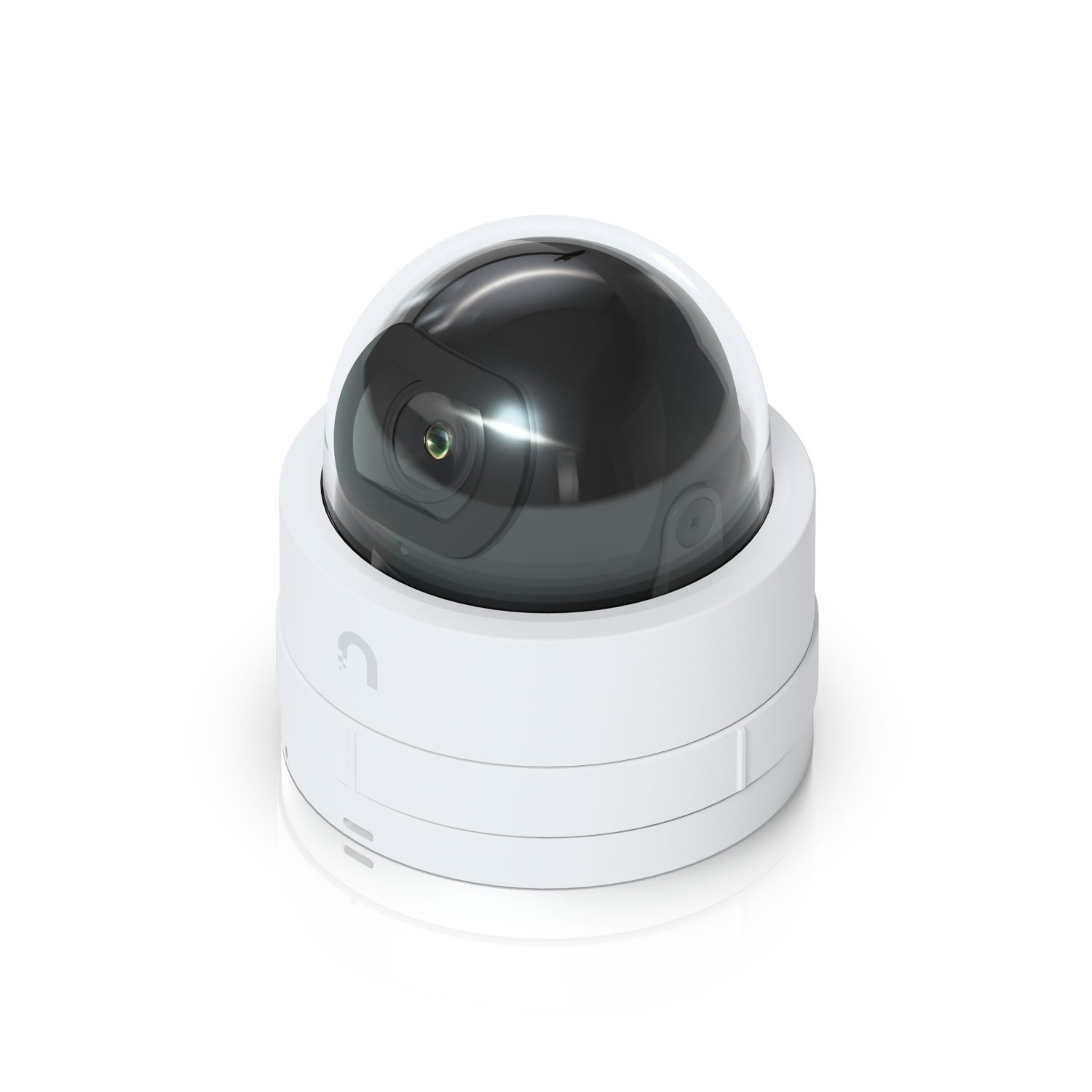

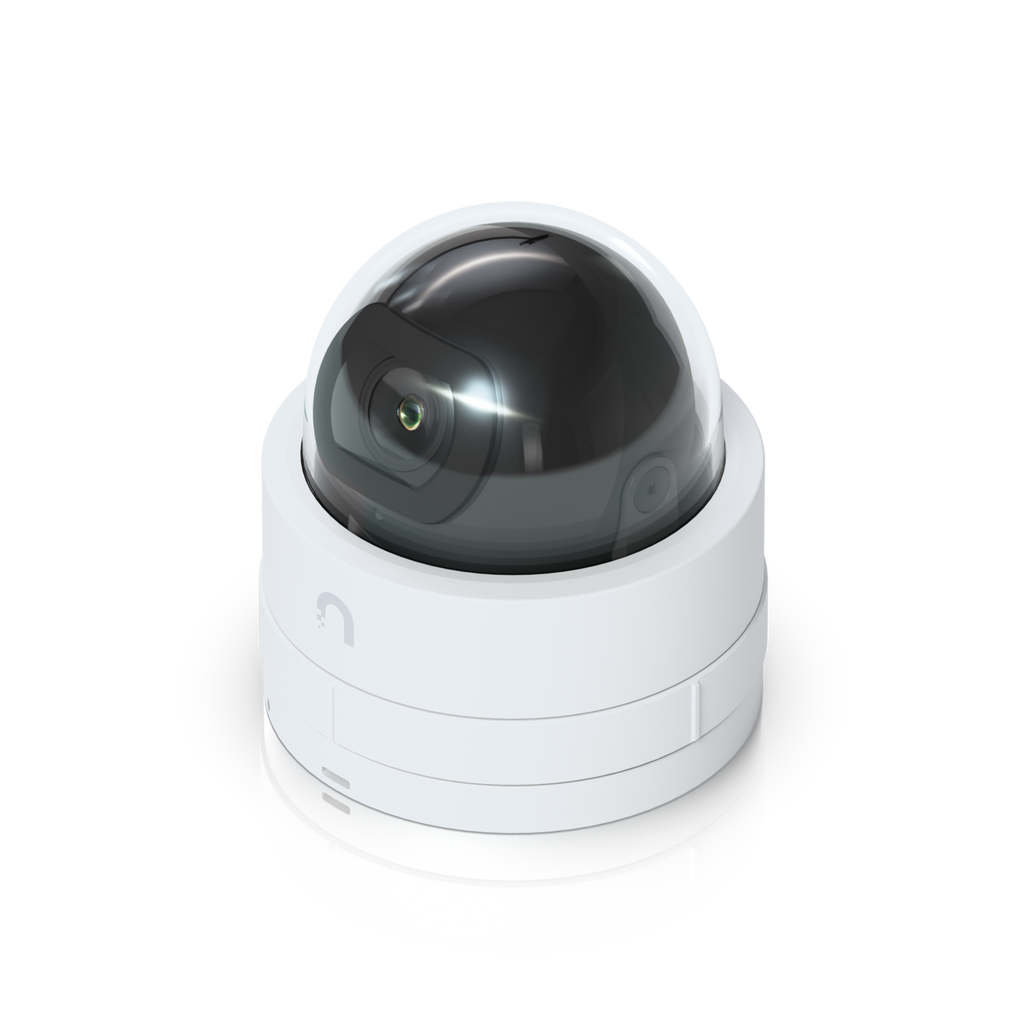

UniFi G5 Dome Ultra (UVC-G5-Dome-Ultra)
The UniFi G5 Dome Ultra is a powerful 4MP dome camera designed for high-definition surveillance in various environments. With 2K resolution and 30 fps video capture, this camera delivers crystal-clear images in both day and night conditions. Its built-in IR LED provides up to 65 feet of night vision, making it ideal for 24/7 monitoring. The camera is also IK06-rated for vandal resistance and can be ceiling or wall-mounted, ensuring flexible installation options. Powered via PoE, the G5 Dome Ultra is an excellent choice for secure and reliable surveillance.
Key Features:
-
2K Resolution (4MP): Offers 2688 x 1512 resolution for clear, high-quality images.
-
30 fps Frame Rate: Provides smooth video capture for reliable surveillance.
-
65 ft IR Night Vision: Built-in IR LED illumination enables monitoring in complete darkness up to 65 feet.
-
IK06 Vandal Resistance: Rugged design for resistance to impact and vandalism.
-
Flexible Mounting Options: Can be ceiling or wall-mounted to suit various installation needs.
-
PoE Powered: Powered by Power over Ethernet (PoE) for simplified installation.
Technical Specifications:
-
Sensor: 1/2.4" CMOS
-
Lens: Fixed focal length
-
View Angle: H: 102.4°, V: 54.9°, D: 120.6°
-
IR Distance: 20 m (65 ft)
-
Power Consumption: 4.2W
-
Power Method: PoE (37-57V DC)
-
Operating Temperature: -20 to 40°C (-4 to 104°F)
-
Weight: 175 g (0.4 lbs)
-
Dimensions: 63.6 x 68.2 mm (2.5 x 2.7 inches)
